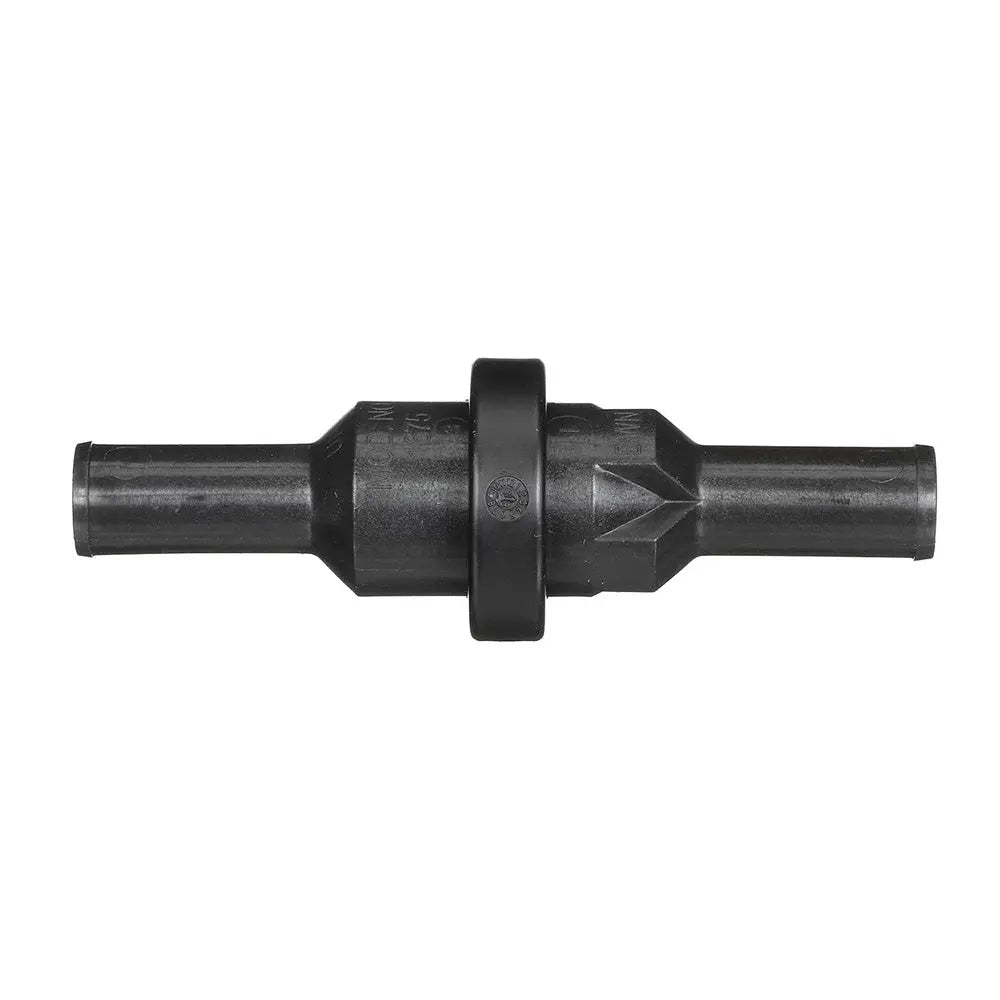

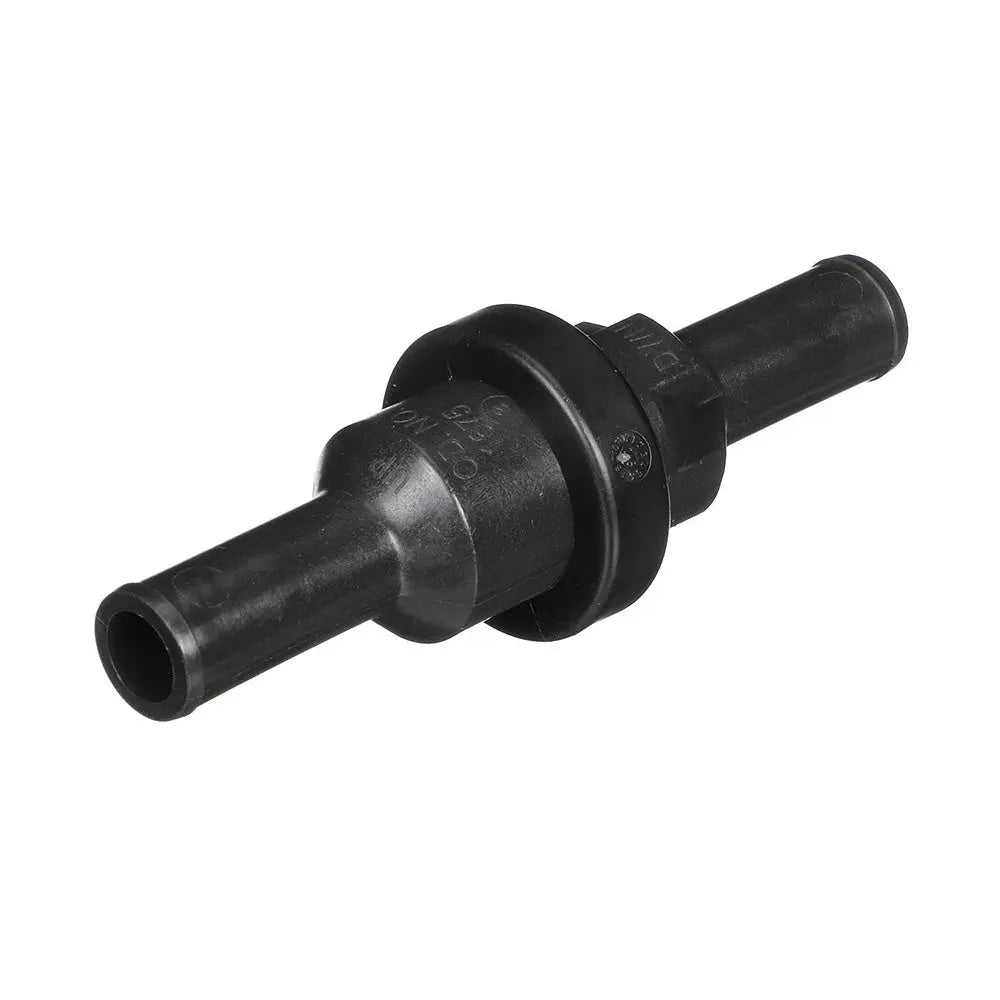

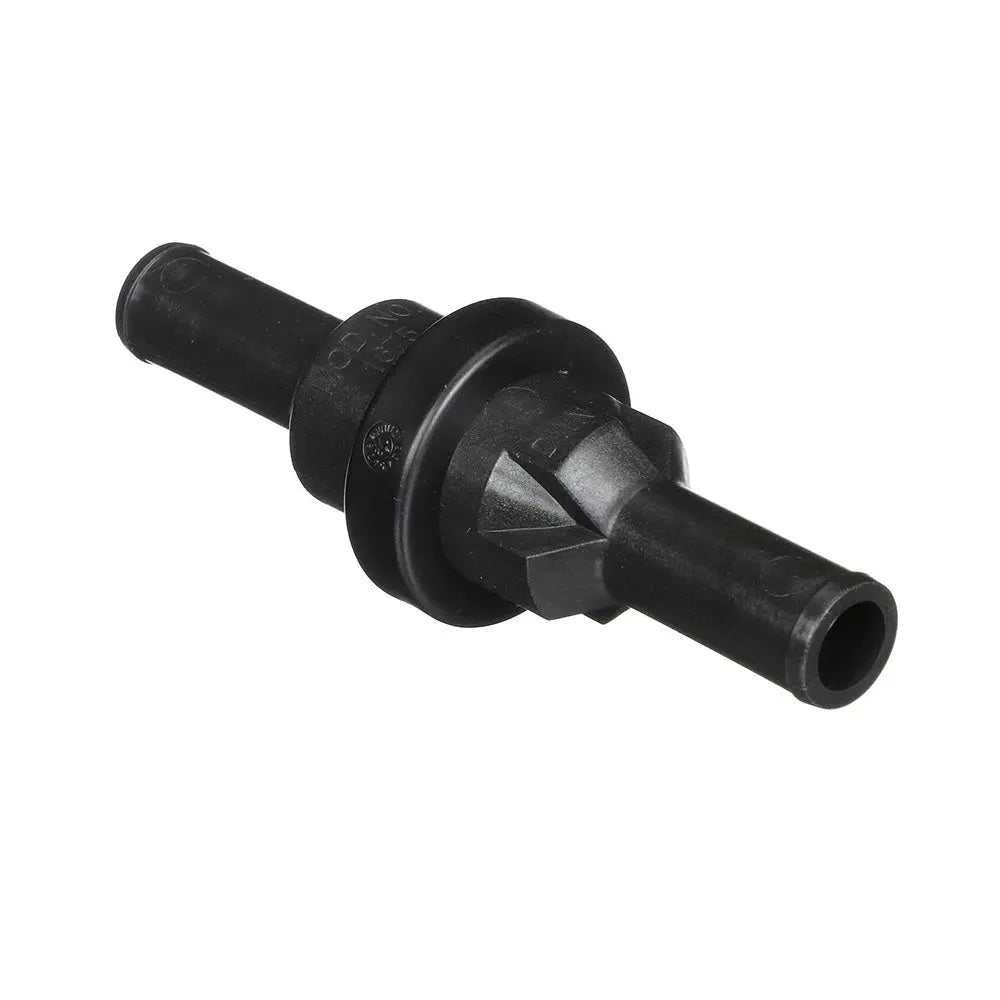

Attwood Marine In-Line Fuel Overflow Protector Part 1675-6 for Safe Fuel Venting

In-Line Fuel Overflow Protector

The fuel vent line surge protector helps avoid refueling spills because the surge-free line causes automatic fuel nozzles to shut off as the tank fills.

With non-automatic nozzles, the surge protector causes a gurgling sound to indicate that the tank is full.

Incorporates a ball-style check valve with internal baffling.

Features:

• Meets ABYC Standard H-24
• Install in-line with traditional tank vent systems that use standard 5/8 ID vent hose
• Compact size and operates in any orientation within 45 of vertical
• Withstands oil, gas, alcohol-blended fuels

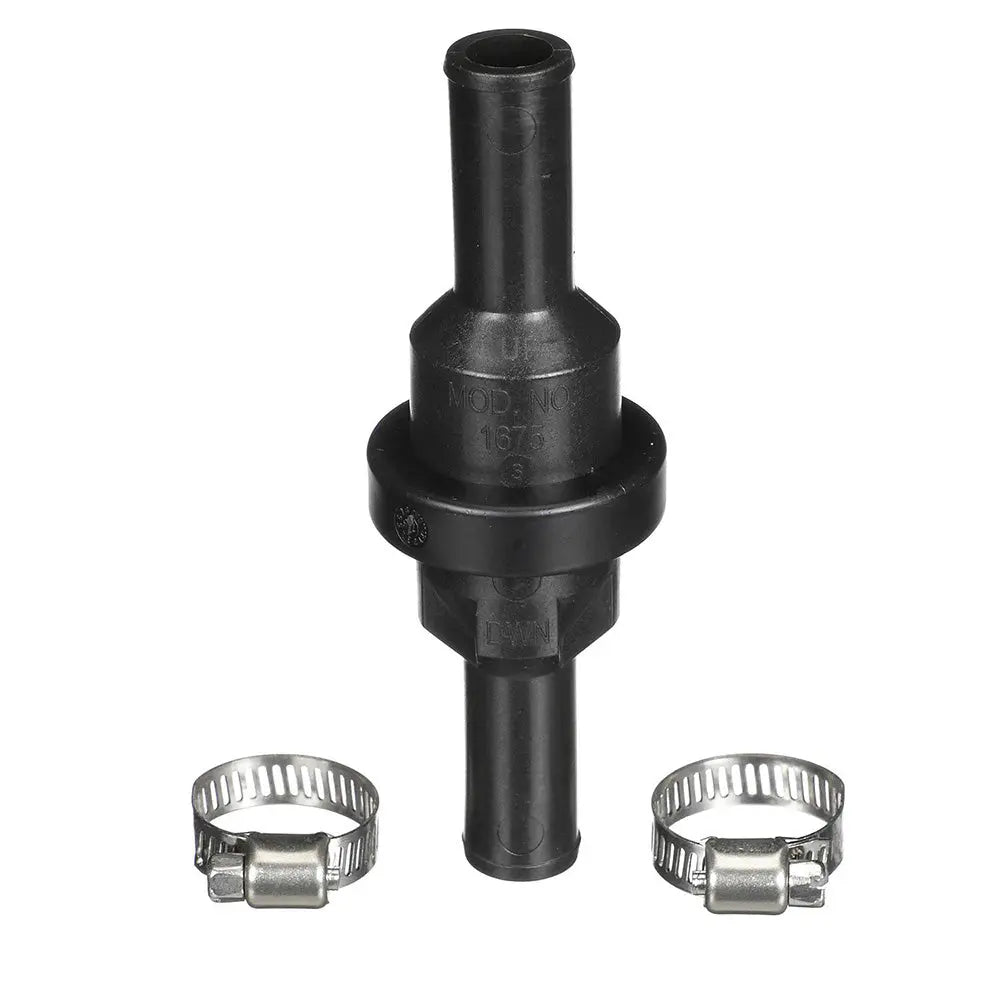

• Includes 2 hose clamps for installation in the vent hose

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Attwood Marine In-Line Fuel Overflow Protector Part 1675-6 is designed to prevent fuel spills during refueling by automatically shutting off fuel nozzles as the tank reaches capacity. Its surge-free line causes automatic shutoff with automatic nozzles and produces an audible gurgling sound with non-automatic nozzles to indicate that the tank is full, ensuring safe and efficient fueling. Incorporating a ball-style check valve with internal baffling, this device effectively manages fuel venting while preventing overflow. It is engineered to meet ABYC Standard H-24, making it suitable for marine applications and compliant with safety standards. The compact design allows installation in-line with traditional tank vent systems using standard 5/8 inch ID vent hoses and can operate in any orientation within 45 degrees of vertical, providing flexibility during installation. Constructed from durable materials that withstand exposure to oil, gasoline, and alcohol-blended fuels, this overflow protector offers reliable performance in demanding environments. The package includes two hose clamps to facilitate secure installation in the vent hose, ensuring a tight fit and preventing leaks. Proper venting is essential for safe fueling practices and maintaining fuel system integrity, and the Attwood Marine overflow protector offers an effective solution for boat owners and marine professionals alike. Please note that this product may expose users to chemicals known to cause reproductive harm; refer to P65Warnings.ca.gov for more information.

Features:

• Meets ABYC Standard H-24 for marine safety

• Installs inline with standard 5/8 inch ID vent hoses

• Operates in any orientation within 45 degrees of vertical

• Constructed to withstand oil, gasoline, and alcohol-blended fuels

• Includes two hose clamps for secure installation
