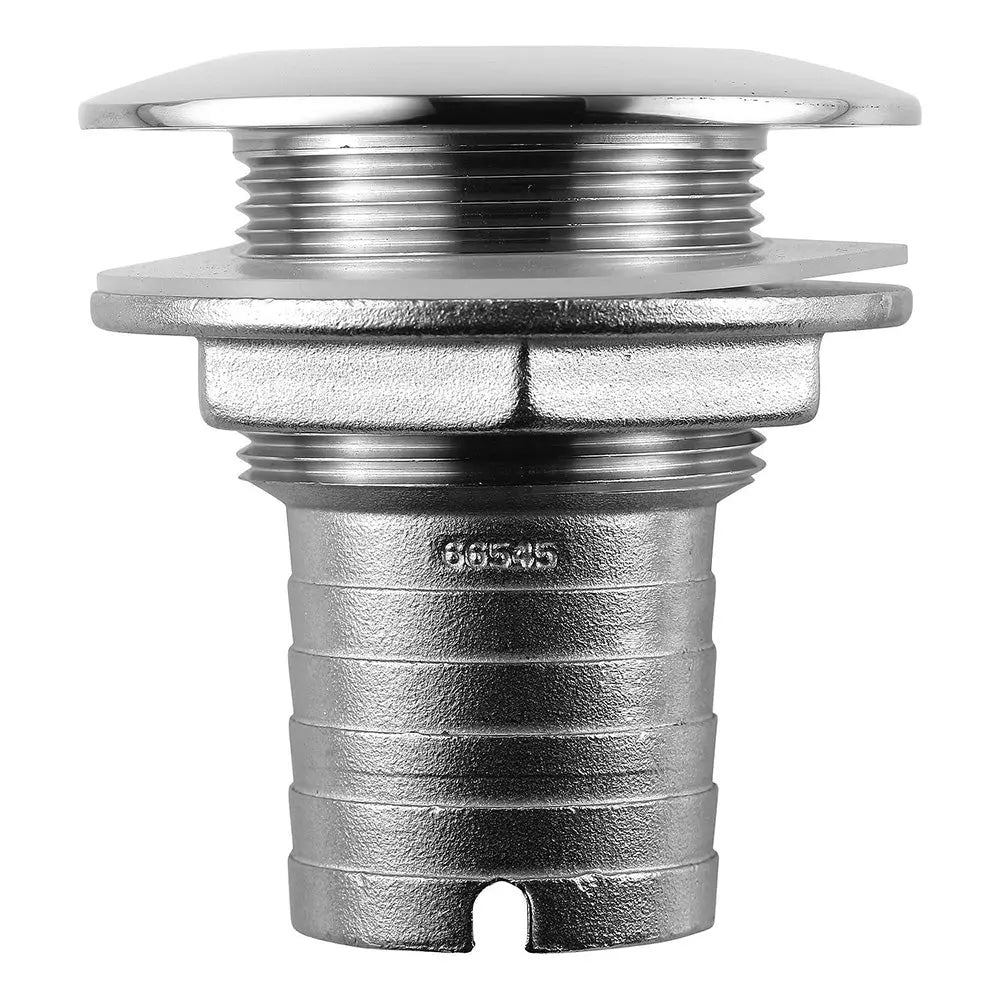

Attwood Marine Stainless Steel Thru-Hull Short Straight Barbed Fitting - 1-1/2 Inch Inner Diameter

Stainless Steel Thru-Hull Short Straight Barbed - 1-1/2" Inner Diameter

Polish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat

Rugged Stainless Construction:

• Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
• All visible areas are polished to a mirror finish, then passivate each part for additional protection
• Thick steel sidewalls withstand continual stress and hose flexing

Faster, Simpler Installation:

• Each Thru-Hull is available with a new silicone gasket
• A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
• All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
• The barbed tail ends provide plenty of room to hold multiple clamps

Stainless Steel Straight Thru-Hulls, Barbed

• Short Thread is a more compact size, which allows installation near corners and in confined areas

Specifications:

• Hose size: (inch) 1-1/2" inner diameter
• Flange Diameter: (inch) 3"
• Thread O.D. (outside diameter): (inch) 1-7/8"
• Thread Length: (inch) 1-1/4"
• Barb Length: (inch) 1-1/2"
• Total Length: (inch) 3-1/8"
• Install Hole Saw Size: (inch) 2"
• Thread NPSM: (inch) 1-1/2"
• Max Hull Thickness: (inch) 5/8"

*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only

Upgrade your boat's plumbing system with the Attwood Marine Stainless Steel Thru-Hull Short Straight Barbed Fitting, designed for durability and ease of installation. Crafted from certified Enhanced 316 stainless steel, this fitting offers exceptional strength and lifetime corrosion resistance, making it ideal for marine environments where longevity is essential. The polished mirror finish on all visible surfaces not only enhances the aesthetic appeal but also provides an added layer of passivation for increased protection against corrosion and wear. Its robust construction features thick steel sidewalls capable of withstanding continual stress and hose flexing, ensuring reliable performance over many years of use. The shorter thread size allows for installation in tight spaces and near corners, providing versatility for various boat configurations. This fitting is equipped with a silicone gasket for a secure, leak-free seal and a channel beneath the flange designed to hold a bead of sealant, simplifying the installation process and reducing potential leak points. The inclusion of wrench flats or an end notch enables a single installer to tighten all connections from inside the hull efficiently. The barbed tail ends offer ample room for multiple clamps, ensuring a secure fit for hoses. Suitable for applications with a maximum hull thickness of 5/8 inch, this thru-hull fitting is intended for installation above the waterline to ensure optimal performance and safety. Overall, the Attwood Marine Stainless Steel Thru-Hull Short Straight Barbed Fitting combines rugged construction with practical features to provide a reliable, long-lasting connection for your marine plumbing system.

Features:

• Constructed from certified Enhanced 316 stainless steel for strength and corrosion resistance

• Mirror-polished finish with passivation for added durability

• Thick steel sidewalls withstand stress and hose flexing

• Includes silicone gasket for easy, leak-proof installation

• Channel beneath flange holds bead of sealant for trouble-free sealing

• Wrench flats or end notch for easy tightening from inside the hull

• Barbed tail ends accommodate multiple hose clamps

• Short thread size ideal for confined spaces and corner installations

• Suitable for applications with up to 5/8 inch hull thickness

• Designed for installation above the water line for optimal performance
