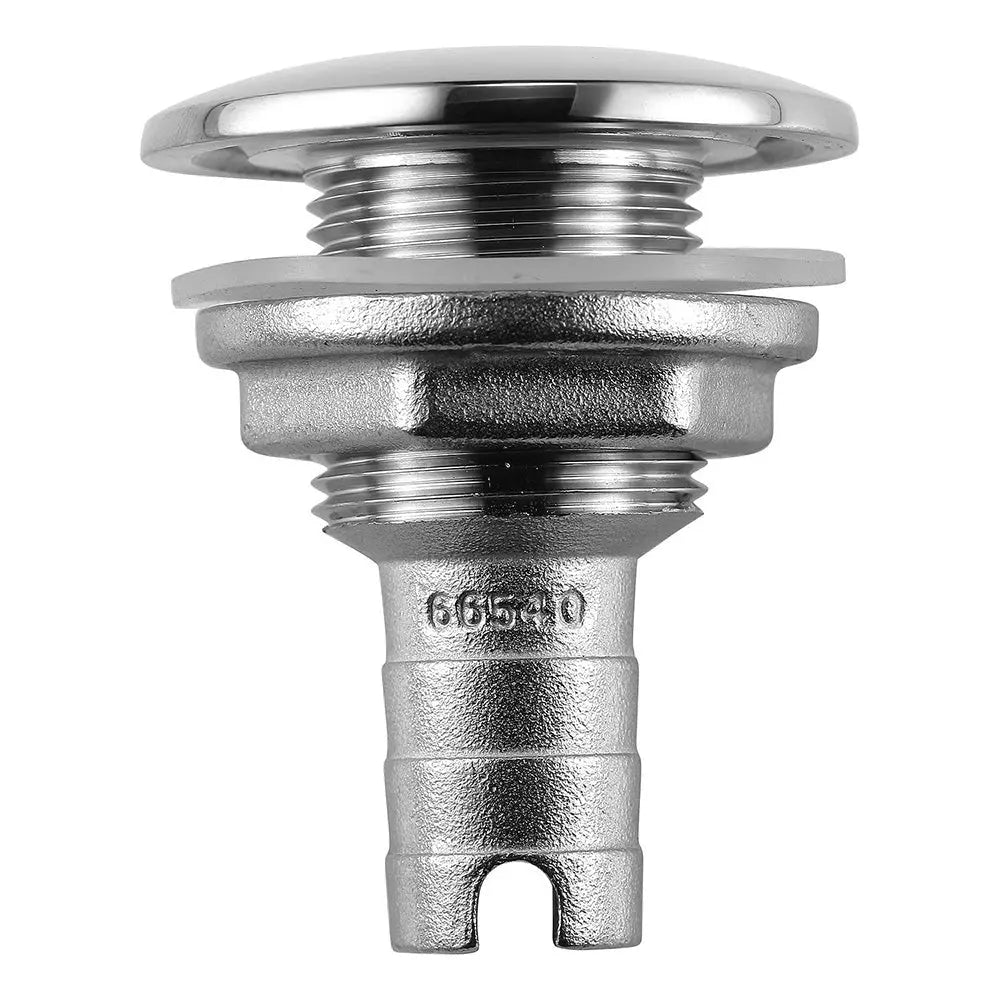

Attwood Marine Stainless Steel Thru-Hull Short Straight Barbed Fitting 3/4 Inch Inner Diameter

Stainless Steel Thru-Hull Short Straight Barbed - 3/4" Inner Diameter

Polish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat

Rugged Stainless Construction:

• Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
• All visible areas are polished to a mirror finish, then passivate each part for additional protection
• Thick steel sidewalls withstand continual stress and hose flexing

Faster, Simpler Installation:

• Each Thru-Hull is available with a new silicone gasket
• A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
• All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
• The barbed tail ends provide plenty of room to hold multiple clamps

Stainless Steel Straight Thru-Hulls, Barbed

• Short Thread is a more compact size, which allows installation near corners and in confined areas

Specifications:

• Hose size: (inch) 3/4" inner diameter
• Flange Diameter: (inch) 1-7/8"
• Thread O.D. (outside diameter): (inch) 1"
• Thread Length: (inch) 1"
• Barb Length: (inch) 1"
• Total Length: (inch) 2-1/2"
• Install Hole Saw Size: (inch) 1-1/8"
• Thread NPSM: (inch) 3/4"
• Max Hull Thickness: (inch) 5/8"

*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only

Upgrade your boat's plumbing system with the Attwood Marine Stainless Steel Thru-Hull Short Straight Barbed Fitting. Crafted from premium certified Enhanced 316 stainless steel, this fitting offers exceptional strength and corrosion resistance, ensuring durability for the lifetime of your vessel. The mirror-polished finish not only enhances the aesthetic appeal but also provides an additional layer of protection through passivation, making it ideal for marine environments where longevity matters. The thick steel sidewalls are designed to withstand continuous stress and hose flexing, ensuring a secure and reliable connection over time. Designed for above-waterline installation, this fitting features a short thread size that allows for installation in tight spaces near corners or confined areas, making it versatile for various boat configurations. The 3/4-inch inner diameter hose connection, along with a 1-inch flange diameter, provides a robust and watertight seal. The threaded end has a 1-inch outside diameter and a 1-inch thread length, facilitating straightforward installation with common tools. The barbed tail end offers ample room for multiple clamps, ensuring a secure fit and preventing leaks. Each fitting comes with a silicone gasket for a quick, trouble-free seal, and a channel under the flange holds sealant for extra security. Wrench flats or an end notch on the fitting provide a gripping surface for easy tightening from inside the hull, simplifying installation. These fittings are engineered specifically for marine applications, providing reliable performance and long-lasting durability in demanding watercraft environments. Proper installation and maintenance will ensure a leak-free connection, contributing to the safety and efficiency of your vessel's plumbing system.

Features:

• Constructed from certified Enhanced 316 stainless steel for strength and corrosion resistance

• Mirror-polished finish with passivation for enhanced protection

• Thick sidewalls designed to withstand stress and hose flexing

• Includes silicone gasket for quick and reliable sealing

• Channel under flange for sealant application, ensuring a trouble-free seal

• Wrench flats or end notch for easy tightening from inside the hull

• Barbed tail end allows for multiple clamps for secure hose connection

• Compact short thread size suitable for tight installation spaces

• Designed specifically for installation above the water line
