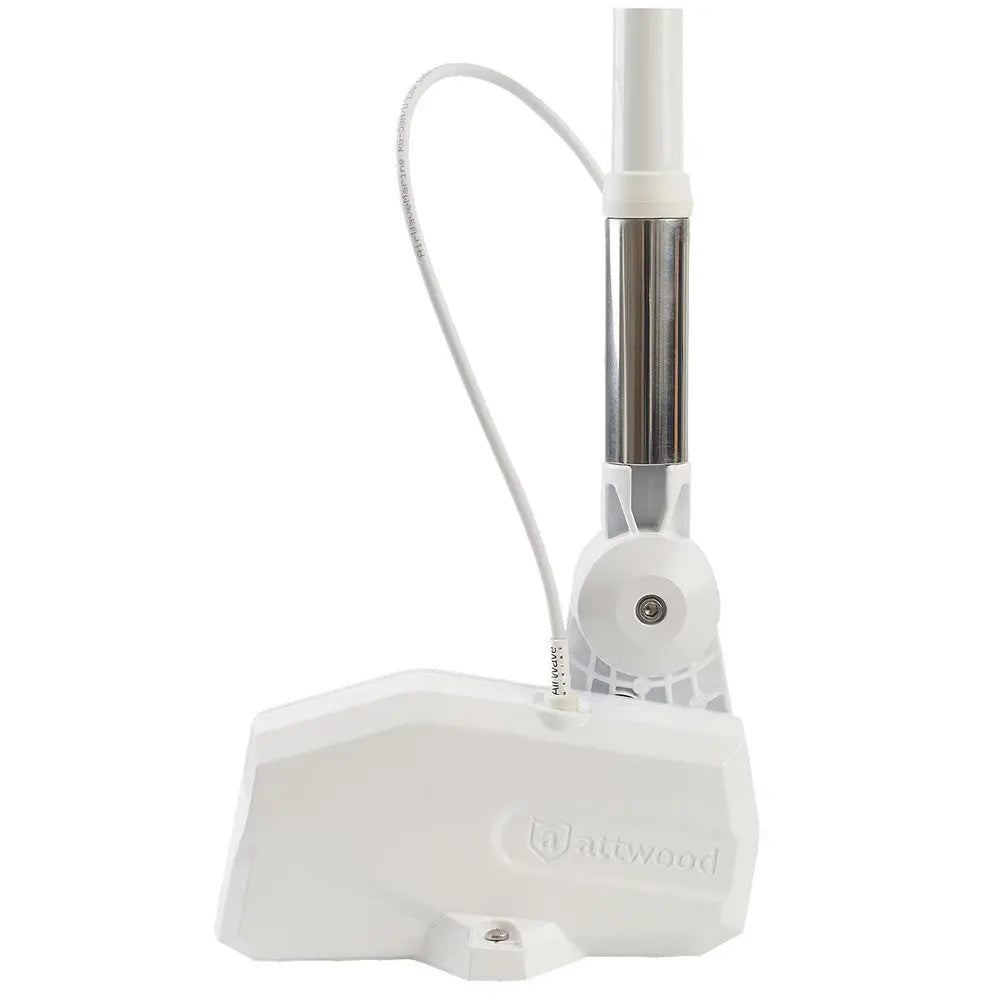

Attwood PowerBase Antenna - White Powered Fold-Down Antenna Base for Marine VHF Antennas

PowerBase Antenna - White Powered Fold-Down Antenna Base

The intelligent, automated folding Antenna base. PowerBase easily stows and deploys lights and antennas with the push of a button.

PowerBase is the only intelligent light/antenna with object detection technology:

• SafeGuard Breakaway: In the event of an impact, the powerbase will safely return to a stowed position preventing potential damage to the fiberglass top
• SmartDeploy Backdrive: In the event of a blocked deployment, PowerBase senses an obstruction and reverses the light/antenna back to its starting position

PowerBase is designed for worry-free installation and operation from the assembly line to the marina:

• Standardized mounting patterns allow for upgradeability
• Intuitive control without switch limitations

PowerBase is compatible/built with the leading industry equipment:

• For use with antennas up to 8 ft. In length (Powerbase Antenna)

Compatibility:

• Compatible with all leading 1-1/4" threaded VHF Antennas (8ft or less in length)

Required for installation (not included):

• 7/32 3/4 Drill Bits
• #2 Phillips Driver
• Marine Grade Sealant
• PTFE Lubricant
• 2x 1-1/4 Fender Washers and 10-24
• Nuts (If Through-Hole Mounting)
• 2-Position SPST Switch (with LED Backlight)
• PowerBase Antenna not included

The Attwood PowerBase Antenna (Part Number 6100-AT-7) is an innovative, intelligent folding antenna base designed for seamless deployment and stowage of marine antennas up to 8 feet in length. Featuring a white powered fold-down design, it allows boaters to operate the antenna with the push of a button, simplifying setup and storage. Built for durability and ease of use, the PowerBase integrates advanced object detection technology to enhance safety and prevent damage during operation. Its SafeGuard Breakaway feature automatically returns the antenna to a stowed position in case of impact, protecting the fiberglass top of your vessel. Additionally, the SmartDeploy Backdrive senses obstructions during deployment and reverses the antenna if necessary, ensuring smooth, trouble-free operation in various marine environments.

Features:

• Automated fold-down operation for quick deployment and stowage

• Object detection technology with SafeGuard Breakaway to prevent damage from impacts

• SmartDeploy Backdrive for obstruction detection and reversal during deployment

• Standardized mounting patterns for easy upgradeability and installation

• Compatible with all leading 1-1/4 inch threaded VHF antennas up to 8 feet long

• Designed for marine environments with durable construction and easy operation
