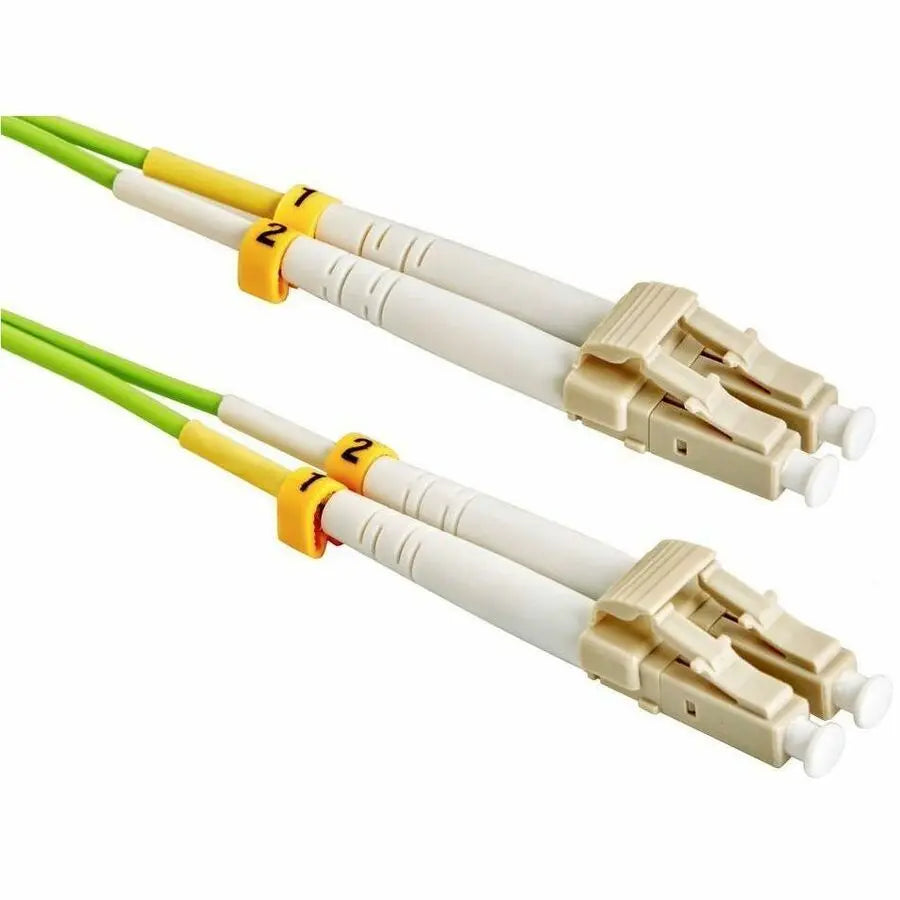

Axiom LC/LC Wide Band Multimode Duplex OM5 Fiber Cable 9m - TAA Compliant

Axiom LC/LC Wide Band Multimode Duplex OM5 50/125 Fiber Cable 9m - TAA Compliant

The Axiom LC/LC Wide Band Multimode Duplex OM5 Fiber Cable offers high-performance connectivity for demanding networking environments. Designed with a lime green jacket, this 9-meter cable features a PVC (OFNR) rated aqua outer jacket with durable ceramic ferrules on each LC connector end, ensuring reliable signal transmission. Its wide band OM5 technology supports advanced data transfer rates, making it suitable for high-speed data centers and enterprise networks.

With capabilities of transmitting 40 Gigabit Ethernet up to 440 meters and 100 Gigabit Ethernet up to 150 meters using an 850nm VCSEL source, this cable is ideal for modern high-bandwidth applications. The duplex design facilitates seamless bi-directional data flow, while duplex clips on both sides keep the connections secure and organized. The cable's construction includes ceramic ferrules for precise alignment and minimal insertion loss, ensuring optimal performance over its lifespan.

Built to withstand rigorous conditions, the cable offers a long-term tensile strength of 150N and crush resistance of 200N per 100mm segment. It operates efficiently within a temperature range of -20°C to +70°C, making it suitable for varied environmental conditions. Its typical return loss exceeds 20dB, and insertion loss remains low at approximately 0.3dB, ensuring minimal signal degradation. This TAA-compliant, environmentally friendly cable is backed by a lifetime warranty and includes free technical support, guaranteeing dependable, high-quality network connectivity for your installation needs.

Features:

• Wide Band Multimode Fiber Optic Duplex Cable 50/125, OM5, Lime Green

• 40 Gigabit Transfers Up To 440 Meters Using 850nm VCSEL Source

• 100 Gigabit Transfers Up To 150 Meters Using 850nm VCSEL Source

• (2) LC Ultra Physical Contact (UPC) Connectors on Each Side

• All Connectors Have Ceramic Ferrules

• Duplex Clips Both Sides

• PVC (OFNR) Rated Aqua Jacket With Corning Glass

• Jacket OD: 2.0mm

• Typical Return Loss: ≥20 dB

• Typical Insertion Loss: ≤0.3 dB

• Long Term Tensile Strength: 150N

• Long Term Crush Resistance: 200N/100mm

• Operating Temperature: -20°C to +70°C

• Color: Lime Green
