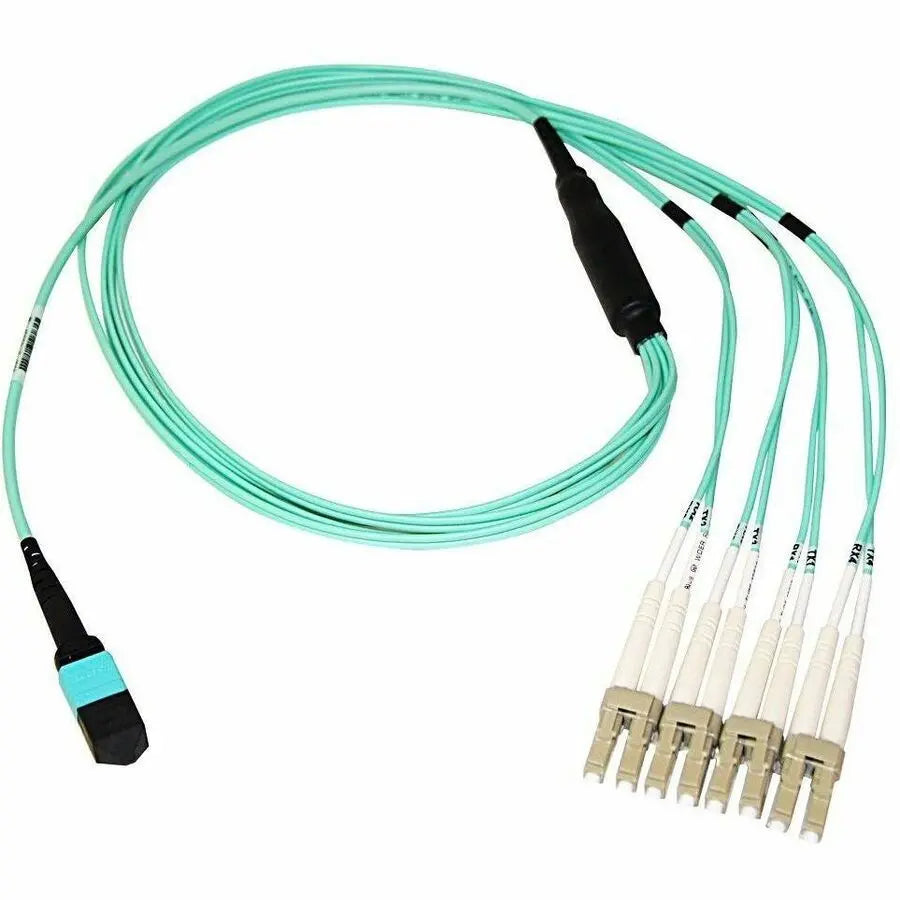

Axiom Memory Solutions MPO Female to 4 LC Multimode OM3 Fiber Breakout Cable 20m - TAA Compliant

Axiom MPO Female to 4 LC Multimode OM3 50/125 Fiber Breakout Cable 20m - TAA Compliant

The Axiom Memory Solutions MPO Female to 4 LC Multimode OM3 fiber breakout cable provides a reliable and high-performance connectivity solution for modern network infrastructures. Designed with efficiency and durability in mind, this 20-meter cable features eight fibers terminated with MPO female connectors on one end and four LC duplex connectors on the other, making it ideal for data centers, server rooms, and high-speed network deployments. The use of premium ceramic ferrules ensures optimal signal transmission and minimal insertion loss, enhancing overall network performance.

The cable boasts a plenum-rated aqua jacket with Corning glass, offering safety compliance for plenum spaces and excellent environmental resistance. Its jacket diameter is compact, with 3.0mm for MPO connectors and 2.0mm for LC connectors, facilitating neat and organized installations. The cable's high return loss ratings—20dB for MPO and 30dB for LC—indicate reduced signal reflection, ensuring cleaner data transmission. Its robust construction provides a long-term tensile strength of 150N and crush resistance of 200N per 100mm, making it suitable for demanding environments. Operating effectively within a temperature range from -40°C to +70°C, it guarantees performance even in challenging conditions.

Manufactured by Axiom Memory Solutions, this fiber optic cable is TAA compliant and environmentally friendly, supporting sustainable networking initiatives. The all-metal connectors with ceramic ferrules contribute to longevity and consistent performance, while duplex clips on the LC side facilitate secure connections. Backed by a lifetime warranty and comprehensive technical support, this product offers a dependable choice for upgrading or expanding your network infrastructure with high-quality fiber optic connectivity. Whether deploying new systems or enhancing existing setups, the Axiom MPO to LC fiber breakout cable ensures fast, reliable, and future-proof network performance.

Features:

• 8 fiber - to 4 LC Duplex Fiber Optic Cable 50/125, OM3, Aqua

• 8 Fiber MTP/MPO (Female) and (4) LC Duplex Connectors on one side

• All connectors feature ceramic ferrules for durability and performance

• Duplex clips on LC side for secure connections

• Plenum (OFNP) rated aqua jacket with Corning glass for safety and high performance

• Jacket outer diameter: 3.0mm for MPO, 2.0mm for LC

• Minimum typical return loss: MTP=20dB, LC=30dB

• Typical insertion loss: MPO approximately 0.16dB, LC approximately 0.35dB

• Long-term tensile strength rated at 150N for durability

• Long-term crush resistance rated at 200N/100mm

• Operational temperature range from -40°C to +70°C

• Color: Aqua for easy identification and compliance

• Environmentally friendly and TAA compliant for professional installations
