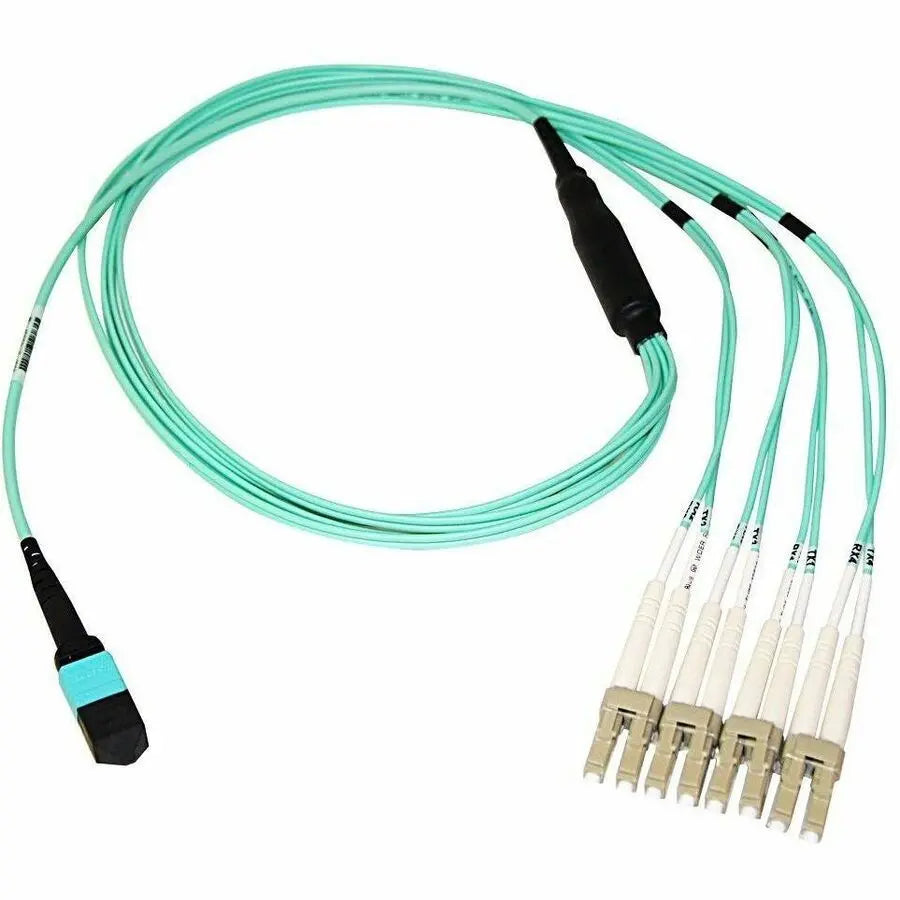

Axiom Memory Solutions MPO Female to 4 LC Multimode OM4 Fiber Breakout Cable, 8 meters - TAA Compliant

Axiom MPO Female to 4 LC Multimode OM4 50/125 Fiber Breakout Cable 8m - TAA Compliant

The Axiom MPO Female to 4 LC Multimode OM4 Fiber Breakout Cable is designed for high-performance networking applications requiring reliable and efficient fiber connectivity. This 8-meter cable features a plenum-rated aqua jacket, ensuring safety and compliance for installations in various environments. It incorporates eight fibers with MTP/MPO (Female) connectors on one side and four LC duplex connectors on the other, facilitating streamlined fiber terminations in data centers and enterprise networks. All connectors are equipped with ceramic ferrules, which provide precise alignment and durability for repeated connections. The duplex clips on the LC side enhance cable management and installation ease, while the OM4 multimode fibers support high bandwidth and low attenuation over long distances. The cable's construction adheres to industry standards, with a jacket diameter of 3.0mm for MPO connectors and 2.0mm for LC connectors, maintaining flexibility and robustness in tight spaces.

Features:

• 8 fiber - to 4 LC Duplex Fiber Optic Cable 50/125, OM4, Aqua

• 8 Fiber MTP/MPO (Female) and (4) LC Duplex Connectors One Side

• All Connectors Have Ceramic Ferrules for durability and precise alignment

• Duplex Clips On LC Side for secure and organized connections

• Plenum (OFNP) Rated Aqua Jacket with Corning Glass for safety and performance

• Jacket OD: 3.0mm (MPO) 2.0mm (LC), ensuring flexibility and ease of installation

• Typical Return Loss: MTP=20dB, LC=30dB for minimal signal loss

• Typical Insertion Loss: MPO=0.16dB, LC=0.35dB for efficient data transmission

• Long Term Tensile Strength: 150N to withstand installation stresses

• Long Term Crush Resistance: 200N/100mm for durability under pressure

• Operating Temperature Range: -40°C to +70°C for versatile deployment

• Color: Aqua for easy identification and organization
