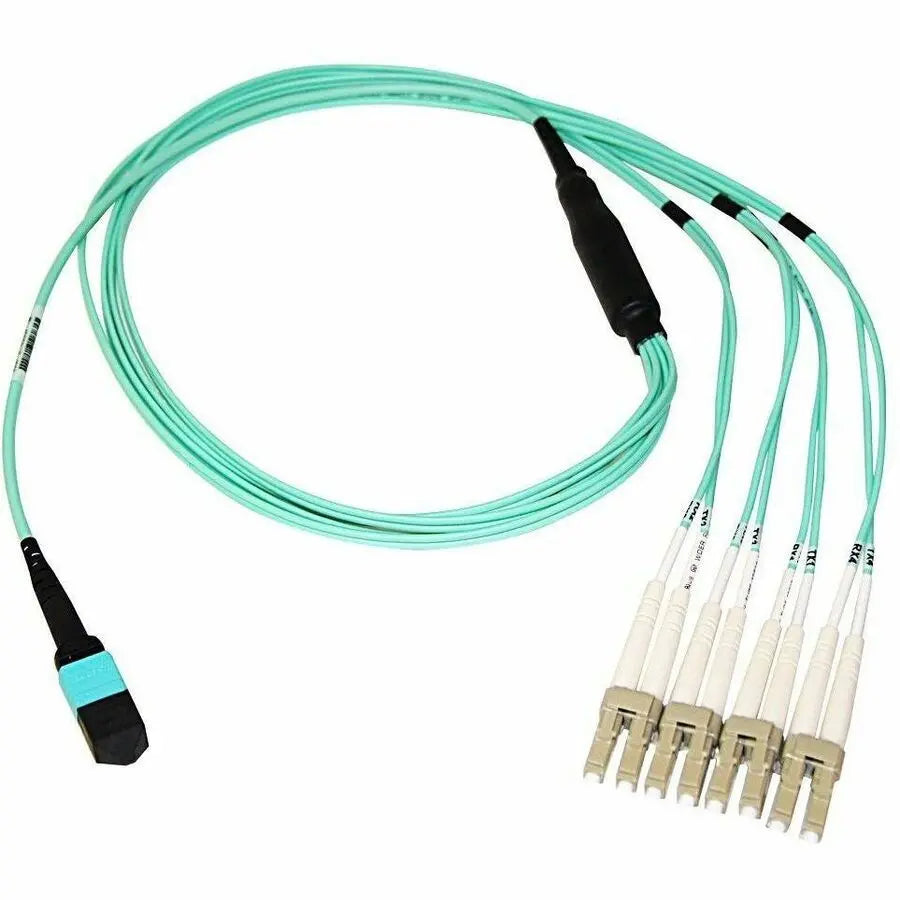

Axiom Memory Solutions MPO Female to 4 LC OM4 Multimode Fiber Breakout Cable, 25 meters - TAA Compliant

Axiom MPO Female to 4 LC Multimode OM4 50/125 Fiber Breakout Cable 25m - TAA Compliant

The Axiom Memory Solutions MPO Female to 4 LC OM4 Multimode Fiber Breakout Cable is engineered for high-performance networking environments requiring reliable, high-speed connections. This 25-meter cable features eight fibers with a plenum-rated aqua jacket, ensuring safety and compliance in various installation settings. Constructed with premium ceramic ferrules on all connectors, this cable provides optimal signal integrity and durability for demanding applications. Its design includes a robust MPO (MTP) connector on one end and four LC duplex connectors on the other, making it suitable for data centers, enterprise networks, and fiber optic backbone deployments. The cable's construction with Corning glass ensures minimal signal loss, with typical insertion loss values of 0.16 dB for MPO and 0.35 dB for LC connectors, and return loss exceeding 20 dB for MPO and 30 dB for LC connectors, which supports high bandwidth and low latency requirements. The cable's rugged design features a 3.0mm jacket for MPO and a 2.0mm jacket for LC connectors, providing flexibility and ease of installation. Operating efficiently across a wide temperature range from -40°C to +70°C, this cable is suitable for various environments and ensures long-term performance. Its environmentally friendly and TAA-compliant construction makes it an ideal choice for government and enterprise projects seeking sustainable networking solutions. Backed by a lifetime warranty and complemented by free technical support, the Axiom MPO to LC fiber breakout cable offers a reliable, high-quality connectivity solution for modern fiber optic networks.

Features:

• 8 fiber - to 4 LC Duplex Fiber Optic Cable 50/125, OM4, Aqua

• 8 Fiber MTP/MPO (Female) and (4) LC Duplex Connectors One Side

• All Connectors Have Ceramic Ferrules

• Duplex Clips On LC Side

• Plenum (OFNP) Rated Aqua Jacket With Corning Glass

• Jacket OD: 3.0mm (MPO) 2.0mm (LC)

• Typical Return Loss, min.: MTP=20dB, LC=30dB

• Typical Insertion Loss (MPO): 0.16dB

• Typical Insertion Loss (LC): 0.35dB

• Long Term Tensile Strength: 150n

• Long Term Crush Resistance: 200n/100mm

• Operating Temperature: -40°C to +70°C

• Color: Aqua
