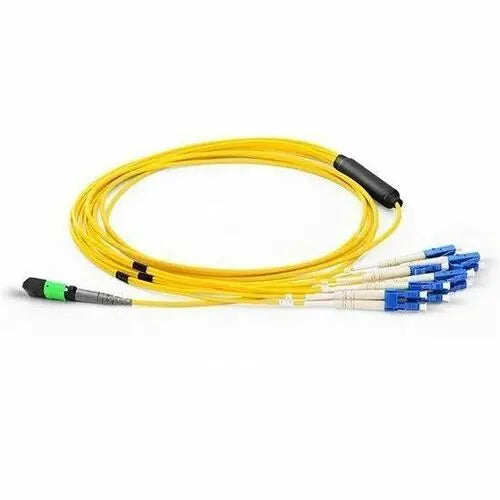

Axiom Memory Solutions MPO Female to 4 LC Singlemode 9/125 Fiber Breakout Cable 10m - TAA Compliant

Axiom MPO Female to 4 LC Singlemode 9/125 Fiber Breakout Cable 10m - TAA Compliant

The Axiom Memory Solutions MPO Female to 4 LC Singlemode 9/125 Fiber Breakout Cable provides a reliable and high-performance connectivity solution for your networking infrastructure. Designed with efficiency and durability in mind, this 10-meter cable features an 8-fiber MTP/MPO connector on one end and four LC duplex connectors on the other, enabling seamless fiber optic connections in data centers and enterprise networks. Crafted with premium ceramic ferrules, all connectors ensure precise alignment and optimal signal transmission. The plenum-rated aqua jacket, made from environmentally friendly materials with a yellow color code, provides excellent insulation and safety in challenging environments. Its construction adheres to industry standards, supporting long-term performance with impressive tensile strength and crush resistance, enabling it to withstand demanding installation conditions. Operating reliably across temperatures from -40°C to +70°C, this cable is suitable for a wide range of applications, including high-speed data transfer, backbone connections, and fiber-optic cabling upgrades. The cable's low insertion loss and high return loss characteristics ensure minimal signal degradation, maintaining high data integrity and network efficiency. Backed by a lifetime warranty and supported by free technical assistance, the Axiom MPO to LC fiber breakout cable is a dependable choice for professionals seeking quality, compliance, and peace of mind in their fiber optic projects.

Features:

• 8 fiber - to 4 LC Duplex Fiber Optic Cable 9/125, Singlemode, Yellow

• 8 Fiber MTP/MPO (Female) and (4) LC Duplex Connectors One Side

• All Connectors Have Ceramic Ferrules

• Duplex Clips On LC Side

• Plenum (OFNP) Rated Aqua Jacket With Corning Glass

• Jacket OD: 3.0mm (MPO) 2.0mm (LC)

• Typical Return Loss: MTP=20dB, LC=30dB

• Typical Insertion Loss (MPO): 0.15dB

• Typical Insertion Loss (LC): 0.35dB

• Long Term Tensile Strength: 150N

• Long Term Crush Resistance: 200N/100mm

• Operating Temperature Range: -40°C to +70°C

• Product Color: Yellow

• Environmentally Friendly: Yes

• TAA Compliant: Yes

• Product Material: Ceramic

• Limited Warranty: Lifetime
