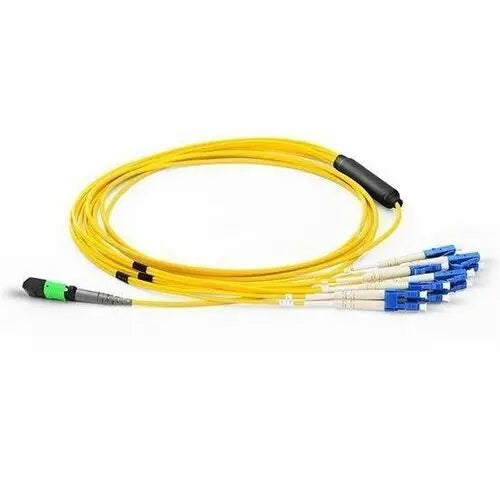

Axiom Memory Solutions MPO Female to 4 LC Singlemode 9/125 Fiber Breakout Cable 20m - TAA Compliant

Axiom MPO Female to 4 LC Singlemode 9/125 Fiber Breakout Cable 20m - TAA Compliant

The Axiom MPO Female to 4 LC Singlemode 9/125 Fiber Breakout Cable is designed for high-performance networking applications requiring reliable fiber connectivity. This 20-meter cable features eight fibers with an MPO female connector on one end and four LC duplex connectors on the other, making it suitable for data centers, enterprise networks, and telecommunications infrastructure. The cable’s construction incorporates premium components and advanced manufacturing technologies to ensure optimal performance and compliance with industry standards.
Constructed with ceramic ferrules on all connectors, this cable guarantees low insertion loss and high return loss, which are critical for maintaining signal integrity over long distances. The plenum-rated aqua jacket, made with environmentally friendly materials and featuring a durable outer sheath, provides excellent fire safety and ease of installation in complex cabling environments. The jacket’s outer diameter of 3.0mm for MPO and 2.0mm for LC connectors ensures compatibility with a wide range of cable management systems.
Designed for durability, the cable can withstand a long-term tensile strength of up to 150 newtons and crush resistance of 200 newtons per 100mm, ensuring reliable performance in demanding environments. Its operating temperature range from -40°C to +70°C allows for versatile deployment across various settings. The cable’s high-quality construction minimizes insertion loss to approximately 0.15dB for MPO and 0.35dB for LC connectors, ensuring efficient signal transmission. Additionally, the cable offers a minimum return loss of 20dB for MPO and 30dB for LC connectors, supporting high data integrity and network stability.
This fiber breakout cable is TAA compliant and environmentally friendly, meeting rigorous industry standards. Backed by a lifetime warranty and supported by free technical assistance from Axiom Memory Solutions, this product provides a reliable and cost-effective solution for your fiber optic networking needs. Whether upgrading existing infrastructure or deploying new systems, this cable ensures high performance, durability, and compliance for demanding network environments.

Features:

• 8 fiber - to 4 LC Duplex Fiber Optic Cable 9/125, Singlemode, Yellow

• 8 Fiber MTP/MPO (Female) and (4) LC Duplex Connectors One Side

• All Connectors Have Ceramic Ferrules

• Duplex Clips On LC Side

• Plenum (OFNP) Rated Aqua Jacket With Corning Glass

• Jacket OD: 3.0mm (MPO) 2.0mm (LC)

• Typical Return Loss, minimum: MTP=20dB, LC=30dB

• Typical Insertion Loss (MPO): 0.15dB

• Typical Insertion Loss (LC): 0.35dB

• Long Term Tensile Strength: 150N

• Long Term Crush Resistance: 200N/100mm

• Operating Temperature: -40°C to +70°C

• Color: Yellow
