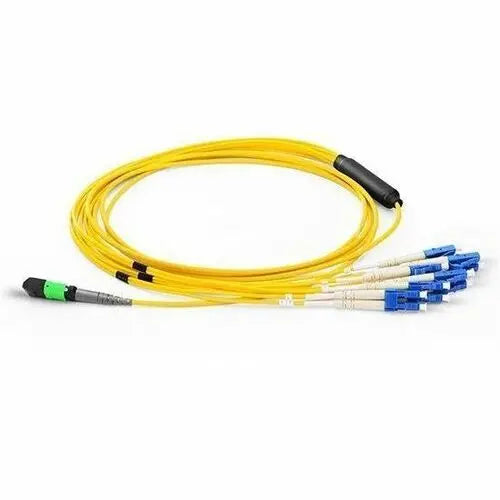

Axiom Memory Solutions MPO Female to 4 LC Singlemode 9/125 Fiber Breakout Cable 30m - TAA Compliant

Axiom MPO Female to 4 LC Singlemode 9/125 Fiber Breakout Cable 30m - TAA Compliant

The Axiom Memory Solutions MPO Female to 4 LC Singlemode 9/125 Fiber Breakout Cable is designed for high-performance networking applications requiring reliable and efficient fiber optic connections. This 30-meter cable features an innovative design that integrates an 8-fiber MTP/MPO connector on one end with four duplex LC connectors on the other, making it ideal for data centers and enterprise networks. Constructed with premium ceramic ferrules and a plenum-rated aqua jacket, this cable ensures optimal performance and safety in various environments. The durable jacket with a 3.0mm diameter for MPO and 2.0mm for LC connectors offers excellent flexibility and protection against crush and tensile stresses, supporting long-term installation reliability. The cable's high return loss (minimum of 20dB for MTP and 30dB for LC) and low insertion loss (0.15dB for MPO and 0.35dB for LC) deliver superior signal integrity, essential for demanding network environments. Operating effectively across a temperature range from -40°C to +70°C, it is suitable for both indoor and conduit deployments. This product's environmentally friendly design and TAA compliance make it an excellent choice for government and corporate projects. Backed by a lifetime warranty and supported by technical experts, the Axiom MPO to LC fiber breakout cable combines quality, performance, and compliance to meet your networking needs.

Features:

• 8 fiber - to 4 LC Duplex Fiber Optic Cable 9/125, Singlemode, Yellow

• 8 Fiber MTP/MPO (Female) and (4) LC Duplex Connectors One Side

• All Connectors Have Ceramic Ferrules

• Duplex Clips On LC Side

• Plenum (OFNP) Rated Aqua Jacket With Corning Glass

• Jacket OD: 3.0mm (MPO) 2.0mm (LC)

• Typical Return Loss, minimum: MTP=20dB, LC=30dB

• Typical Insertion Loss (MPO): 0.15dB

• Typical Insertion Loss (LC): 0.35dB

• Long Term Tensile Strength: 150N

• Long Term Crush Resistance: 200N/100mm

• Operating Temperature: -40°C to +70°C

• Color: Yellow
