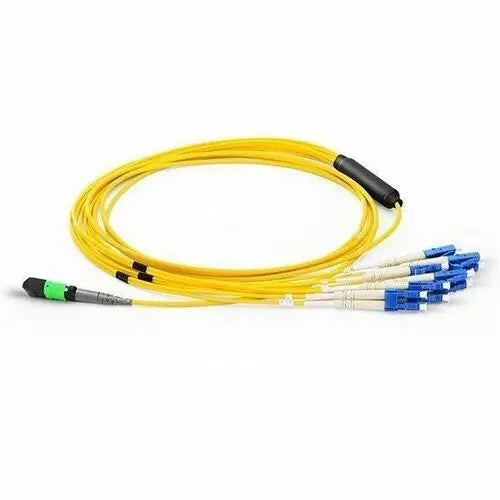

Axiom Memory Solutions MPO Female to 4 LC Singlemode Fiber Breakout Cable, 12m - TAA Compliant

Axiom MPO Female to 4 LC Singlemode 9/125 Fiber Breakout Cable 12m - TAA Compliant

The Axiom Memory Solutions MPO Female to 4 LC Singlemode 9/125 Fiber Breakout Cable provides a reliable and high-performance solution for your networking infrastructure. Designed with 8 fibers and featuring a durable yellow plenum-rated jacket, this cable is ideal for both new installations and upgrades requiring high bandwidth and minimal signal loss. Its design incorporates 8 fiber MTP/MPO connectors on one side and four LC duplex connectors on the other, facilitating efficient fiber management and connectivity in complex network environments. All connectors are equipped with ceramic ferrules for precise alignment and reduced insertion loss, ensuring optimal signal integrity over long distances.

Features:

• 8 fiber - to 4 LC Duplex Fiber Optic Cable 9/125, Singlemode, Yellow

• 8 Fiber MTP/MPO (Female) and (4) LC Duplex Connectors One Side

• All Connectors Have Ceramic Ferrules

• Duplex Clips On LC Side

• Plenum (OFNP) Rated Aqua Jacket With Corning Glass

• Jacket OD: 3.0mm (MPO) 2.0mm (LC)

• Typical Return Loss, min.: MTP=20dB, LC=30dB

• Typical Insertion Loss (MPO): 0.15dB

• Typical Insertion Loss (LC): 0.35dB

• Long Term Tensile Strength: 150N

• Long Term Crush Resistance: 200N/100mm

• Operating Temperature: -40°C to +70°C

• Color: Yellow
