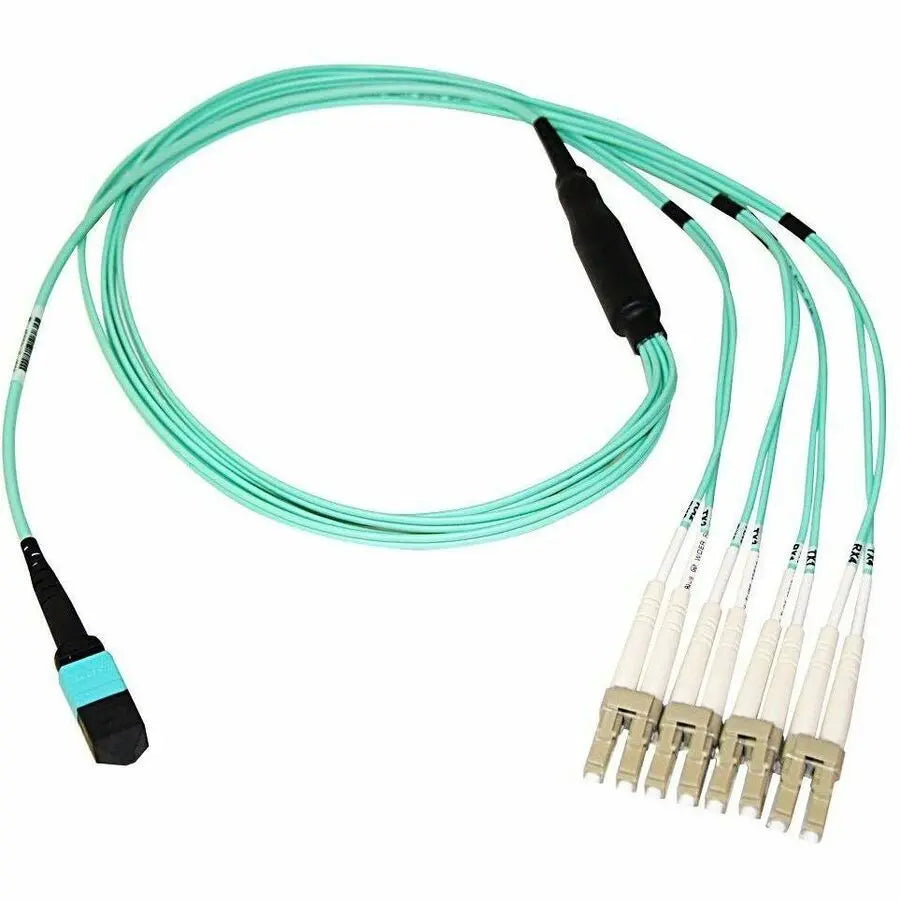

Axiom MPO Female to 4 LC Multimode OM4 50/125 Fiber Breakout Cable, 3m – TAA Compliant

Axiom MPO Female to 4 LC Multimode OM4 50/125 Fiber Breakout Cable 3m - TAA Compliant

The Axiom MPO Female to 4 LC Multimode OM4 Fiber Breakout Cable is engineered for high-performance network applications requiring reliable connectivity and efficient data transmission. Featuring eight fibers in an aqua jacket, this cable is designed with industry-grade components to meet the demanding standards of modern networking environments. It is ideal for data centers, enterprise networks, and high-bandwidth installations where quality and durability are essential. The cable's construction incorporates premium ceramic ferrules on all connectors, ensuring precise alignment and minimal signal loss for optimal performance. The MPO (Multi-fiber Termination Push-on) connector on one side and four LC duplex connectors on the other provide versatile connectivity options, streamlining your network setup and expansion efforts. The duplex clips on the LC side facilitate easy management, while the plenum-rated jacket enhances safety in air handling spaces and complies with industry standards for fire safety.

Built to withstand harsh conditions, this cable supports operating temperatures from -40°C to +70°C, making it suitable for a variety of environments. The cable's jacket has a 3.0mm outer diameter on the MPO end and 2.0mm on the LC connectors, offering a balance of flexibility and durability. It boasts impressive electrical performance metrics, including a typical return loss of 20dB for the MPO and 30dB for the LC connectors, contributing to reduced signal interference. The insertion loss is minimal, with 0.16dB for MPO and 0.35dB for LC connectors, ensuring high-quality signal transmission over long distances. Designed with long-term use in mind, the cable has a tensile strength of 150N and crush resistance of 200N per 100mm, providing durability against mechanical stresses. Certified TAA compliant and environmentally friendly, the cable is backed by a lifetime warranty and supported by free technical assistance from Axiom Memory Solutions, making it a reliable choice for your networking needs.

Features:

• 8 fiber - to 4 LC Duplex Fiber Optic Cable 50/125, OM4, Aqua

• 8 Fiber MTP/MPO (Female) and (4) LC Duplex Connectors One Side

• All Connectors Have Ceramic Ferrules

• Duplex Clips On LC Side

• Plenum (OFNP) Rated Aqua Jacket With Corning Glass

• Jacket OD: 3.0mm (MPO) 2.0mm (LC)

• Typical Return Loss: MTP=20dB, LC=30dB

• Typical Insertion Loss (MPO): 0.16dB

• Typical Insertion Loss (LC): 0.35dB

• Long Term Tensile Strength: 150N

• Long Term Crush Resistance: 200N/100mm

• Operating Temperature: -40°C to +70°C

• Color: Aqua
