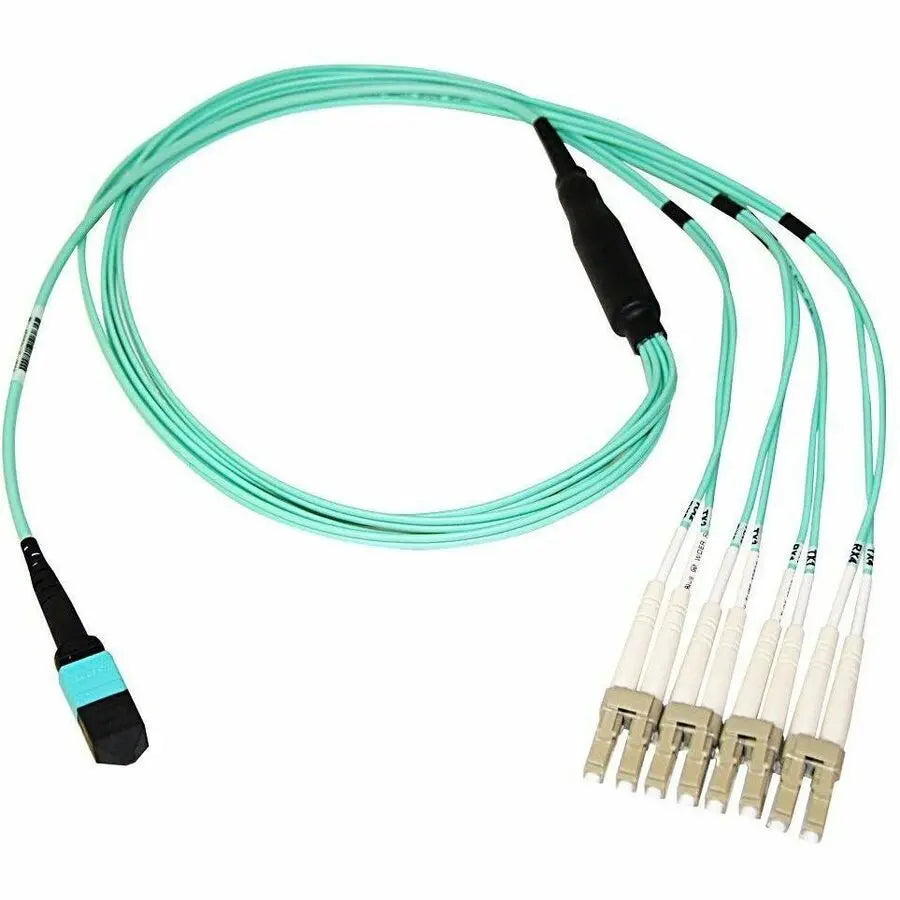

Axiom MPO Female to 4 LC Multimode OM4 50/125 Fiber Breakout Cable, 5m - TAA Compliant

Axiom MPO Female to 4 LC Multimode OM4 50/125 Fiber Breakout Cable 5m - TAA Compliant

The Axiom MPO Female to 4 LC Duplex Fiber Optic Breakout Cable offers a reliable and high-performance solution for data center and network infrastructure applications. Designed with industry-leading components, this 5-meter cable features an 8-fiber MPO (Female) connector on one end and four LC duplex connectors on the other, enabling seamless high-density fiber connections. Constructed with ceramic ferrules, the connectors ensure precise alignment and minimal signal loss, supporting optimal signal integrity across your network.
Built with a plenum-rated aqua jacket and Corning glass, this cable is suitable for both indoor and riser applications, providing fire safety compliance and durability. The jacket's outer diameter of 3.0mm for the MPO end and 2.0mm for the LC connectors offers flexibility and ease of installation in tight spaces. The cable's performance specifications include a typical return loss of 20dB for MTP and 30dB for LC connectors, and low insertion loss values of 0.16dB for MPO and 0.35dB for LC connections, ensuring efficient data transmission with minimal signal degradation.
This fiber optic cable is rated for operating temperatures from -40°C to +70°C, making it suitable for various environmental conditions. Its long-term tensile strength of 150N and crush resistance of 200N/100mm guarantee durability under demanding installation scenarios. As an environmentally friendly and TAA-compliant product, it meets industry standards for quality and sustainability, making it ideal for enterprise and government projects. Backed by a lifetime warranty and free technical support from Axiom Memory Solutions, this cable provides a dependable foundation for expanding or upgrading your fiber network infrastructure.

Features:

• 8 fiber - to 4 LC Duplex Fiber Optic Cable 50/125, OM4, Aqua

• 8 Fiber MTP/MPO (Female) and (4) LC Duplex Connectors One Side

• All Connectors Have Ceramic Ferrules

• Duplex Clips On LC Side

• Plenum (OFNP) Rated Aqua Jacket With Corning Glass

• Jacket OD: 3.0mm (MPO) 2.0mm (LC)

• Typical Return Loss, min.: MTP=20dB, LC=30dB

• Typical Insertion Loss (MPO): 0.16dB

• Typical Insertion Loss (LC): 0.35dB

• Long Term Tensile Strength: 150N

• Long Term Crush Resistance: 200N/100mm

• Operating Temperature: -40°C to +70°C

• Color: Aqua
