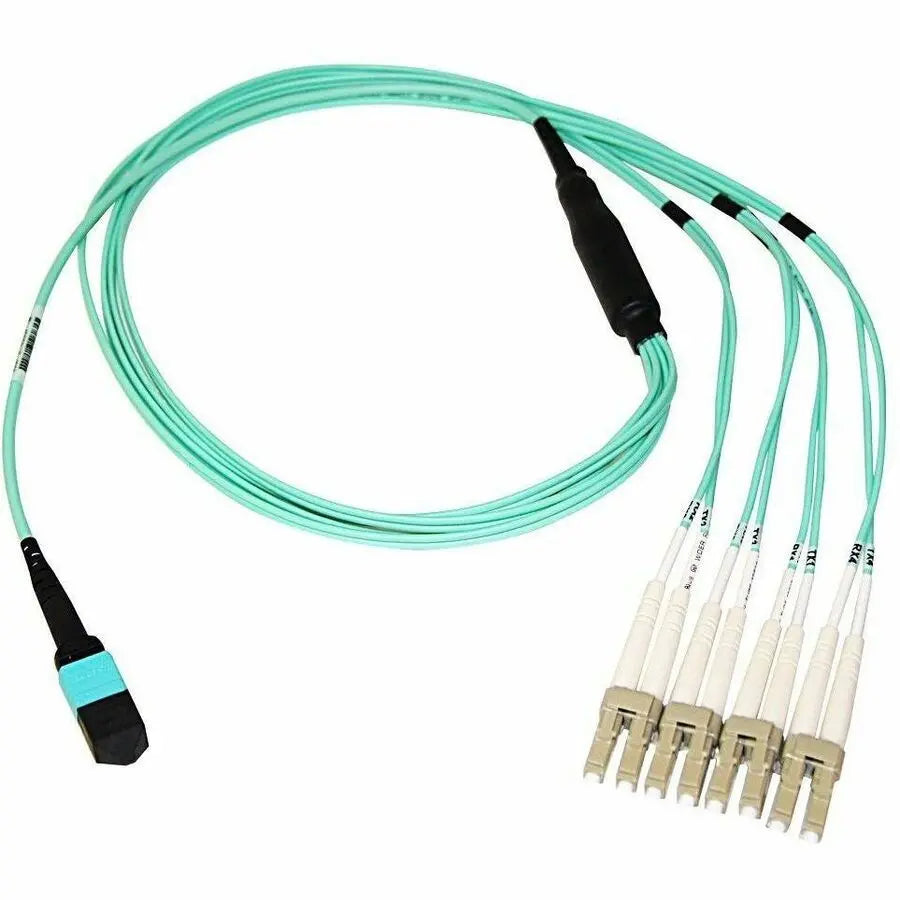

Axiom MPO Female to 4 LC OM4 Multimode Fiber Breakout Cable, 2 meters - TAA Compliant

Axiom MPO Female to 4 LC Multimode OM4 50/125 Fiber Breakout Cable 2m - TAA Compliant

The Axiom MPO Female to 4 LC OM4 Multimode Fiber Breakout Cable offers a reliable and high-performance networking solution suitable for data centers and enterprise environments. This 2-meter cable features an innovative design with 8 fibers terminating in an MPO female connector on one end and four LC duplex connectors on the other, enabling efficient and organized fiber management. Constructed with premium components, it ensures optimal signal integrity and durability in demanding settings.
All connectors are equipped with ceramic ferrules for precise alignment and minimal insertion loss, while duplex clips on the LC side facilitate secure connection management. The plenum-rated aqua jacket, made with environmentally friendly materials and Corning glass, provides excellent fire resistance and flexibility for installation in plenum spaces. Its robust construction withstands a long-term tensile strength of 150N and crush resistance of 200N per 100mm, making it suitable for various installation scenarios.
The cable's technical specifications support high-performance data transmission with a typical return loss of at least 20dB for MPO and 30dB for LC connectors, and low insertion losses of approximately 0.16dB for MPO and 0.35dB for LC. Operating efficiently across a temperature range from -40°C to +70°C, this cable performs reliably in diverse environments. With its TAA compliance, it meets federal procurement standards, and the lifetime warranty underscores its quality and durability. Whether upgrading existing infrastructure or deploying new networks, this fiber optic cable provides a high-quality, environmentally friendly connection solution that ensures long-term performance and compliance.
For more information, visit the manufacturer’s website at axiommemory.com.

Features:

• 8 fiber - to 4 LC Duplex Fiber Optic Cable 50/125, OM4, Aqua

• 8 Fiber MTP/MPO (Female) and (4) LC Duplex Connectors on one side

• All Connectors Have Ceramic Ferrules for precise alignment

• Duplex Clips on LC Side for secure connection management

• Plenum (OFNP) Rated Aqua Jacket with Corning Glass for fire safety and durability

• Jacket Outer Diameter: 3.0mm (MPO), 2.0mm (LC)

• Typical Return Loss: MTP ≥ 20dB, LC ≥ 30dB

• Typical Insertion Loss: MPO approximately 0.16dB, LC approximately 0.35dB

• Long Term Tensile Strength: 150N

• Long Term Crush Resistance: 200N/100mm

• Operating Temperature Range: -40°C to +70°C

• Color: Aqua for easy identification

• TAA Compliant for federal procurement standards

• Environmentally Friendly construction for eco-conscious deployments

• Limited Lifetime Warranty for long-term peace of mind
