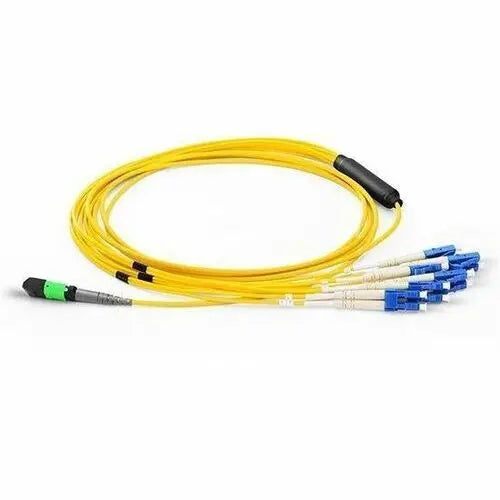

Axiom MPO Female to 4 LC Singlemode 9/125 Fiber Breakout Cable 3m - TAA Compliant

Axiom MPO Female to 4 LC Singlemode 9/125 Fiber Breakout Cable 3m - TAA Compliant

The Axiom MPO Female to 4 LC Singlemode 9/125 Fiber Breakout Cable offers a reliable and efficient solution for high-performance network installations. Designed with quality components and advanced construction technologies, this 3-meter cable ensures optimal signal transmission for demanding networking environments. The cable features eight fibers terminated with high-quality connectors to support singlemode applications, making it ideal for data centers, enterprise networks, and telecom infrastructure.

Constructed with a plenum-rated aqua jacket reinforced with Corning glass, the cable provides enhanced safety and durability in plenum spaces. The jacket's outer diameter is 3.0mm for the MPO connector and 2.0mm for the LC connectors, facilitating easy installation in tight spaces. All connectors are equipped with ceramic ferrules, ensuring precise alignment and minimal signal loss. Duplex clips on the LC side aid in maintaining organized and secure cable management, reducing the risk of damage and performance degradation.

Performance features include a typical return loss of at least 20dB for MTP connectors and 30dB for LC connectors, along with low insertion loss values of 0.15dB for MPO and 0.35dB for LC connectors. These specifications guarantee high-quality data transmission with minimal signal degradation. The cable is engineered for long-term durability, with a tensile strength of 150N and crush resistance rated at 200N/100mm, ensuring resilience against physical stresses over time. Operating effectively across a wide temperature range from -40°C to +70°C, this cable is suited for diverse environmental conditions.

Manufactured by Axiom Memory Solutions and TAA compliant, this product is environmentally friendly and backed by a lifetime warranty. Whether upgrading existing infrastructure or deploying new network systems, this fiber breakout cable provides dependable connectivity and ease of installation, supporting your network's performance and longevity.

Features:

• 8 fiber - to 4 LC Duplex Fiber Optic Cable 9/125, Singlemode, Yellow

• 8 Fiber MTP/MPO (Female) and (4) LC Duplex Connectors One Side

• All Connectors Have Ceramic Ferrules

• Duplex Clips On LC Side

• Plenum (OFNP) Rated Aqua Jacket With Corning Glass

• Jacket OD: 3.0mm (MPO) 2.0mm (LC)

• Typical Return Loss, min.: MTP=20dB, LC=30dB

• Typical Insertion Loss (MPO): 0.15dB

• Typical Insertion Loss (LC): 0.35dB

• Long Term Tensile Strength: 150N

• Long Term Crush Resistance: 200N/100mm

• Operating Temperature: -40°C to +70°C

• Color: Yellow
