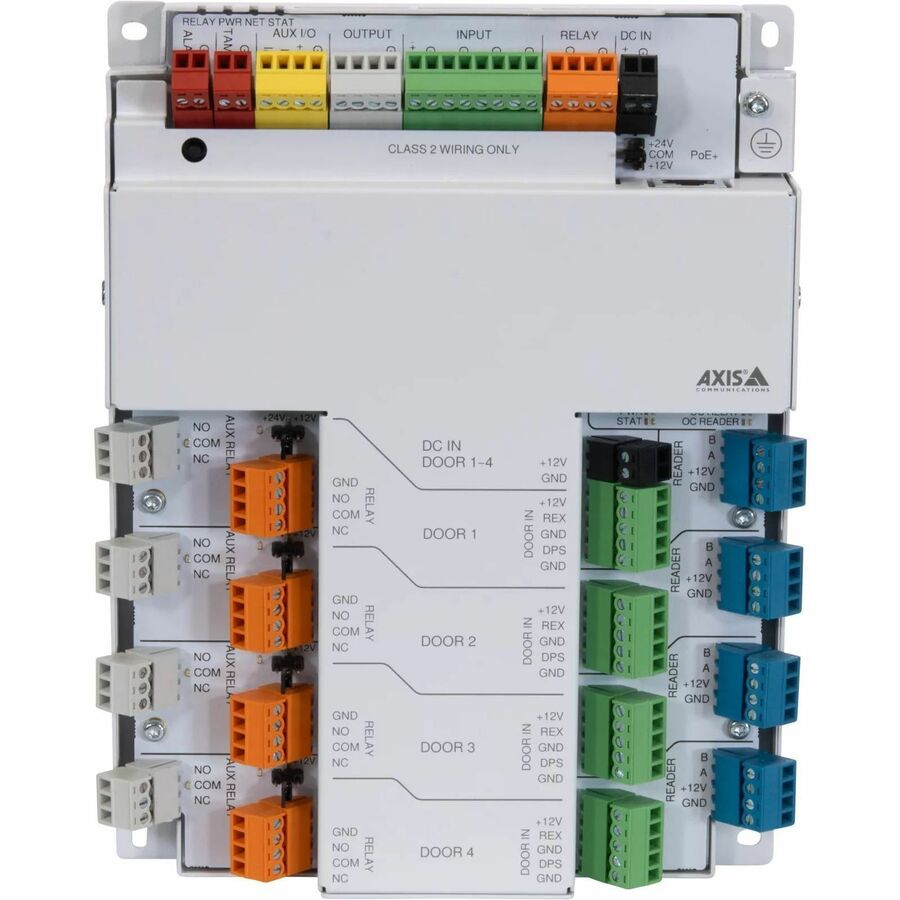

AXIS A1710-B Network Door Controller, Part Number 03078-001

The AXIS A1710-B Network Door Controller, part number 03078-001, provides centralized access control for installations supporting up to four doors. This compact, cost-efficient controller includes onboard lock power management and supports OSDP readers, helping simplify wiring, cabinet organization, and system deployment. Its cabinet-mount design is well suited for security rooms, main controller rooms, new construction, and retrofit projects.

Cost-efficient and scalable access control

The AXIS A1710-B is designed to scale as access control requirements grow. It supports up to four doors, with onboard capability for up to eight OSDP readers and eight locks. Connectors are color-coded to support efficient cable management, while the compact barebone design fits centralized installations using AXIS or third-party cabinets. The controller can store up to 250,000 credentials and 250,000 event logs, making it suitable for both small facilities and larger commercial deployments.

Secure communication and flexible credentials

OSDP Verified technology enables secure, bidirectional communication with compatible readers. The controller supports multiple authentication methods, including cards, PIN codes, Bluetooth credentials, dynamic QR codes for mobile access, license plates for vehicle access, and multi-factor authentication. It can operate with AXIS Camera Station Secure Entry or compatible partner solutions to create a scalable video and access control system. Compatibility includes AXIS A9188, A9188-VE, and A9210 network I/O relay modules, along with AXIS A4020-E, A4120-E, and A4612 readers.

Built-in cybersecurity protection

AXIS Edge Vault helps safeguard the device and sensitive information against unauthorized access. Cryptographic keys are protected within an onboard EAL6+ certified compute module, supporting secure device operation and credential management. The white AXIS A1710-B includes a connector kit, grounding kit, splicing connectors, and installation guide. It is TAA compliant, REACH registered, cabinet mountable, and backed by a five-year limited warranty.

Features:

• Centralized control simplifies installation
• Full access control for up to four doors
• Supports up to eight OSDP readers and eight locks
• OSDP Verified for secure bidirectional reader communication
• Built-in AXIS Edge Vault cybersecurity protection
• Stores up to 250,000 credentials and 250,000 event logs
• Supports cards, PIN codes, Bluetooth, dynamic QR codes, license plates, and multi-factor authentication
• Compatible with AXIS Camera Station Secure Entry and partner solutions
• Cabinet-mount design with onboard lock power management
• TAA compliant with a five-year limited warranty
