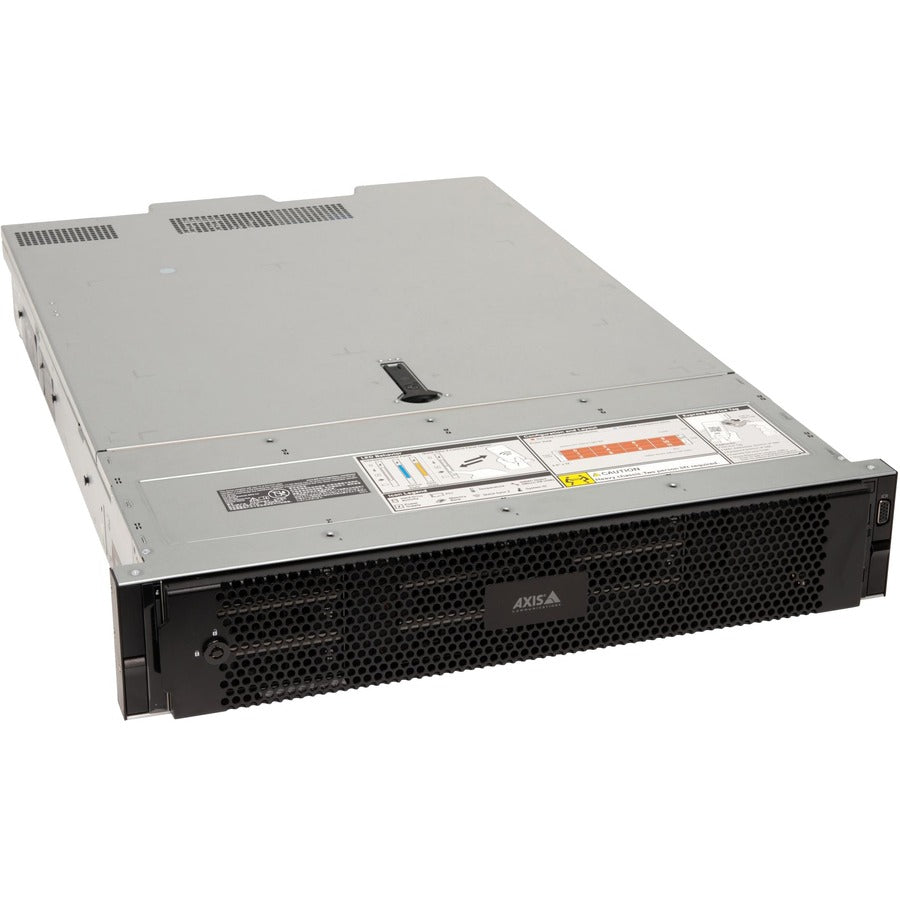

AXIS Camera Station S1264 64 TB Rack Recording Server, Part Number 02540-001

AXIS Camera Station S1264 Rack Recording server - 64 TB HDD

The AXIS Camera Station S1264 rack recording server, part number 02540-001, is a ready-to-use video surveillance solution designed for demanding security environments. With powerful components, preconfigured software, and 64 AXIS Camera Station licenses included, it simplifies deployment while delivering reliable recording performance for growing surveillance systems.

High-performance recording and data protection

Built for dependable operation, the AXIS S1264 uses a high-cache RAID controller to help reduce recording gaps, downtime, and data loss. Multiple RAID configurations, including RAID 0, 1, 5, 6, and 10, support flexible storage management, redundancy, and future expansion. The integrated Trusted Platform Module is FIPS 140-2 Level 2 certified, helping protect cryptographic keys and certificates. Built-in operating system recovery also helps restore system functionality and recover data after a failure.

Scalable surveillance platform

This AXIS recording server supports recording bitrates up to 625 Mbps, accommodating approximately 80 channels depending on system configuration. Its 64 TB storage capacity provides extended recording retention, while the 12 drive bays allow additional storage expansion with optional accessories. Network connectivity is supported through Ethernet, and USB ports provide convenient high-speed data transfer for maintenance and administration. Remote access allows authorized users to manage the surveillance environment from virtually anywhere with an internet connection.

Simple installation and dependable support

The AXIS S1264 arrives with preconfigured software to reduce hardware selection, configuration, and testing requirements. An intuitive installation wizard and AXIS Recorder Toolbox help streamline deployment and ongoing administration. The package includes Dell ReadyRails 2U sliding rails and two C13-to-C14 power cords for rack power distribution units. Covered by a five-year limited warranty, this TAA-compliant recording server is manufactured in Poland and provides a dependable foundation for AXIS end-to-end video surveillance installations.

Features:

• Video surveillance recording server designed for demanding security applications
• 64 TB storage capacity supports extended video recording retention
• Includes 64 AXIS Camera Station licenses for streamlined deployment
• Supports recording bitrates up to 625 Mbps and approximately 80 channels
• RAID 0, 1, 5, 6, and 10 configurations provide flexible storage and redundancy
• Trusted Platform Module is FIPS 140-2 Level 2 certified for protected cryptographic keys and certificates
• Twelve drive bays support future storage expansion with optional accessories
• USB connectivity enables convenient high-speed data transfer
• Ethernet connectivity supports efficient network integration
• Includes Dell ReadyRails 2U sliding rails and two C13-to-C14 power cords
• Five-year limited warranty supports long-term system reliability
