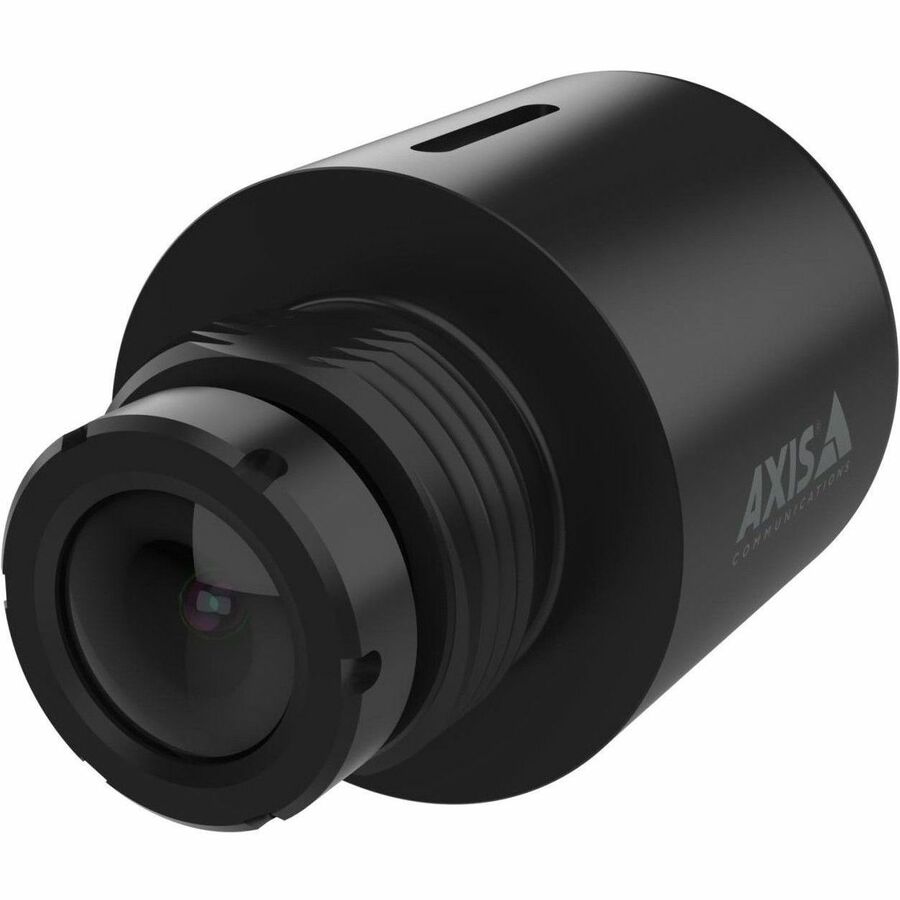

AXIS F2105-RE Standard Surveillance Camera Sensor, 02640-001

The AXIS F2105-RE Standard Sensor, part number 02640-001, is a ruggedized surveillance camera sensor designed for use with AXIS second-generation main units and compatible cables featuring SMA-FAKRA connectors. Its discreet bracket-mount design is well suited for buses, emergency vehicles, machinery, and other indoor or outdoor applications where installation space is limited and dependable video performance is essential.

Delivering HDTV 1080p video at up to 60 frames per second, the AXIS F2105-RE provides smooth, detailed footage for monitoring and identification. Its 108° horizontal field of view supports wide-area coverage, while Lightfinder technology helps produce sharp color images in low-light environments. Forensic WDR improves image clarity in scenes with both bright and dark areas. When paired with an AXIS F9111 Main Unit, the sensor can also support 720p video at up to 180 frames per second.

Built for challenging installations, this black AXIS sensor can be mounted behind glass, metal, or plastic sheeting with only the compact sensor visible externally. The ruggedized SMA-FAKRA connection helps protect against vibration, making it suitable for mobile and demanding environments. The unit is rated IP66, IP67, and IP6K9K for protection against dust, water, and high-pressure cleaning conditions, and it can operate in temperatures from -40°F to 158°F intermittently.

The AXIS F2105-RE is compatible with AXIS F9104-B, F9111, F9114, and F9114-B barebone units, as well as compatible second-generation AXIS cables. Its flexible cable and accessory options support installation requirements across a range of surveillance applications. The sensor is backed by a 5-year limited warranty.

Features:

• Compatibility: Designed exclusively for AXIS second-generation main units and compatible SMA-FAKRA cables
• Video Resolution: Supports HDTV 1080p at up to 60 frames per second and 720p at up to 180 frames per second with the AXIS F9111 Main Unit
• Field of View: Provides a 108° horizontal field of view for wide-area surveillance coverage
• Low-Light Performance: Lightfinder technology delivers sharp color video in challenging lighting conditions
• Dynamic Range: Forensic WDR improves detail in scenes containing both bright and dark areas
• Durability: Ruggedized sensor design helps withstand vibration and demanding mobile installations
• Environmental Protection: IP66, IP67, and IP6K9K ratings provide protection against dust, water, and high-pressure cleaning
• Installation: Discreet bracket-mount design supports placement behind glass, metal, or plastic sheeting
• Operating Temperature: Designed for intermittent operation from -40°F to 158°F
• Compatible Main Units: AXIS F9104-B, F9111, F9114, and F9114-B
