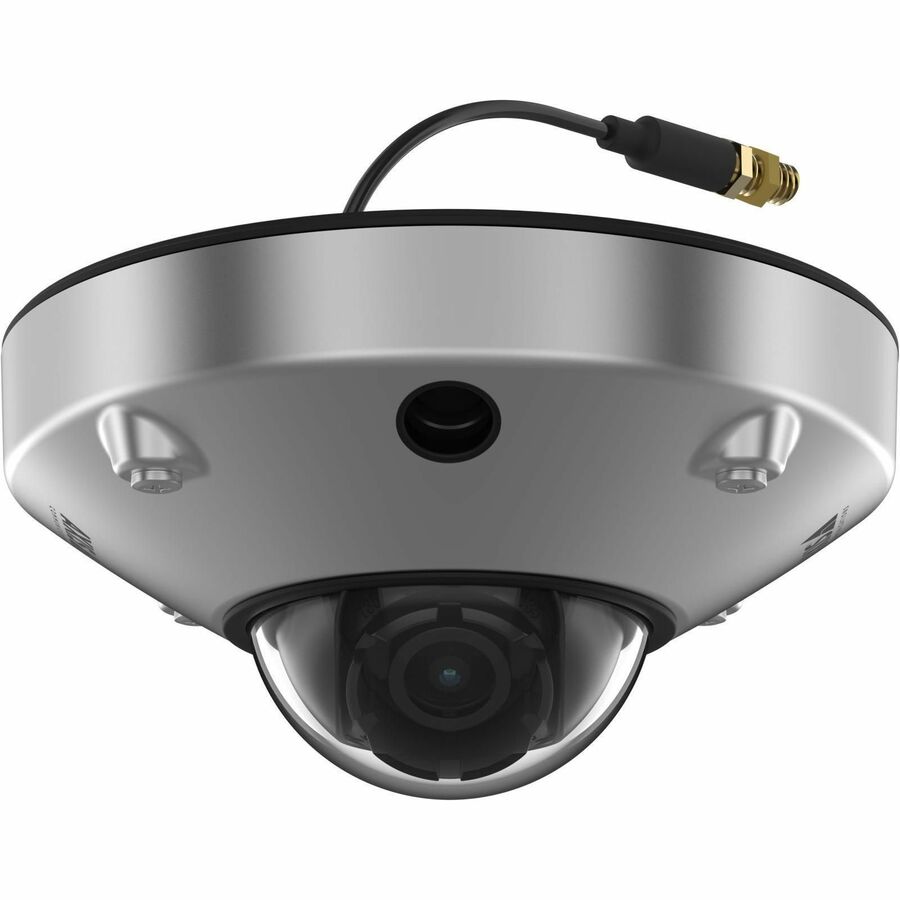

AXIS F4105-SLRE Dome Sensor, Part Number 02927-001

Ruggedized Dome Sensor for Food Processing and Industrial Surveillance

The AXIS F4105-SLRE Dome Sensor, part number 02927-001, is designed for demanding surveillance applications where durability, hygiene, and dependable image performance are essential. Its stainless steel SS 316L enclosure resists hot-pressure water and harsh detergents, while NSF/ANSI Standard 169 certification supports use in food processing facilities. IK10 impact resistance and IP66, IP67, and IP69 protection help safeguard the sensor against weather, dust, water, and intensive cleaning conditions.

This AXIS surveillance sensor operates in temperatures from -22°F to 113°F and is NEMA TS2 rated for operation in temperatures up to 165°F for as long as 15 hours. SMA-FAKRA connectors support installation in high-vibration environments, including inside machinery. The bracket-mount design and compact sensor format make it suitable for production lines, catering facilities, transportation applications, and other industrial settings where reliable video coverage is required.

Clear Imaging in Any Lighting

The AXIS F4105-SLRE delivers up to four HDTV 1080p video streams at 30 frames per second or 720p streams at up to 60 frames per second. When paired with an AXIS F9111 main unit, it supports HDTV 1080p video at 60 frames per second or 720p video at up to 180 frames per second. Forensic WDR helps preserve detail in scenes containing both bright and dark areas, while the wide viewing angle provides broad coverage. Integrated infrared illumination enables discreet surveillance in complete darkness up to 33 feet.

Based on AXIS divided camera technology, the sensor connects to AXIS F91 main units using compatible cables up to 98 feet. Up to four sensor units can be connected to one main unit, and the AXIS F4105-SLRE works with other AXIS F Series sensor units for flexible system design. Its exchangeable lens supports a range of M12 lens options, allowing installers to configure either wide-area views or closer detail of critical objects. The package includes the dome sensor, installation guide, and lens tool, backed by a five-year limited warranty.

Features:

• NSF/ANSI Standard 169 certified for use in food processing facilities
• Stainless steel SS 316L enclosure resists hot-pressure water and harsh detergents
• IK10 impact resistance and IP66, IP67, and IP69 environmental protection
• Infrared illumination supports surveillance in complete darkness up to 33 feet
• Supports up to four HDTV 1080p video streams at 30 frames per second
• Forensic WDR improves image detail in scenes with bright and dark areas
• Wide viewing angle provides broad surveillance coverage
• Exchangeable M12 lens options support customized monitoring
• Compatible with AXIS F91 main units and AXIS F Series sensor units
• SMA-FAKRA connectors support high-vibration and in-machinery installations
• NEMA TS2 rated for elevated-temperature operation
• Five-year limited warranty
