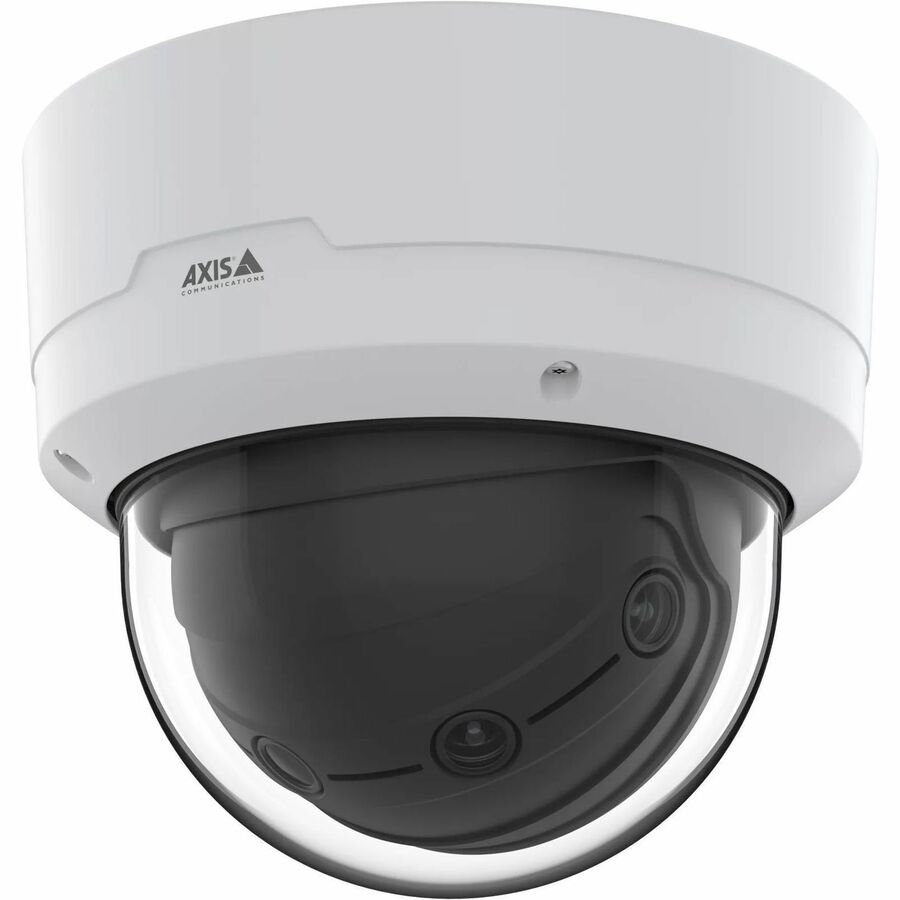

AXIS Q4809-PVE 10K Panoramic Network Camera, 26 MP, 180° Coverage, PoE, Part 02658-001

AXIS Q4809-PVE 12 Megapixel Outdoor Network Camera - Color - Dome - White - TAA Compliant

Complete 180° panoramic coverage with 26 MP detail

The AXIS Q4809-PVE Panoramic Camera delivers a seamless 180° horizontal and 45° vertical field of view using four stitched images and up to 26 MP resolution at 30 frames per second. With video output up to 10240 x 2560, this outdoor dome camera provides broad situational awareness from a single network address, helping simplify remote surveillance installations while reducing the need for multiple cameras. Lossless zoom maintains image clarity when viewing important details, while horizon straightening produces a level, natural-looking panoramic image.

Built on a dual Axis system-on-chip with a deep learning processing unit, the AXIS Q4809-PVE supports advanced edge-based analytics. AXIS Object Analytics can detect, classify, track, and count humans and vehicle types, helping security teams respond more effectively to activity in monitored areas. The RGB CMOS sensor, 5 mm maximum focal length, and f/1.7 maximum aperture support detailed imaging and improved light collection. Infrared night vision extends monitoring into low-light conditions, while remote pan, tilt, and roll functions help streamline installation and camera alignment.

Designed for demanding outdoor environments, the AXIS Q4809-PVE features an aluminum housing with IK10 impact protection, IP67 ingress protection, and an active tampering alarm. Power over Ethernet supports efficient installation through a single network connection, and the junction box mount provides a stable mounting solution. Built-in Axis Edge Vault helps protect device integrity with secure key storage and operations, including FIPS 140-2 Level 2 certified capabilities. The camera is TAA compliant and includes a weathershield, installation guide, drill template, connector guard, cable gaskets, conduit adaptor, I/O connector, and owner authentication key. The AXIS Q4809-PVE is covered by a 5-year limited warranty.

Features:

• Seamless 180° horizontal and 45° vertical panoramic coverage
• Up to 26 MP resolution at 30 frames per second
• Video resolution up to 10240 x 2560
• Four-image stitching provides a cohesive panoramic overview
• Lossless zoom preserves image sharpness during detail inspection
• AI-powered analytics with support for detecting, classifying, tracking, and counting people and vehicle types
• Remote pan, tilt, and roll functionality simplifies installation and alignment
• RGB CMOS sensor with a 5 mm maximum focal length
• f/1.7 maximum aperture supports improved light collection
• Infrared night vision for low-light surveillance
• Power over Ethernet connectivity for streamlined installation
• Axis Edge Vault cybersecurity with FIPS 140-2 Level 2 certified key storage and operations
• IK10 impact protection and IP67 ingress protection for outdoor use
• Active tampering alarm
• Aluminum outdoor dome housing with junction box mount
• TAA compliant with a 5-year limited warranty
