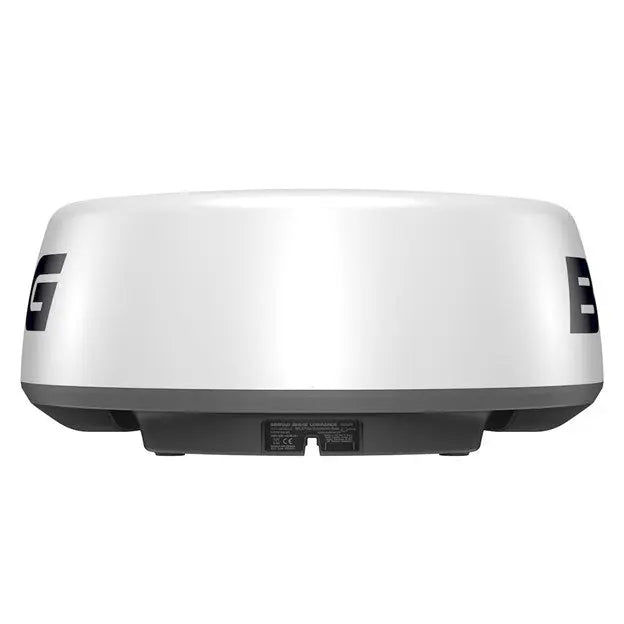

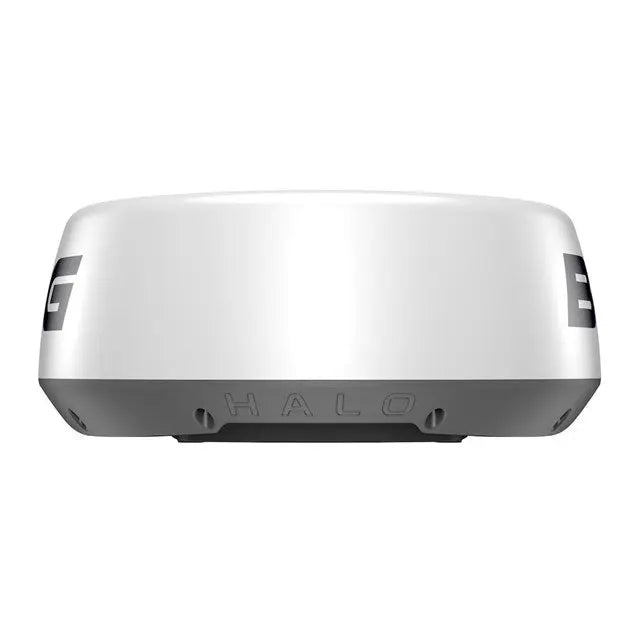

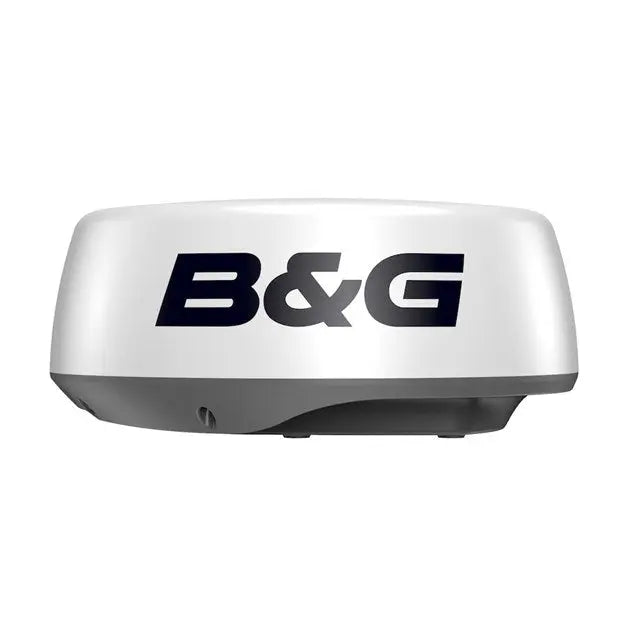

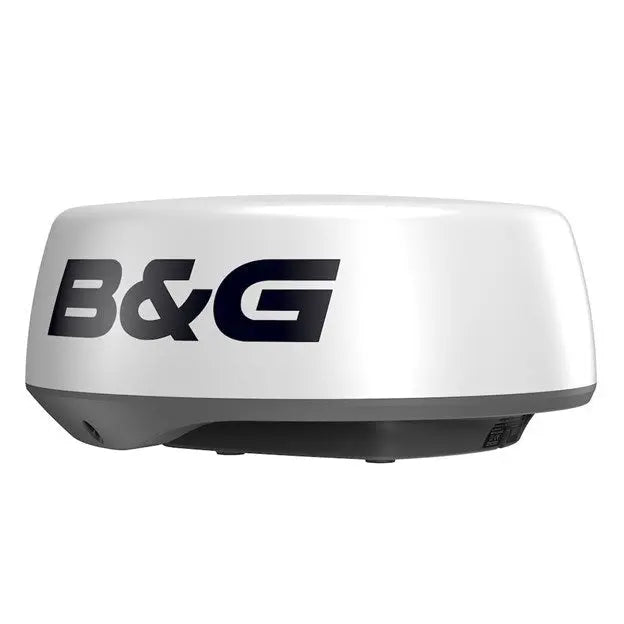

B&G Halo 20 Radar with 20m Cable

Explore the Powerful Features of the B&G Halo 20 Radar

B&G Halo 20 Radar with 20m Cable

B&G Halo20 Radar with 20m Cable

Model: 000-14540-001

• 10W Pulse Compression
• 24 nm range from a compact 20-inch dome
• Unrivalled short range
• Radiation safe
• Easy operation with harbour, offshore and weather mode
• MARPA target tracking
• InstantOnTM
• Low Power Consumption
• Low Power Consumption

Extend your view from the bow of your boat out to 24 nautical miles with pulse-compression radar technology that not only delivers a powerful mix of short and long-range detection, but provides precise target definition with minimal clutter.

HALO20 radar delivers a comprehensive range of features to enhance your situational awareness and on-water safety. Monitor selected collision hazards with MARPA target tracking, tracking up to 10 targets. Whether you're navigating through crowded waterways or contending with poor visibility, HALO20 radar cuts through the clutter to give you a clear and current picture of your surroundings.

HALO20 Radar wakes instantly from its low-power standby mode, delivering radar coverage exactly when and where you need it. Even if your HALO20 radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar.

Harbour, Offshore, Weather and custom modes tune HALO20 Radar's advanced signal processing to help ensure that targets can be seen vividly - even in the toughest environmental conditions.

Specifications

WaterproofratingIPX6

Supply Voltage
10.5 - 31.2 VDC (12/24V systems)

Max Wind Speed
100 knots (51 m/s)

Power Consumption typical
18W

Warranty Period
2 Years

Power Consumption max
20W

Max Range, scale
24 NM

Rotation speed
24 RPM

Operating Temperature Range
-25 deg to + 55 degC (-13 deg to +130 degF)

Beam width
4.9 deg H x 25 deg V

Weight
5.9 kg (13 lbs) without cable

Min Range, scale
50 m / 200 ft / 50 yd

Dimensions W x H x D
510mm dia x 223 mm H. (20 dia x 8.8 in H)

Recommended Fuse Rating
5A

Humidity
95% RH at 35 degC (95 degF)

Interface
B&G MFD

Radar Modes
Harbour

Cutting-Edge Radar Performance for Enhanced Safety

The B&G Halo 20 Radar is designed to provide boaters with fast and accurate target detection, ensuring enhanced safety on the water. Featuring pulse compression technology, this radar offers clear images even in challenging conditions such as heavy rain or fog. Its short-range detection capabilities make it perfect for navigating crowded harbors or busy coastal waters. With the included 20m cable, installation is flexible and convenient, allowing seamless integration with your existing marine electronics. The Halo 20 offers both reliability and performance to support confident navigation at all times.

Sleek Design and Easy Installation

Weighing lightweight with a compact dome size, the B&G Halo 20 Radar blends effortlessly into your vessel’s design without compromising on function. The included 20m cable offers extended reach, providing flexibility in mounting options to suit different boat types. This radar system is designed for easy installation, minimizing setup time and ensuring quick connection to your onboard systems. Its modern build also ensures durability and resistance against harsh marine environments, making it a long-lasting addition to your navigation suite.

Seamless Integration with B&G Systems

The B&G Halo 20 Radar works harmoniously with B&G’s networked marine electronics, delivering real-time radar overlay on compatible chartplotters for superior situational awareness. This synergy helps sailors take advantage of advanced features such as target tracking and collision avoidance alerts. The radar system’s intuitive interface and smart connectivity make it an ideal upgrade for sailors seeking to enhance their onboard safety tools. Combining cutting-edge technology with user-friendly operation, the Halo 20 is a trusted choice for modern boating navigation.
