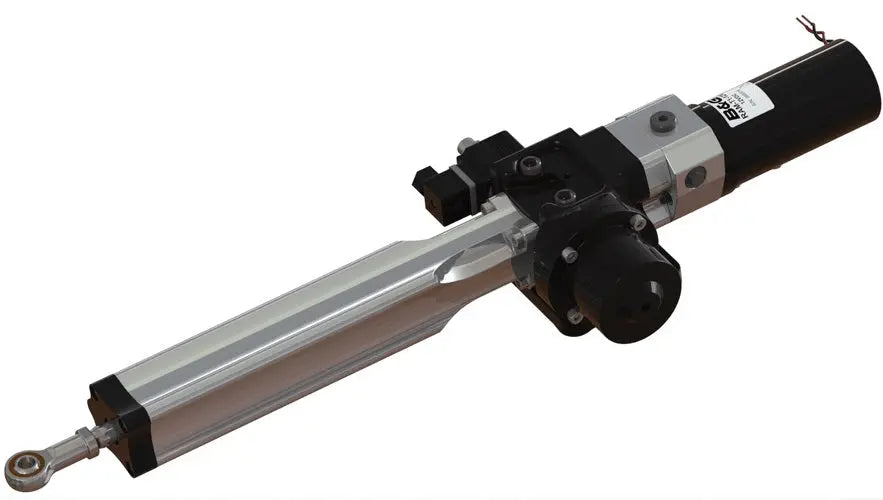

B & G Hydraulic Ram T0 12V Drive - Marine Hydraulic Linear Actuator for Vessels

The B & G Hydraulic Ram T0 12V Drive is a versatile and reliable marine hydraulic linear actuator designed for vessel steering systems. This integrated unit combines a cylinder, pump, motor, clutch, and reservoir in a pre-filled, sealed assembly, ensuring efficient operation with minimal maintenance. Its robust construction and compatibility with mechanical primary steering systems make it suitable for vessels that require precise rudder control, especially when back-driven. The unit's design allows it to function seamlessly in autopilot mode, with the course computer energizing the clutch solenoid to extend and retract the ram via the bidirectional motor. Internal relief valves provide protection against rudder strikes, grounding, and other mechanical stresses, enhancing operational safety and longevity.

Features:

• Voltage: Operates on 12 VDC for versatile marine use

• Current: 1.3A at 25% duty cycle, with intermittent capacity up to 14.0A for demanding applications

• Hard-over time: Approximately 12 seconds for rapid rudder response

• Ingress Protection: IP67 rated for dust and water resistance in harsh marine environments

• Max thrust: 350 kg (intermittent) for reliable rudder movement

• Max stroke: 8 inches (203 mm) for precise control

• Construction: Durable aluminum housing designed for marine conditions

• Max torque: 545 Nm providing strong, responsive control

• Fluid Compatibility: Supports ISO VG10 to VG40 hydraulic mineral fluids conforming to ISO 6743-4 HV

• Operational Temperature: Suitable for ambient temperatures from -15°C to +55°C

• Clutch Power: 12-watt clutch coil for dependable engagement
