B&G Nemesis Hub

Explore the Features and Benefits of the B&G Nemesis Hub

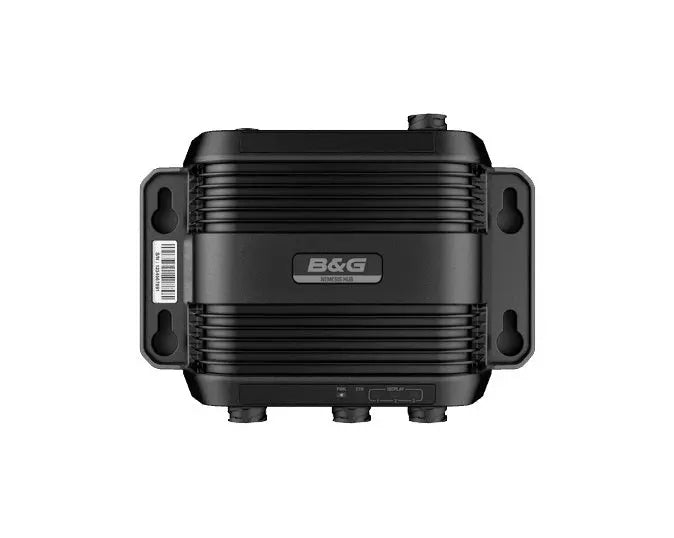

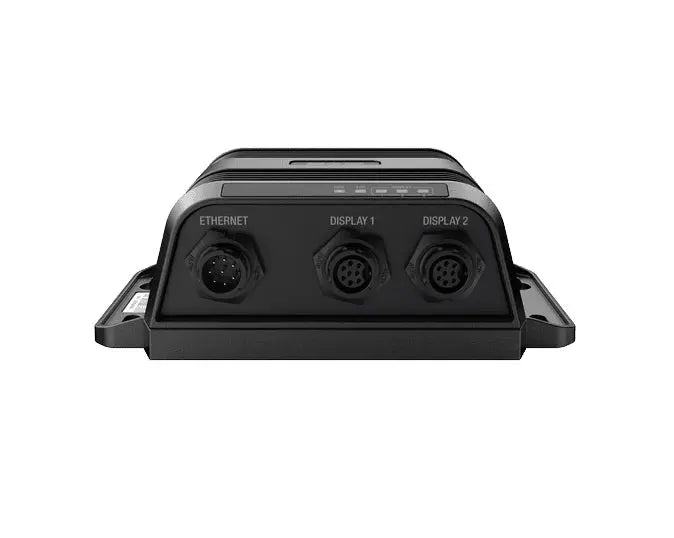

B&G Nemesis Hub

B&G NemesisTM Hub

Model: 000-15683-001

• Connect up to 3 NemesisTM displays easily when installed in close proximity to each other (e.g. mast or at helm).
• One simple interconnect cable (0.6m in length) required per display (1 included). Choices from 5m to 30m main Power/Ethernet cable options available.

B&G NemesisTM Hub allows compact and straightforward connection of up to 3 NemesisTM displays at a key location (mast, helm etc) with a single Power/Ethernet cable run, and a simple interconnect cable from the hub to each display.

Specifications

Storage temperature-15 degC to +55 degC (-5 degF to 131 degF)

Operating temperature
-20 degC to +60 degC (-4 degF to 140 degF)

Waterproof rating
IPX 6 and 7

Electrical

Power supply
12/24 V DC

Operating voltage
12/24 V DC (10 - 31.2 V DC (min - max)

Power consumption
2W plus max 60W distributed to connected displays.

Fuse rating
9 Amps

Physical

240g (0.44 lbs)
240g (0.44 lbs)

Interface/Connectivity

Ethernet/Power
1x 8-pin connector

Display
3x 8-pin Ethernet connectors

Ground
1x M4 Grounding

What's in the Box:

• Nemesis Hub
• NemesisTM Hub Power/Ethernet Interconnect Cable

Superior Marine Network Integration

The B&G Nemesis Hub serves as a core component in advanced marine networks, allowing seamless connection of multiple instruments. Designed for NMEA 2000 compatibility, this hub ensures smooth data flow between sensors, displays, and autopilots onboard. Whether you’re integrating wind, depth, or speed sensors, the B&G Nemesis Hub provides reliable and efficient communication for accurate data sharing. This integration enhances real-time decision-making, helping sailors navigate confidently.

Robust and Durable Design

Engineered to withstand harsh marine environments, the B&G Nemesis Hub boasts a rugged construction resistant to water, corrosion, and vibration. Its compact design fits easily within any marine electronics setup, making installation straightforward. This durability is critical for long-term reliability, giving you peace of mind during extended voyages. With the Nemesis Hub, your marine electronics remain protected and fully functional regardless of demanding sea conditions.

Expandable and Flexible Connectivity

One of the key benefits of the B&G Nemesis Hub is its ability to expand and support multiple device connections through a single network backbone. This flexibility allows users to add new sensors or instruments without complex rewiring, making upgrades and maintenance simpler. The hub’s smart design enables streamlined network expansion, accommodating growing marine electronics systems to adapt to your sailing needs effortlessly.
