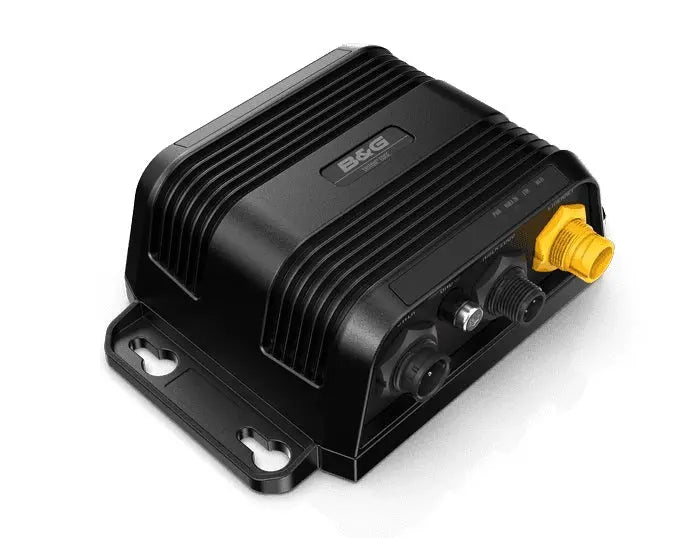

B&G Triton Edge Sailing Processor

B&G Triton Edge Sailing Processor

B&G TritonTM Edge Sailing Processor with NMEA 2000(R), Ethernet and built-in Wi-Fi.

Model: 000-15134-001

• Latest powerful micro processor provides all core instrument calculations


• Enhanced feature set for serious cruising yachts


• B&G App Integration


• Integrated webserver provides easy access to system configuration and control


• Record all you sailing data to the cloud


• Review your sailing data using the B&G companion app


• Backup, restore, and export of sailing data


• Ethernet interface. Ethernet, 100Mbps, waterproof


• Dual Wifi - Internet & Hotspot


• NMEA 2000(R) compliant interface (Micro C)


• LED status indicators


• Simple mounting, connectivity and a low profile design allows discrete and ease installation on any yacht.


• 12/24V power

TritonTM EdgeTM Sailing Processor delivers an enhanced suite of sailing data such as advanced StartLine calculations, advance true wind data and autocalibration, boat speed calibration and correction, wind correction for heel/trim, improving accuracy of your sailing information. Wi-Fi and Ethernet allow for expanded integration with TritonTM 2 and Nemesis(R) displays, and VulcanTM and Zeus(R) Chartplotters, whilst integration with the B&G(R) App also enables the ability to review or replay your sailing data, and web-browser based control allows for easy set-up and commissioning.

Specifications
Operating temperatureMinus 15 to 55oC (5 to 131oF)

Storage temperature
Minus 40 to 85oC (Minus 40 to 185oF)

Waterproof rating
IPX6; IPX7

Electrical

Supply voltage
12/24V DC nominal (9-31V DC)

Physical

Weight
Weight
260g (0.57lbs)

Compass Safe Distance
0.5m (1.6 feet)

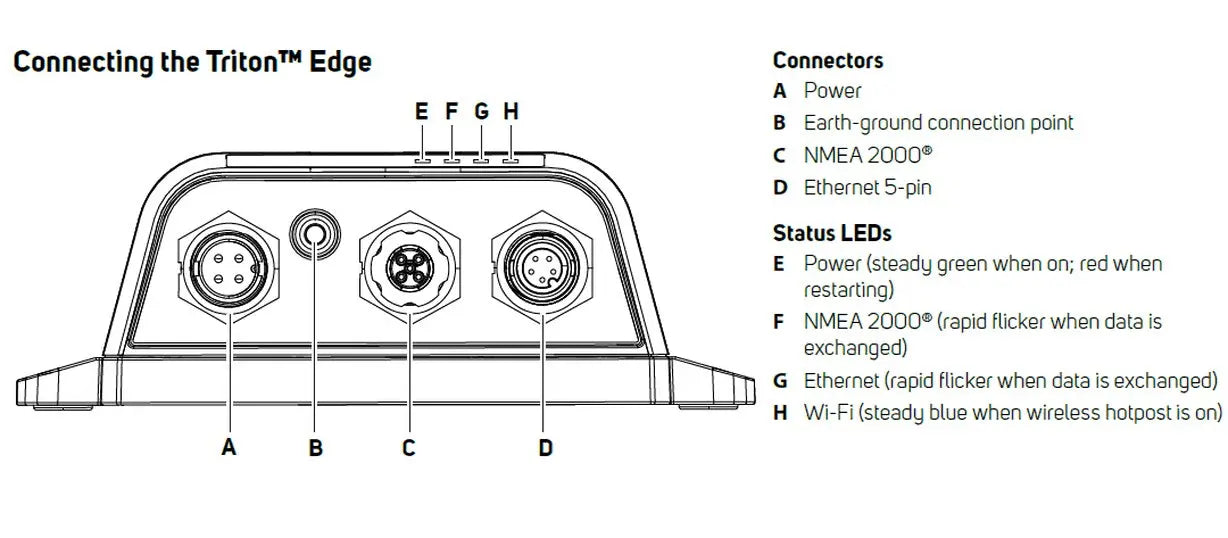

Interface/Connectivity

NMEA 2000(R)
1x Micro-C

Ethernet
1x Navico 5 pin yellow

WiFi
802.11 b/g; Internal antenna

What's in the Box:

• Triton Edge Processor


• 4-Pin Power Cable


• N2K T-Joiner


• N2K Cable - 0.6m (2ft)
