B&G Triton2 Digital Intrument Display

B&G Triton2: Advanced Digital Instrument Display for Marine Navigation

B&G Triton2 Digital Intrument Display

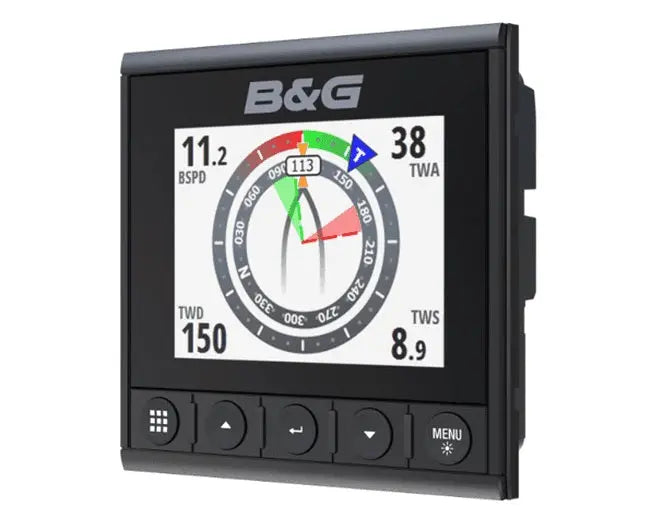

B&G Triton2 Digital Display - Multi-purpose 4.1 inch colour sailing instrument and autopilot display.

Model: 000-13294-001

• Optical Bonding Sporting an Optically Bonded 4.1-inch LCD display, Triton2 allows you to see clearly in all conditions with its large clear colour display 100% free from condensation or fogging.
• Efficient LCD Technology: Transflective LCD technology uses reflected ambient light to enhance day-time visibility, providing the clearest sailing dedicated display available. LED backlighting provides highly adjustable illumination when required, making Triton2 exceptionally efficient and extending time available from your battery capacity.
• Easy to Use: Triton2 provides simple on-screen menus controlled by soft-touch and reliable waterproof buttons.
• Low Profile Design: At just 8mm thin the Triton2 instrument adds a sleek look to any boat.
• NMEA 2000(R) Certified: NMEA 2000 certification means you can be confident when adding Triton2 to an existing NMEA 2000 system. NMEA 2000 certification also opens up a wide variety of future expansion options for your Triton2 system..
• Easy Installation: A straight-forward front mounting method and a clip-on bezel over the (4) mounting screws combine with a single NMEA 2000 connection carrying both power and networked data.
• Autopilot Integration: Triton2 will display B&G Pilot data on a clear status screen.

The full-colour Triton2 Display provides sailors with a clear visual representation of key instrument data including Speed, Depth, Wind, Heading, AIS targets, GPS data and more.

An Optically Bonded display means absolutely zero condensation or fogging, while transflective LCD technology provides exceptional contrast and visibility - day or night - while consuming less power than traditional backlight-only displays. The flexible, NMEA 2000(R) certified, Triton2 Display can be integrated into a wider navigation system and also be combined with a Triton2 Pilot keypad and NAC autopilot computer to create a complete autopilot control system, featuring B&G sail-specific autopilot steering algorithms.

Specifications

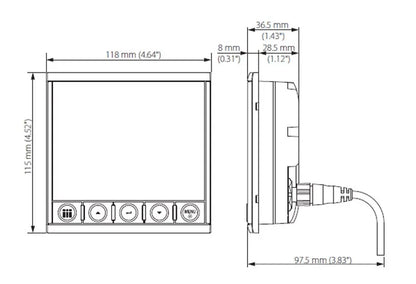

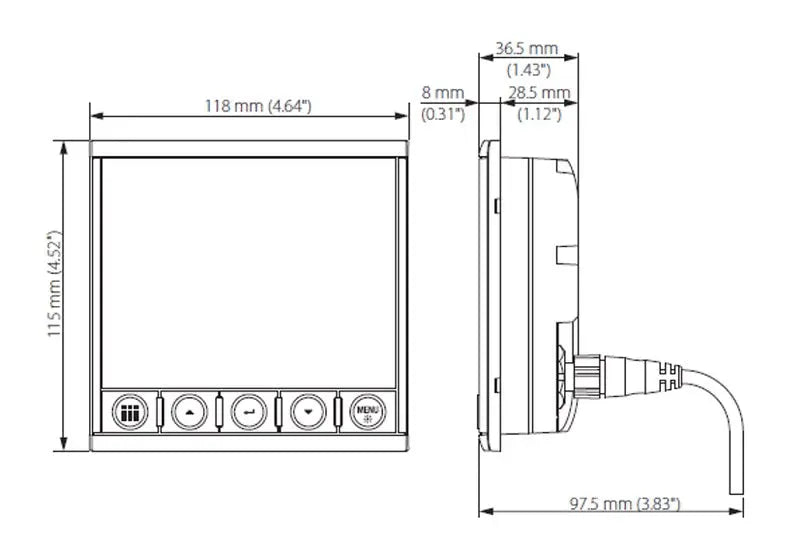

Dimensions118 x 115 x 28mm (4.6 x 4.5 x 1.1 in)

Weight
0.32 kg (0.7 lbs)

Power Consumption
1.8 Watts (MAX)

Network Load
3 LEN

Colour
Black

Display Size
4.1 (diagonal). 4:3 Aspect ratio

Display Type
Transmissive TFT-LCD

Innovative Features of the B&G Triton2

The B&G Triton2 digital instrument display is engineered to deliver clear, precise sailing data in real-time. With a bright, high-contrast screen, it offers excellent visibility in direct sunlight, allowing sailors to read critical information easily. The display supports a wide range of data inputs, including wind speed, depth, and navigation details, making it an indispensable tool for both recreational and professional sailors. Its intuitive interface simplifies access to crucial metrics, improving decision-making and enhancing overall sailing performance on any vessel.

User-Friendly Interface and Easy Integration

Designed with user experience in mind, the B&G Triton2 features a touchscreen interface that is both responsive and straightforward. The layout ensures quick navigation through menus, enabling users to customize data views according to their preferences. Additionally, the device seamlessly integrates with various NMEA 2000 networks and other B&G instruments, providing centralized control over multiple marine systems. This compatibility makes the Triton2 a versatile choice, suitable for upgrading existing setups or outfitting new boats with advanced technology.

Durability and Reliability for Marine Environments

Built specifically for the challenging conditions of marine environments, the B&G Triton2 is robust and waterproof. Its rugged construction resists saltwater corrosion, extreme temperatures, and vibrations from rough seas. This durability ensures consistent performance, even during long voyages or adverse weather conditions. The device’s reliable wireless connectivity options allow it to function effectively without interruptions, giving sailors peace of mind while navigating. With the Triton2, users benefit from both cutting-edge technology and trusted resilience on the water.
