SKU:BNG00015793001
B&G V100-B VHF/AIS System with GPS500
B&G V100-B Blackbox VHF Radio System
Model: 000-5793-001
With a possible 8 connected handsets (4 wired and 4 wireless) and 4 external speakers, stay connected from anywhere on board. V-100-B is bundled with GPS-500 for enhanced AIS functionality.

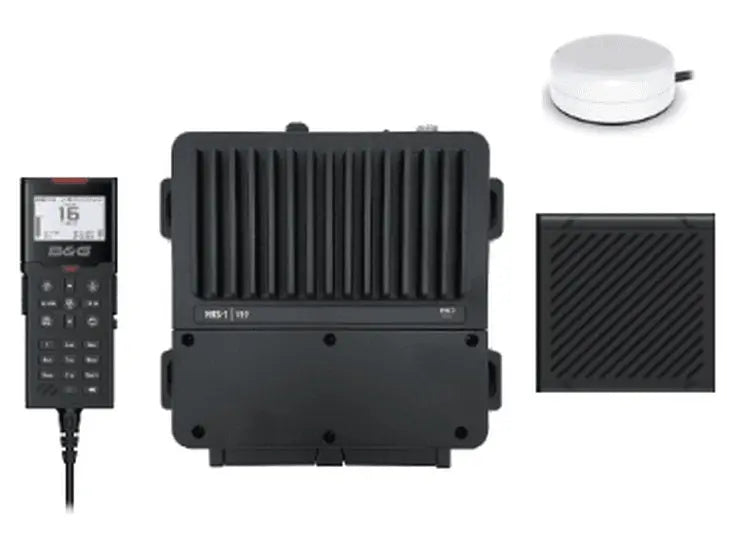

System comes with NRS-2 VHF Blackbox module with Class B AIS built in, GPS500 GPS Antenna, one H100 wired handset and one SP100 speaker.
The V100-B includes a Class B AIS transceiver, which not only receives AIS targets but also transmits your boat's position to nearby AIS-equipped vessels. This helps other mariners to spot your boat through any conditions, day or night. A built-in AIS receiver monitors the position of other AIS-equipped vessels, helping you to proactively avoid collisions in crowded harbours and waterways. AIS information can be viewed on the radio's built-in screen, or overlaid on your chart or radar screen through a compatible multifunction display.
The V100-B comes with 1 wired handset and 1 speaker, but you can add up to 4 more B&G H60 wireless and 3 more H100 wired handsets along with up to 3 additional external speakers, doubling your radio as an on-board intercom. Each wireless handset with inductive charging, duplicates your radio's display and controls on a large, easy-to-read screen, viewable in all lights, with intuitive user interface. Access all key functions with channel scan and favourites, alphanumeric keypad, clear audio, handset station naming and 60 second audio rewind.
Specifications
Local/Distant control:Yes
Position polling:
Yes
Group call:
Yes
Call logs:
Yes - 20 individual and 10 distress
Channel naming:
Yes
Handset naming:
Yes
Dual watch / Tri watch:
Yes
Favourite channel scan:
Yes
All scan:
Yes
User programmable MMSI:
Yes
User programmable ATIS ID:
Yes
MMSI and NAME directory:
Yes - 50 vessel contacts and 20 group contacts
Software updates:
Yes, via NMEA 2000
NRS-1 / NRS-2 - BLACKBOX
Power supply:
12 V DC battery system
Nominal operating voltage:
+ 13.6 V DC
Low battery alert:
10.5 V DC +/- 0.5 V
Over voltage protection:
> 15.8 V +/- 0.5 V
Current drain (transmit):
6 A @ 25 W / 1.5 A @ 1W (12 V DC)
Current drain: NRS-1 (standby, 1 FHS):
Less than 400 mA in standby
Current drain: NRS-2 (standby, 1 FHS):
Less than 650 mA in standby
Replacement fuse:
10 A, mini-blade type
Temperature range:
-20 oC to +55 oC (-4 oF to 131 oF)
VHF antenna connector:
SO-239 (50 ohm)
AIS antenna connector (NRS-2):
SO-239 (50 ohm)
GPS antenna connector:
SMA (female)
Wireless connector:
RP-SMA (female)
Compass safe distance:
0.5 m (1.5 feet)
NMEA 0183 input NRS-1 / NRS-2:
RMC, GGA, GLL, GNS
NMEA 0183 input NRS-2:
HDG, HDM, HDT
NMEA 0183 output NRS-1 / NRS-2:
DSC, DSE, MOB, VDM
NMEA 0183 output NRS-2:
VDO
External Speaker output power:
4 W @ 4 ohm x 4 outputs
External speaker:
4 ohm, minimum 5 W
Hailer output power:
25W @ 4 ohm
Hailer speaker:
4 ohm, minimum 30 W
Waterproof:
IPx5
Transciever
Usable channels (country specific):
International, USA, Canada, Weather
DSC mode:
Class D (Global) with dual receiver (individual CH70)
Transmitter
Transmitter Frequency range:
156.025 - 157.425 MHz
Output power:
25 W (23 2) / 1 W (0.8 0.2)
Transmitter protection:
Open / short circuit of antenna
AIS (CLASS-B) (NRS-2 ONLY)
AIS mode:
Class-B CS (CSTDMA)
AIS receive function:
Yes, dual receivers (receive only)
AIS transmit function:
Yes, single
BUILT-IN GPS RECEIVER
Number of channels:
72 channels
Receiving frequency:
1575.42 MHz
Horizontal accuracy:
<10 m
Position fixing time:
Warm start: 30s, Cold start: 90s
WIRELESS SPECIFICATION
Wireless standard:
802.11 b/g/n20
Operating frequency:
2412~2472 MHz (for EU); 2412-2462 MHz (for US)
What's in the Box:
The B&G V100-B VHF/AIS system brings state-of-the-art communication technology to your vessel, integrating VHF radio functionality with AIS (Automatic Identification System). This integration ensures reliable voice communication at sea while simultaneously providing crucial AIS data for vessel tracking and collision avoidance. Designed specifically for sailors and marine professionals, the B&G V100-B supports DSC (Digital Selective Calling), enhancing emergency responsiveness and ease of contact. Its robust design and intuitive interface make it an indispensable tool for safe navigation in both coastal and offshore waters.
Complementing the B&G V100-B, the GPS500 enhances navigation accuracy by delivering reliable GNSS position data. This compact GPS receiver offers fast satellite acquisition and high precision, ensuring that your vessel’s AIS data is accurately informed by your real-time location. The GPS500 seamlessly integrates with the VHF/AIS system, enabling sailors to monitor their position, speed, and heading with confidence. This synergy between communication and navigation elements is essential for optimizing route planning and safety on the water.
The B&G V100-B system prioritizes ease of use with its bright, sunlight-readable display and straightforward menu navigation, suitable for all skill levels. Its built-in AIS receiver enhances situational awareness by displaying nearby AIS-equipped vessels, reducing the risk of collisions. Moreover, the DSC functionality allows instant distress alerts at the push of a button, vital for emergency situations. Overall, this integrated system significantly raises marine safety standards while providing seamless communication and navigation help tailored to today’s demanding boating environment.
