B&G V100 VHF System: Advanced Marine Communication Solutions

B&G V100 VHF System

B&G V100 Blackbox VHF Radio System

Model: 000-15644-001

• Class D DSC approved VHF radio
• Integrated GPS receiver
• Connect up to 4 wireless and 4 wired handsets
• Add an optional loudhailer and up to 4 external speakers
• NMEA 0183(R) and NMEA 2000(R) connectivity
• 60 second audio rewind
• Configurable external speakers with volume offsetting
• Handset backlight settings can be grouped with NMEA2000 backlight groups so MFD's and VHF Radios can have backlight controlled together
• Track Buddy - track up to 5 "buddies" using their VHF MMSI

Stay safer on the water with the B&G V100 VHF marine radio. With a possible 8 connected handsets (4 wired and 4 wireless) and 4 external speakers, stay connected from anywhere on board.

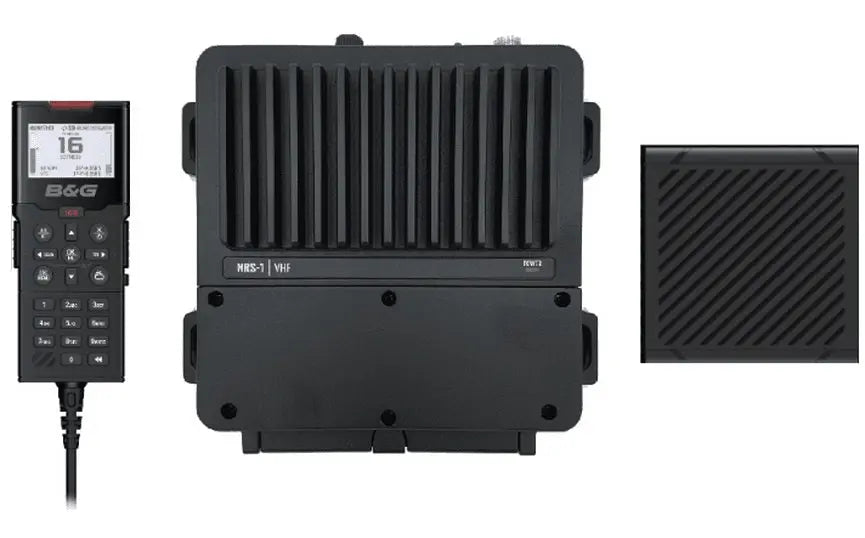

Includes NRS-1 VHF Blackbox module and one H100 wired handset and one SP100 speaker. Add up to 4 total wired handsets, 4 speakers and 4 wireless H60 handsets.

The V100 comes with 1 wired handset and 1 speaker, but you can add up to 4 more B&G H60 wireless and 3 more H100 wired handsets along with up to 3 additional external speakers, doubling your radio as an on-board intercom. Each wireless handset with inductive charging, duplicates your radio's display and controls on a large, easy-to-read screen, viewable in all lights, with intuitive user interface. Access all key functions with channel scan and favourites, alphanumeric keypad, clear audio, handset station naming and 60 second audio rewind.

Specifications

System FeaturesYes

Local/Distant control:
Yes

Position polling:
Yes

Group call:
Yes

Call logs:
Yes - 20 individual and 10 distress

Channel naming:
Yes

Handset naming:
Yes

Dual watch / Tri watch:
Yes

Favourite channel scan:
Yes

All scan:
Yes

User programmable MMSI:
Yes

User programmable ATIS ID:
Yes

MMSI and NAME directory:
Yes - 50 vessel contacts and 20 group contacts

Software updates:
Yes, via NMEA 2000

NRS-1 - BLACKBOX

Power supply:
12 V DC battery system

Nominal operating voltage:
+ 13.6 V DC

Low battery alert:
10.5 V DC +/- 0.5 V

Over voltage protection:
> 15.8 V +/- 0.5 V

Current drain (transmit):
6 A @ 25 W / 1.5 A @ 1W (12 V DC)

Current drain: NRS-1 (standby, 1 FHS):
Less than 400 mA in standby

Replacement fuse:
10 A, mini-blade type

Temperature range:
-20 oC to +55 oC (-4 oF to 131 oF)

VHF antenna connector:
SO-239 (50 ohm)

GPS antenna connector:
SMA (female)

Wireless connector:
RP-SMA (female)

Compass safe distance:
0.5 m (1.5 feet)

NMEA 0183 input NRS-1 / NRS-2:
RMC, GGA, GLL, GNS

NMEA 0183 output NRS-1 / NRS-2:
DSC, DSE, MOB, VDM

External Speaker output power:
4 W @ 4 ohm x 4 outputs

External speaker:
4 ohm, minimum 5

Hailer output power:
25W @ 4 ohm

Hailer speaker:
4 ohm, minimum 30 W

Waterproof:
IPx5

Weight:
1.46 kg (3.2 lbs)

Transciever

Usable channels (country specific):
International, USA, Canada, Weather

Channel spacing:
25 KHz

Frequency stability:
5 ppm

Frequency control:
PLL

DSC mode:
Class D (Global) with dual receiver (individual CH70)

Transmitter

Transmitter Frequency range:
156.025 - 157.425 MHz

Output power:
25 W (23 2) / 1 W (0.8 0.2)

Transmitter protection:
Open / short circuit of antenna

WIRELESS SPECIFICATION

Wireless standard:
802.11 b/g/n20

Operating frequency:
2412~2472 MHz (for EU); 2412-2462 MHz (for US)

Tx Power (802.11 b - 11 Mbps):
9.77 dBm (Declaration for EU Compliance)

What's in the Box:

• NRS-1 Marine VHF System Blackbox

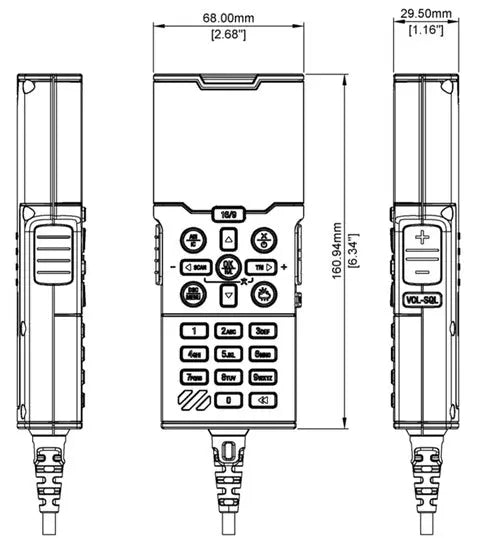

• HANDSET,H100,WIRED
• SP100 Speaker

Outstanding Performance and Reliability

The B&G V100 VHF System is designed to deliver outstanding performance and reliability for marine communication. It supports clear voice transmission, ensuring you stay connected with your crew and other vessels. This system is built specifically for the harsh marine environment, offering robust resistance to water and corrosion. Its dependable operation is critical for safety at sea, making the B&G V100 VHF System a trusted choice for professional mariners and boating enthusiasts alike.

User-Friendly Interface and Easy Installation

Featuring an intuitive and user-friendly interface, the B&G V100 VHF System allows for quick and easy operation even in challenging conditions. The system is designed with a simple keypad and clear display, enabling effortless channel selection and communication. Installation is straightforward, compatible with existing marine electronics setups to save time and reduce complexities. This ease of use makes the B&G V100 VHF System highly accessible for both experienced sailors and new users.

Advanced Safety and Connectivity Features

The B&G V100 VHF System incorporates advanced safety features such as Digital Selective Calling (DSC) for automated distress signaling and efficient vessel-to-vessel communication. Its integrated GPS features enhance navigation and emergency response capabilities, boosting overall onboard safety. With multiple receiver modes and noise-canceling technology, this system ensures clear and reliable communication in busy marine environments, helping secure your safety and confidence on every voyage.
