B&G Vulcan 7R: Powerful 7-inch Multifunction Display for Marine Navigation

B&G Vulcan 7R 7in MFD

B&G Vulcan 7 7-inch chartplotter and radar display with global basemap

Model: 000-14082-001

• Easy to use multi-touch display
• Dedicated sailing features for cruising or racing: SailSteer, SailingTime, RacePanel, Laylines
• Easy to integrate - Connect Vulcan to an existing system and add basic sailing components
• Broadband RadarTM and ForwardScanTM ready
• Integrated Wi-Fi
• Control your B&G Pilot
• Instrument data display

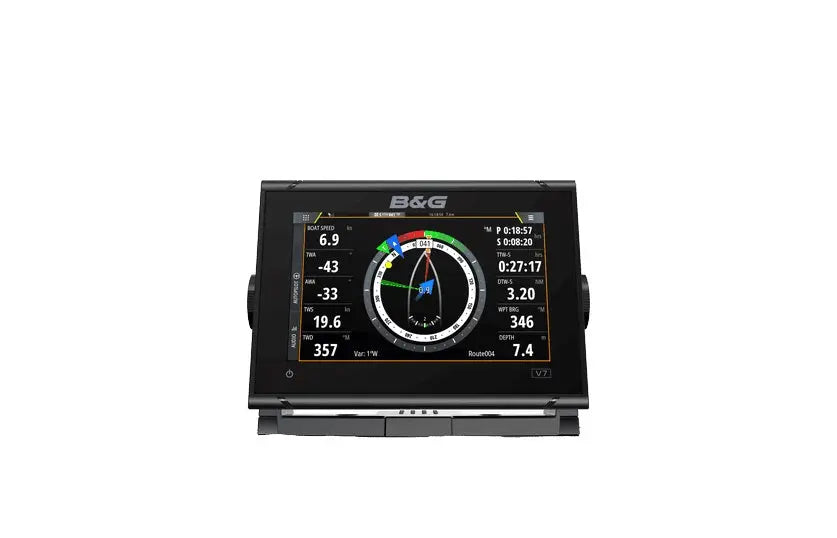

The B&G Vulcan 7 is a great value, sailing chartplotter designed for coastal cruising and club racing. This easy-to-use, intuitive 7-inch multi-touch screen is packed with B&G's unique sailing features including SailSteer and RacePanel. Simply integrate with your existing system, expansion is simple as Vulcan is NMEA 2000(R), Broadband RadarTM, ForwardScanTM and autopilot ready; and features built-in 10Hz GPS and Wi-Fi.

B&G's Vulcan range of sailing chartplotters take the guesswork out of sailing. Whether you're an experienced sailor or just starting out, Vulcan is packed with features that will help you get the most from your time on the water.

We've designed our Vulcan chartplotters to be as intuitive as a tablet or smartphone. The low-profile, super-bright display is visible even in direct sunlight, and the responsive touch screen gives fingertip control, even in flying spray and a rough sea state. Pinch-to-zoom, swipe and tap controls let you input waypoints and routes and view chart details with ease.

Let Vulcan guide you safely to your destination: place waypoints and routes with a single tap on the chart and let Vulcan take you there with clear, intuitive graphics and data for guidance. Add a compatible chart card to benefit from autorouting and let Vulcan's intelligent software choose the best and safest route to your destination.

Enjoy safe and precise navigation with a Vulcan sailing chartplotter and C-MAP DISCOVER charts on your sailboat. Offering ultra-wide coverage for the US and Canada, C-MAP DISCOVER charts include full-featured Vector Charts, Custom Depth Shading, Tides & Currents and the very best of C-MAP high-resolution Bathymetric contours, including integrated Genesis(R) data. Planning a day on the water is simple with C-MAP Easy RoutingTM and always have the latest DISCOVER chart data with 12 months of free online updates. If you would rather select your own chart, Vulcan is compatible with C-MAP, Navionics(R), NV Digital and more.

Put Vulcan at the heart of your boat and take control of your B&G autopilot from your Vulcan's touchscreen. With an installed controller elsewhere, the intuitive controls can be accessed from any screen with a simple tap and allow you to alter course, tack, gybe, sail to wind or compass. Take advantage of the advanced sailing algorithms that make B&G Pilots as good as the best helmsman - all from your Vulcan's touch screen.

Know exactly where you are at all times with an inbuilt, high accuracy 10Hz GPS receiver.

Get up and running quickly: Vulcan chartplotters are optimised for sleek flush mounting, standing only 8mm proud of the bulkhead for a low-profile 'glass helm' look. Alternatively, mount in minutes using the supplied bracket on horizontal, vertical or overhead surfaces.

Specifications

Display Resolution800x480

Screen Brightness
1200 nits

Waterproofrating
IPX6 & 7

Operating Temperature Range
-15 degC to +55 degC (5 deg F to 131 deg F)

Storage Temperature Range
-20 degC to +60 degC (4 degF to 140 degF)

SD Card Storage
1 Micro SD slot, max. 32GB each. >32 GB format to NTFS

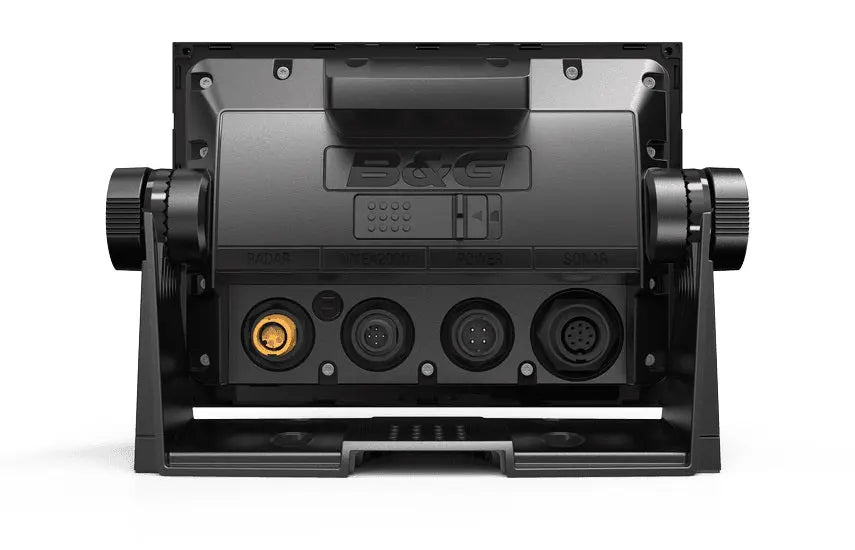

Ethernet Ports
1 x 5 pin yellow connector x 100 Mbits/s. Radar and Sirius (USA only) connectivity only

NMEA 2000 Connectivity
1 x NMEA 2000 Micro-C port, 1 LEN

Weight
1.320 kg (2.91lb)

Update rate
10 Hz

Power Consumption typical
12 W

Supply Voltage
12V (10 - 17V)

Dimensions W x H x D
197 mm x 141 mm x 82.7 mm (7.56 x 5.55 in x 3.26 in) (no bracket)

Warranty Period
2 Years

Power Consumption max
20 W

GPS Receiver Channels
32 Channels

Recommended Fuse Rating
3A

Waypoints

Seamless Navigation with B&G Vulcan 7R

The B&G Vulcan 7R is designed to elevate your marine navigation experience with its bright 7-inch touchscreen display that ensures clear visibility even in direct sunlight. This multifunction display combines powerful GPS capabilities and detailed chart plotting to help sailors confidently navigate coastal waters or open seas. With a responsive interface and intuitive controls, the Vulcan 7R allows quick access to essential navigation data, making it an indispensable tool for both amateur and professional mariners.

Advanced Sailing Features for Performance and Safety

Equipped with sailing-specific features, the B&G Vulcan 7R supports tactical decision-making and race strategies. It offers real-time wind and boat performance data, waypoint navigation, and advanced sailing charts. The system integrates seamlessly with other B&G instruments, providing comprehensive boating metrics that enhance safety and performance on the water. Whether racing or cruising, users benefit from precise data for optimal sail trim and maneuvering.

Robust Design and Connectivity Options

Built for tough marine environments, the B&G Vulcan 7R features a rugged and waterproof housing that withstands harsh weather conditions. Connectivity options include Wi-Fi and NMEA 2000 compatibility, enabling easy integration with existing marine electronics and sensor systems. This versatility ensures users can expand their setup or update firmware effortlessly, keeping the device current with the latest navigation technologies and charts needed for safe voyages.
