B&G WS310 Masthead with 20m Cable and N2K Interface

Comprehensive Overview of the B&G WS310 Wind Sensor

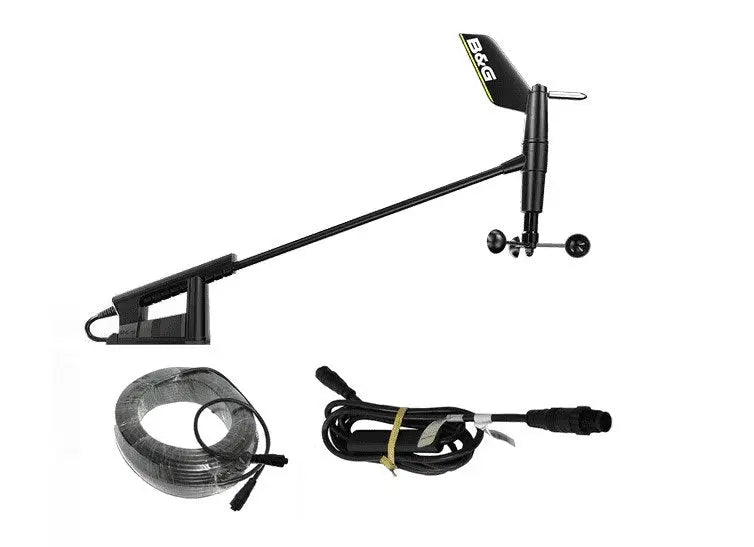

B&G WS310 Masthead with 20m Cable and N2K Interface

B & G WS310 (wired) wind sensor with 20 m (65.5 ft) mast cable and interface for connection to NMEA 2000(R) networks

Model: 000-14382-001

• High accuracy for the best instrument and autopilot performance. High performance aerodynamic design is the result of over 500 individual wind tunnel tests
• Wide compatibility - direct NMEA 0183 output or connect via interface to a NMEA 2000(R) network
• Straight-forward installation. Single cable, cable runs of up to 80m

A new range of high precision B&G wind sensors, designed for cruising and club racing sailors. An evolution of B&G's previous sensors, developed through hours of iterative testing to provide the best solution for sailing wind sensors. The WS300 series meets the following design objectives:

Designed to provide highly accurate wind data in all conditions at all points of sail and heel. WS300 has been benchmarked against multiple different sensors in over 500 individual wind tunnel tests.

Specifications

WaterproofIPx6 & IPx7

Operating temperature
-25 degC to 65 degC

Power usage
15 mA at 12 V DC

Wind speed resolution
0.05 m/sec (0.1 Knots)

Wind speed accuracy
+/-0.1m/sec (0.2 Knots) from 1 - 40 m/sec (2-80 Knots)

Wind speed range
0.25 - 50 m/sec (0.5-97 Knots)

Wind angle resolution
0.1 deg

Wind angle accuracy
+/- 0.5 deg

Data output
NMEA0183 'MWV' sentence at 10Hz

What's in the Box:

• WS310 Wired Wind Sensor
• WS310 Wired Interface Only
• WS300/700 20M (65 feet) CABLE

Advanced Features of the B&G WS310

The B&G WS310 is a high-performance masthead wind sensor designed specifically for marine environments. Featuring a robust design, it includes a 20-meter cable for flexible installation and an N2K interface for seamless integration with modern marine electronics. This sensor accurately measures wind speed and direction, providing sailors and boat operators with reliable real-time data critical for navigation and weather monitoring. Its rugged construction ensures durability in harsh offshore conditions, making the B&G WS310 an essential tool for enhanced sailing performance and safety.

Installation and Compatibility

Installing the B&G WS310 masthead wind sensor is straightforward thanks to its included 20-meter cable, which allows versatile mounting options on different types of vessels. The sensor's N2K interface enables effortless connection to a wide range of current marine instruments and multi-function displays, simplifying data sharing across all onboard systems. Whether upgrading an existing setup or fitting a new vessel, the B&G WS310 pairs compatibility with convenience, allowing users to optimize their wind monitoring capabilities without complex rewiring or additional adapters.

Why Choose B&G WS310 for Your Vessel?

Choosing the B&G WS310 means investing in precise, reliable wind measurement technology trusted by professionals worldwide. Its proven accuracy supports better decision-making offshore by delivering vital wind data needed for weather routing and sailing efficiency. The integrated N2K interface ensures future-proof connectivity, while the 20-meter cable offers ample reach for ideal sensor positioning. Built to withstand corrosive saltwater environments and extreme weather, the B&G WS310 masthead wind sensor is a dependable choice for sailors aiming to enhance safety, comfort, and performance on the water.
