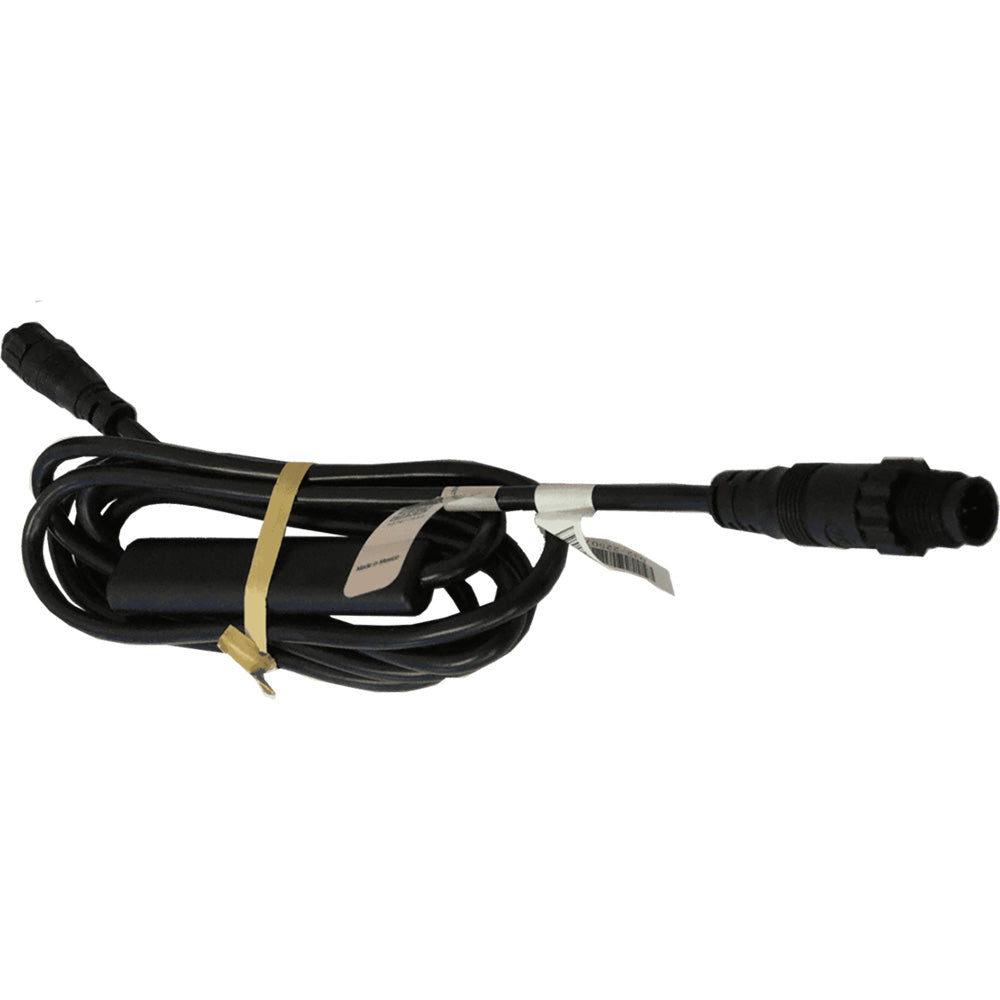

B&G WS310 Wired Interface, Part Number 000-14389-001

WS310 Wired Interface

WS310 (wired) Interface for use with WS310 Wind Sensor, allows connection to your NMEA 2000 network.

Features:

• Interfaces a WS310 wind sensor to an NMEA 2000 network

Specifications:

• NMEA 0183 Sentences supported: MWV, R
• NMEA 2000 Connectivity: 1 x Micro-C port, 1 LEN
• Supply Voltage: 12V DC (9 - 16V DC)
• Operating Temperature Range: -15C to +55C (5F to 131F)
• Storage Temperature Range: -20C to +60C (4F to 140F)
• Waterproof Rating: IPX7
• Compass Safe: 300mm (12)
• Dimensions W x H x D: 90 x 20 x 10mm (3.5 x 0.8 x 0.4)
• Warranty: 2 Years

B&G WS310 Wired Interface

The B&G WS310 Wired Interface, part number 000-14389-001, connects a compatible WS310 wind sensor to an NMEA 2000 network. It provides a practical wired integration solution for marine navigation systems, allowing wind data from the WS310 sensor to be shared with compatible network displays, instruments, and other onboard electronics. The interface is designed for straightforward connection through an NMEA 2000 Micro-C port and uses one Load Equivalency Number (LEN).

The interface supports NMEA 0183 MWV and R sentences, helping integrate wind information into systems that use these common marine data formats. It operates on a 12-volt DC supply and accepts input from 9 to 16 volts DC, making it suitable for standard marine electrical systems. Its IPX7 waterproof rating helps protect the unit from temporary water immersion when properly installed, while the operating temperature range of 5 to 131 degrees Fahrenheit supports dependable performance in a variety of boating environments.

Compact and designed for marine use, the B&G WS310 Wired Interface provides a clean connection between the WS310 wind sensor and an NMEA 2000 network. Its storage temperature range is 4 to 140 degrees Fahrenheit, and it has a two-year warranty for added ownership support. Use this interface when installing a wired WS310 wind sensor and connecting wind data to a compatible B&G or NMEA 2000 marine electronics system.

Features:

• Interfaces a B&G WS310 wind sensor with an NMEA 2000 network

• Provides one NMEA 2000 Micro-C port with one LEN

• Supports NMEA 0183 MWV and R sentences

• Operates with a 12-volt DC supply from 9 to 16 volts DC

• IPX7 waterproof rating for marine installation environments

• Operating temperature range from 5 to 131 degrees Fahrenheit

• Storage temperature range from 4 to 140 degrees Fahrenheit

• Includes a two-year warranty
