SKU:BNG00014383001

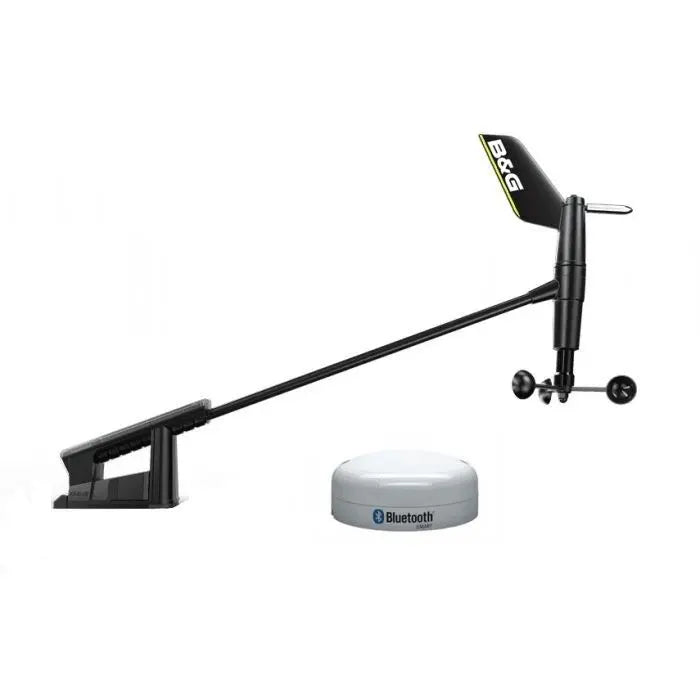

B&G WS320 Wireless Wind Sensor with Interface
B&G WS320 Wireless Wind Sensor including Wireless Interface
Model: 000-14383-001
A high precision wireless wind sensor from B&G, designed for cruising and club racing sailors. The WS320 wireless wind sensor pack offers a high-performance solution, with exceptional data accuracy and improved aerodynamics, which is easy to install.
Designed to provide highly accurate wind data in all conditions, at all points of sail and heel. The WS320 has been benchmarked against multiple different sensors in over 500 individual wind tunnel tests.
Easy to install and light-weight, ideal for smaller boats * - without compromising performance for wireless convenience. The WS320 has the same accuracy (both wind angle and wind speed) as the wired version, while outputting wind at a supper smooth 5 times every second.
As the most exposed sensor on a yacht, the wind sensor - critical for instruments and autopilot steering - must meet an exceptionally high standard. In addition to B&G's extreme testing program, the WS320 sensors have been subject to combined field tests of over 200,000 hours.
* Note: for mast heights up to 25m (80 feet), subject to individual installation and local variables.
Specifications
Weight0.32 kg (0.7 lbs)
Waterproof
IPx6 and IPx7
Temperature
-25 degC to 65 degC
Power usage
Solar powered
Wind speed resolution
0.05 m/sec (0.1 Knots)
Wind speed accuracy
+/- 0.1 m/sec (0.2 kt) from 1 - 40 m/sec (2 - 80 kt)
Wind speed range
0.25 - 50 m/sec (0.5 - 97 knots)
Wind angle resolution
0.1 deg
Wind angle accuray
+/- 0.5 deg
Wireless connectivity
<=30m (98 ft)
Data output
Apparent wind speed and angle at 5 Hz
Base station
Dimensions
90 mm, H 38 mm ( 3.54 in H 1.50 in)
Power supply and interface
9-16 V DC via Micro-C network
Power consumption
1.2 W (<100 mA at 12 V DC)
Network Load
2 LEN (100 mA)
Operating Temperature
-25 degC to +60 degC
Storage Temperature
-40 degC to +85 degC
Humidity
66 degC, 95% RH, 18 hours
Environmental protection
IPx7
Connection
Micro-C cable
What's in the Box:
The B&G WS320 is a cutting-edge wireless wind sensor designed specifically for marine environments. It transmits wind speed and direction data directly to compatible B&G displays without the hassle of cables. This wireless capability allows for easier installation and maintenance while maintaining strong signal reliability, making it ideal for both recreational sailing and professional racing. By integrating effortlessly with your vessel’s existing instruments, the B&G WS320 ensures you receive precise wind information critical for navigation and performance tuning.
Constructed with high-quality materials, the B&G WS320 is engineered to endure extreme weather and saltwater exposure. Its rugged build guarantees long-lasting durability even in the toughest sailing environments. The sensor’s compact design reduces wind shadowing, providing cleaner data with less interference. Additionally, the WS320’s weatherproof interface ensures that the sensor maintains optimal functionality, allowing sailors to rely on consistent, real-time wind data regardless of conditions out at sea.
The B&G WS320 wireless wind sensor is designed with the user in mind, featuring a simple installation process that requires minimal tools and time. The sensor’s interface enables seamless pairing with B&G displays, making setup straightforward even for those new to marine electronics. Its wireless connectivity eliminates the need for complex wiring, reducing potential points of failure. Whether upgrading an existing system or outfitting a new vessel, the B&G WS320 offers hassle-free integration with intuitive operation to keep your sailing experience smooth and informed.
