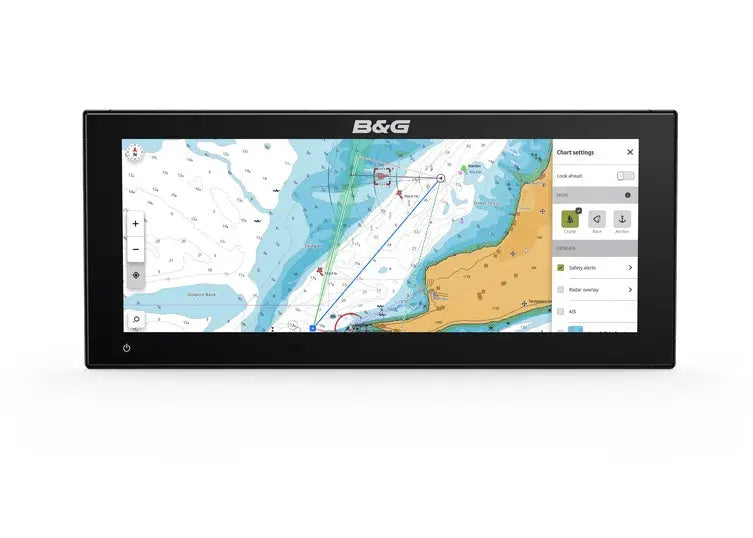

B&G Zeu S 3012 Ultrawide 12in IPS HD Display

Introducing the B&G Zeus S 3012

B&G Zeu S 3012 Ultrawide 12in IPS HD Display

B & G Zeus® S 3012 Ultrawide chartplotter AMER. 12-inch ultrawide SolarMAX IPS HD Display. Built-in GPS, WIFI. With C-MAP® DISCOVER X chart.

Model: 000-16355-001

• SolarMAX IPS HD Display: Touchscreen is viewable from all angles and in all conditions, even with polarised sunglasses
• Full Integration: Compatibility with HALO® Radars, Triton® 2 Sailing Auto Pilots, Triton 2 and Nemesis® Instruments, sensors, sonar, and more
• X-Chart Manager: Update charts directly on your device, no PC required.
• B&G App Integration: Explore charts on and off the water and enjoy 12 months’ premium subscription for free when you purchase a DISCOVER® X or REVEAL® X Chart.
• IP Camera Support: Connect an IP camera for full boat visibility.
• Easy Connectivity: Support for Wi-Fi®, Ethernet, and NMEA 2000®.

Zeus S Ultrawide delivers our most streamlined and immersive sailing experience yet. For the first time, see apps as they were meant to be seen — uninterrupted by bezels or dead space.

Zeus S Ultrawide brings perfectly-optimized splits and uninterrupted data flows that are easier to digest — u nlocking more data, more controls, more possibilities. Get ultrawide views of all our award-winning sailing features, such as SailSteer, Laylines, StartLine. And, with a selection of modes, it’s never been easier to find the right tools at the right time.

Zeus® S Ultrawide features simplified datasets for casual cruising, alongside our award-winning sailing features like LayLines and SailSteer to help you stay on course.

When it’s time to race, selecting Race Mode puts you instantly in control of powerful tools like StartLine and RacePanel .

A dedicated anchor mode delivers the simplicity and peace of mind needed for a relaxing rest stop, ensuring you don’t run aground at low tide . *Software update required

Charts never looked as good as they do on Zeus S Ultrawide. The latest C-MAP® DISCOVER® X charts are optimized specifically for the platform. The ultrawide display’s high pixel density shows super—sharp resolution like never before — letting you appreciate unprecedented levels of detail. The X-Gen charts also feature C-MAP® Safety Alerts and the X-Chart Manager for simple updates.

Specifications

Display

Size and Type
12" SolarMax IPS Ultrawide Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses

Resolution
1920 x 720 px

Viewing Angles
85° (top, bottom, left, and right)

Screen Brightness
>1000 nits

Backlight Color
White

Power

Supply Voltage
12 V DC (10 - 17 V DC min - max)

Power Consumption max
19.8 W (1434 mA at 13.8 V)

Protection
Reverse polarity and over voltage (Max 18V)

Recommended Fuse Rating
3A

Physical

Dimensions W x H x D with bracket
H: 157.9 mm (6.22") D:96.5 mm (3.80")Weight

Dimensions W x H x D without bracket
W: 337.0 mm (13.30") x H: 147.9 mm (5.82") x D: 88.5 mm (3.48")

Weight
1.5 kg (3.3 lbs)

MountingType
Rear mount (bracket supplied), Bracket mount (bracket optional)

Compass Safe Distance
50 cm (1.7 ft)

Environmental

Operating Temperature Range
-15°C to 55°C (5°F to 131°F)

Storage Temperature Range
-20°C to 60°C (-4°F to 140°F)

Waterproof rating
IPx6 and IPx7

Humidity
IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)

Shock Vibration
100,000 cycles of 20 G

Interface and connections

Interface
Multi-touch screen

Sonar Compatibility
One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 KHz, SideScan & DownScan upto 800 KHz, Network sonar modules S3100, S5100.

Ethernet
1 port (5-pin connector) Radar Compatibility: Halo Dome radars, Halo open array radars, 3G/4G, HD Radars

Weather
Sirius XM (USA Only)

USB
1 port (USB A) Output: 5 V DC, 1.5 A

External Storage
1 MicroSD slot, 1 port (USB A)

NMEA 2000
1 x NMEA 2000 Micro-C port, 1 LEN

NMEA 0183
No

GPS
Internal, 10Hz, WASS, MSAS, EGNOS

GPS Correction
10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS

GPS Position Accuracy
Horizontal Accuracy 3 m (9.8 ft)

GPS Receiver Channels
32 Channels

GPS Update rate
10Hz

J1939
No

WiFi
IEEE 802.11b/g/n

Bluetooth
Bluetooth 4.0 with support for Bluetooth Classic

Charts Supported
C-MAP Discover X, C-MAP Reveal X. Third party charts (contact venor for NEON compatible charts)

AIS
Receive AIS data over NMEA 2000

Digital Switching
C-Zone

Warranty

Warranty Period
2 Years

What's in the Box:

• Zeus® S 3012 Ultrawide Display
• M-NA-T-200-D-MS: DISCOVER X - NORTH AMERICA
• Zeus® S Ultrawide-12 Suncover
• Fuse and Fuse Holder (Not for sale)
• NSX 3012UW, ZeusS Rear mount kit

Exceptional Display Quality

The B&G Zeus S 3012 is equipped with a 12-inch ultrawide IPS HD display, allowing for stunning visuals that enhance your navigation experience. The high-definition clarity helps in viewing maps and navigation aids effortlessly, even under direct sunlight. With vibrant colors and sharp details, the screen ensures that you can easily interpret vital information while out at sea. This feature is crucial because clear visibility is essential for safe navigation.

Advanced Navigation Features

This device not only excels in display quality but also boasts advanced navigation functionalities. The B&G Zeus S 3012 integrates with various navigation systems, enabling boaters to plan and execute routes with precision. It allows for real-time updates and provides critical data, so mariners stay informed about weather changes and other conditions impacting their journey. This consistency in performance is vital, especially during long voyages.

User-Friendly Interface

The B&G Zeus S 3012 is designed with user experience in mind. Its intuitive interface allows users of all skill levels to interact with the system seamlessly. Whether you are a seasoned sailor or a novice, the straightforward menu and quick access to necessary features enable you to focus on boating rather than the technology itself. This ease of use ensures that you spend less time figuring out the system and more time enjoying your time on the water.
