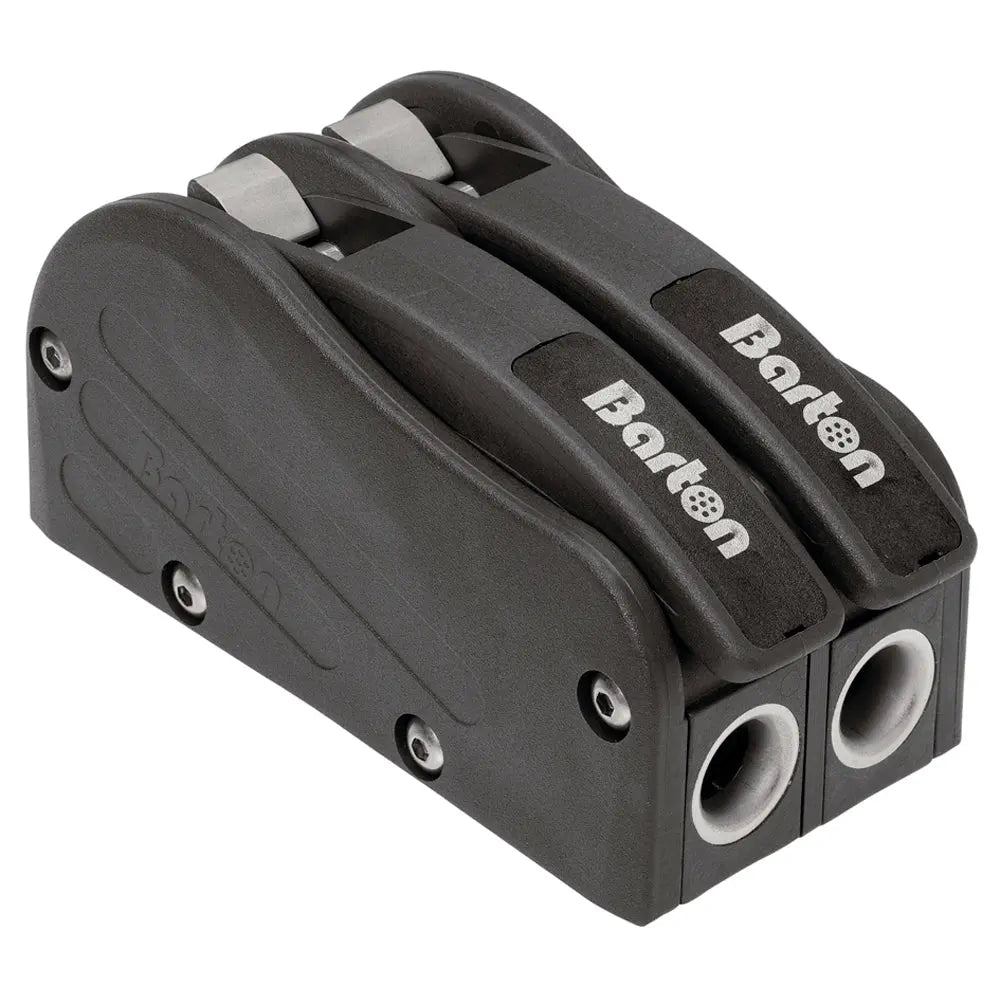

Barton Marine DO 550 Rope Clutch - Double for Cruising and Racing Yachts

DO 550 Rope Clutch - Double

The Barton D0 550 clutch is designed for cruising and racing yachts. Manufactured from modern lightweight materials to withstand the harsh marine environment. Molded parts are from high-grade plastics that are strong, light, and impact-resistant. Cams and bases are manufactured from marine grade Spectro anodized aluminum, for high wear resistance and long life. Stainless steel rope fairleads are fitted to both line entry and exit points, this feature prevents wear to both clutch and lines.

The true clutch mechanism allows the line to be adjusted through the unit in the closed, locked position with minimal slippage. Released under load is positive and requires little effort. The mechanisms opening and closing action is precise and easy to operate, even with cold, wet hands.

A unique feature of this design is the removable insert on the top face of the handle. Pop this out and you can easily replace it with printed colored inserts to denote at a glance the function of the unit (i.e. main, genoa, spinnaker, etc).

The D0 550 clutch features the advantage of a bolt-together construction which allows for ease of servicing and replacement of parts.

Features:

• Modern high-performance materials
• True clutch mechanism
• Protects lines
• Maintenance friendly
• Ergonomically designed

Technical Specifications:

• Dimension (L x W x H) - 5 x 2 x 2 (13.3 x 6.3 x 6.3 cm)
• Hole centres = 3 1/8 (79mm)
• Maximum Rope Capacity - .47 (1.2 cm)
• Maximum Holding Power 1,212 Lb (550 kg)
• Weight - 1.2 lb (544 g)

*Sold as an Individual

The Barton Marine DO 550 Rope Clutch - Double is engineered for demanding sailing conditions, offering reliable performance for both cruising and racing yachts. Constructed from advanced lightweight materials, this clutch combines durability with ease of handling, making it an essential component for managing lines efficiently. The high-grade plastics used in molded parts are impact-resistant and designed to withstand harsh marine environments, while marine-grade Spectro anodized aluminum cams and bases provide exceptional wear resistance and long service life. Stainless steel rope fairleads at both line entry and exit points help prevent line wear, ensuring smooth operation over time.
The true clutch mechanism allows you to adjust the line tension with minimal slippage, even under load, and releases positively with little effort when needed. Its precise opening and closing actions are designed for easy operation, even with cold or wet hands, facilitating quick adjustments during critical sailing moments. A unique feature of this clutch is the removable insert on the top face of the handle, enabling quick customization by replacing it with colored inserts to identify various functions such as main, genoa, or spinnaker lines. The bolt-together construction simplifies maintenance and allows for straightforward servicing or part replacement, reducing downtime and increasing reliability.
This versatile clutch is lightweight, weighing just over a pound, and features a compact design that fits easily into standard rigging setups. Its maximum rope capacity of approximately 0.47 inches (1.2 cm) and a maximum holding power of 1,212 pounds (550 kg) make it suitable for a wide range of applications on sailboats. Whether used for routine line management or high-stakes racing maneuvers, the Barton DO 550 Rope Clutch offers dependable performance, ergonomic handling, and ease of maintenance to enhance your sailing experience.

Features:

• Constructed from modern high-performance lightweight materials

• True clutch mechanism for precise line adjustment

• Designed to protect lines from wear

• Maintenance-friendly bolt-together design

• Ergonomically designed for easy operation and handling

• Removable handle insert for quick function identification

• Impact-resistant molded plastics and marine-grade aluminum components

• Stainless steel rope fairleads prevent line wear
