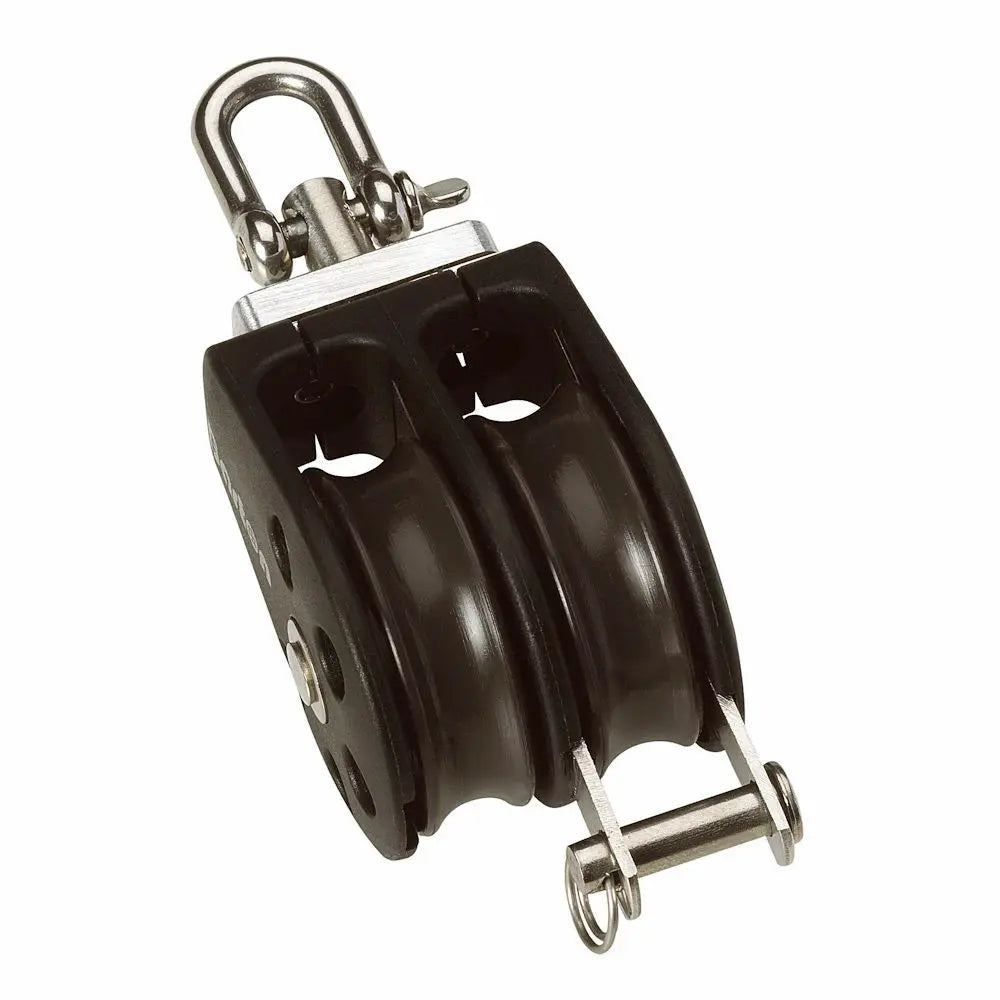

Barton Marine Size 1 30mm Plain Bearing Pulley Block with Double Swivel & Becket

Size 1 30mm Plain Bearing Pulley Block Double Swivel Becket

The Size 1 Plain Bearing Blocks have a 30mm (1 3/16) sheave. The range is designed with an internal steel frame for added strength and durability. Also available in ball bearing sheave options, the lightweight modern design is available in variations that allow for a multitude of uses on every size craft.

Suitable for up to 8mm (5/16)rope.

Specifications:

• Weight: 88g
• Dimensions: 93 40 32 mm
• Size: 1 (30MM)
• Block Type: Swivel + Becket
• No. of Sheaves: Double
• Bearing Type: Plain
• Sheave Size: 30mm x 12mm (1 3/16 x 15/32)
• Max rope diameter: 8mm (5/16)
• SWL: 355kg (782lbs)
• Break load: 710kg (1565lbs)
• Max rolling load (ball bearing blocks): 245kg (540lbs)

The Barton Marine Size 1 30mm Plain Bearing Pulley Block with Double Swivel & Becket is designed for reliable performance in various maritime applications. Featuring a 30mm (1 3/16 inch) sheave, this pulley block is constructed with an internal steel frame to ensure added strength and durability, making it suitable for demanding environments. The lightweight modern design allows for ease of handling and installation, while the plain bearing type provides smooth operation with minimal maintenance. This pulley is capable of supporting up to 8mm (5/16 inch) rope diameter, offering versatility for different rigging setups. Whether used on sailboats, small craft, or other marine equipment, it delivers dependable performance and safety.

Features:

• Size 1 pulley with a 30mm sheave for efficient load handling

• Internal steel frame construction enhances durability and strength

• Plain bearing type ensures smooth rotation with minimal effort

• Double sheave design allows for versatile rigging options

• Swivel and becket configuration for flexible attachment points

• Supports ropes up to 8mm (5/16 inch) diameter

• Maximum working load of 785 pounds (355kg) for safety and reliability

• Break load capacity of approximately 1,540 pounds (710kg) for heavy-duty applications

• Lightweight at just 3.1 ounces (88 grams), easy to install and handle
