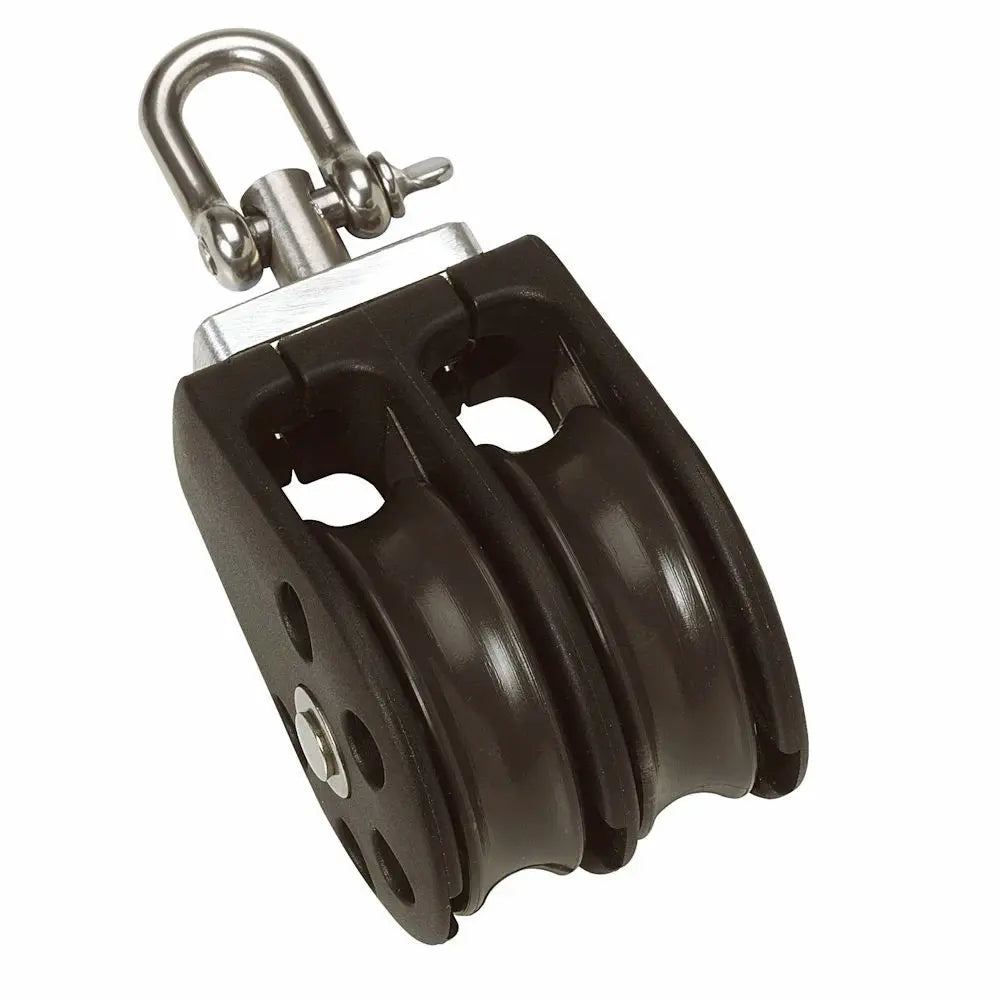

Barton Marine Size 2 35mm Double Plain Bearing Pulley Block with Swivel

Size 2 35mm Plain Bearing Pulley Block Double with Swivel

The Barton Size 2 Plain Bearing Block has a 35mm (1 3/8) sheave. This block range size provides high performance and load values in a variety of assemblies configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.

Suitable for up to 8mm (5/16) rope.

Specifications:

• Weight: 87g
• Dimensions: 83 39 38 mm
• Size: 2 (35MM)
• Block Type: Fixed Eye
• No. of Sheaves: Double
• Bearing Type: Plain
• Sheave Size: 35mm x 11mm (1 3/8 x 15/32)
• Max rope diameter: 8mm (5/16)
• SWL: 370kg (815lbs)
• Break load: 740kg (1630lbs)
• Max rolling load (ball bearing blocks): 260kg (573lbs)

The Barton Marine Size 2 35mm Double Plain Bearing Pulley Block with Swivel is designed for high performance and reliability in various sailing applications. Featuring a 35mm (1 3/8 inch) sheave, this pulley is suitable for use with ropes up to 8mm (5/16 inch) in diameter, making it a versatile choice for many rigging setups. Its internal stainless steel frame and precision components ensure durability and resistance to corrosion, ideal for marine environments. The lightweight construction, weighing just 3 ounces, allows for easy handling and installation on yachts and other vessels. The pulley's fixed eye block design facilitates secure attachment and efficient load transfer in complex rigging configurations. Additionally, users can opt for ball bearing sheaves if smoother operation is desired, further enhancing performance under demanding loads. The SWL (Safe Working Load) of 815 pounds and a break load of 1630 pounds provide confidence in its strength and safety margin. This pulley is well-suited for sailors seeking durable, lightweight, and high-capacity hardware to optimize their rigging systems.

Features:

• Size 2 (35mm) sheave for versatile rigging applications

• Plain bearing type for reliable load handling

• Double sheaves for increased mechanical advantage

• Swivel eye design for flexible positioning

• Suitable for ropes up to 8mm (5/16 inch) in diameter

• Constructed with internal stainless steel frame for corrosion resistance

• Lightweight at approximately 3 ounces for easy handling

• High safe working load of 815 pounds and break load of 1630 pounds
