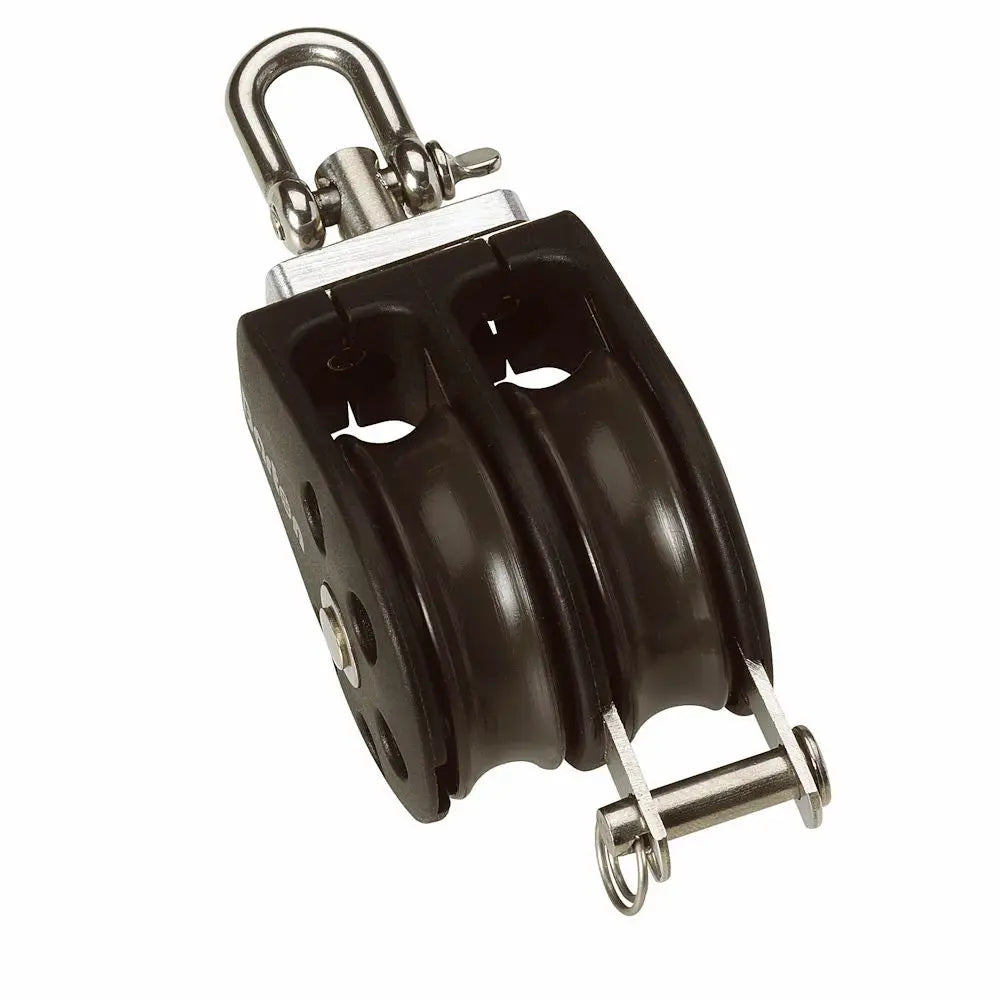

Barton Marine Size 2 35mm Plain Bearing Pulley Block with Double Swivel & Becket

Size 2 35mm Plain Bearing Pulley Block Double Swivel Becket

The Barton Size 2 Plain Bearing Block has a 35mm (1 3/8) sheave. This block range size provides high performance and load values in a variety of assemblies configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.

Suitable for up to 8mm (5/16) rope.

Specifications:

• Weight: 99g
• Dimensions: 100 39 38 mm
• Size: 2 (35MM)
• Block Type: Fixed Eye + Becket
• No. of Sheaves: Double
• Bearing Type: Plain
• Sheave Size: 35mm x 11mm (1 3/8 x 15/32)
• Max rope diameter: 8mm (5/16)
• SWL: 370kg (815lbs)
• Break load: 740kg (1630lbs)
• Max rolling load (ball bearing blocks): 260kg (573lbs)

The Barton Marine Size 2 plain bearing pulley block is designed for high-performance sailing applications, featuring a 35mm (1 3/8 inch) sheave that offers reliable operation under load. Its internal stainless steel frame and precision components ensure durability and longevity in demanding environments. The lightweight construction makes it suitable for a wide range of yacht uses, providing a balance of strength and ease of handling. This double swivel block is ideal for scenarios requiring smooth rotation and secure attachment, making it a versatile choice for various rigging configurations.

Features:

• Sheave Diameter: 35mm (1 3/8 inch) for efficient load handling

• Block Type: Fixed eye with becket for easy attachment and multi-directional movement

• Bearing Type: Plain bearing for smooth operation and minimal maintenance

• Max Rope Diameter: 8mm (5/16 inch), suitable for common sailing ropes

• Maximum Working Load (SWL): 370kg (815 lbs), ensuring safety during operation

• Break Load: 740kg (1630 lbs), providing additional safety margin

• Double Sheave: Facilitates multiple line setups and improved mechanical advantage

• Lightweight Design: Weighs only 3.5 ounces for easy handling and installation

• Corrosion-Resistant: Internal stainless steel frame enhances durability in marine environments
