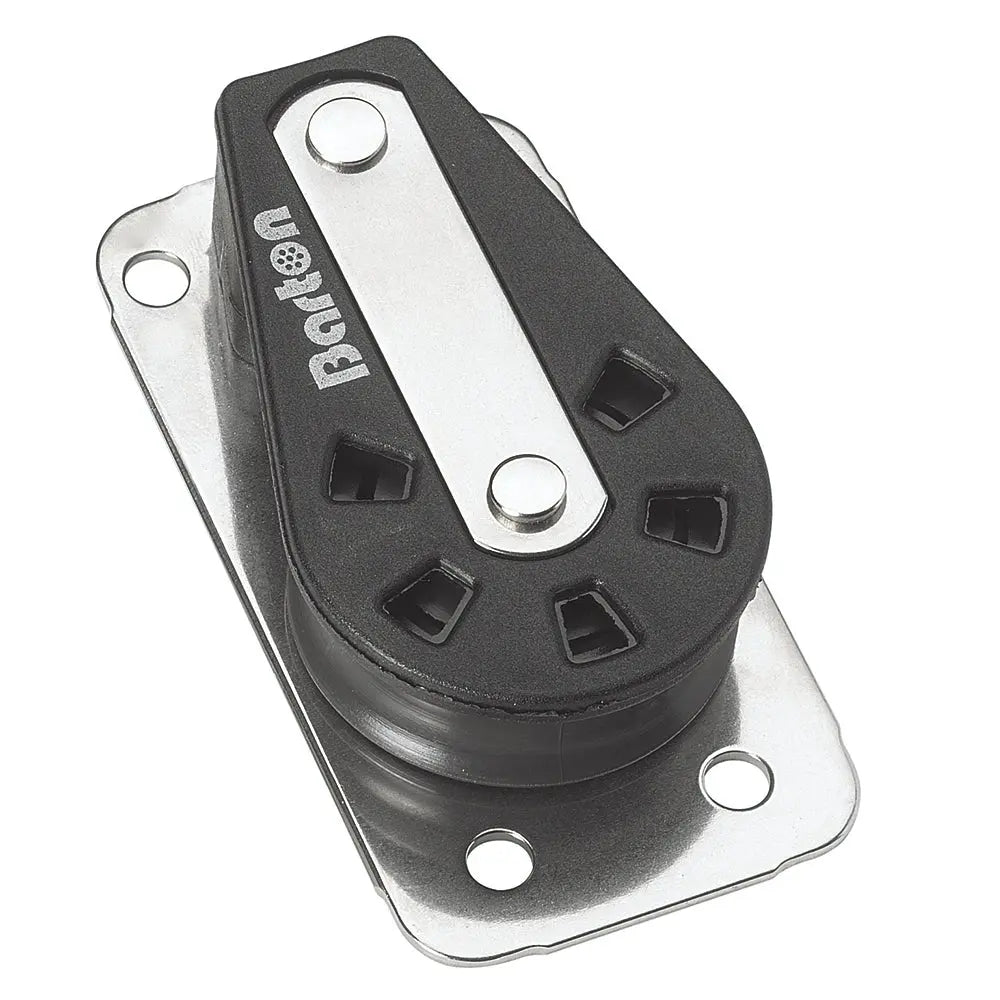

Barton Marine Size 2 Single Cheek Block N02160 - High-Load Plain Bearing Winch Block

Size 2 Single Cheek Block

Plain Bearing Blocks

Barton plain bearing blocks have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Specifications

• Sheave size: 35mm x 12mm
• Max rope diameter: 8mm
• Safe working load: 370kg / 815lbs
• Breaking load: 740kg / 1630lbs
• Length: 80mm
• Weight: 73g

The Barton Marine Size 2 Single Cheek Block N02160 is a reliable and durable component designed for demanding sailing applications. Crafted with a precision molded acetal sheave that measures 35mm by 12mm, this block offers smooth and efficient operation under high loads. The sheave runs on a large diameter brass bearing, ensuring minimal friction and consistent performance even when subjected to maximum working loads. Its construction supports ropes up to 8mm in diameter, making it suitable for a variety of rigging setups. The robust design is capable of handling a safe working load of 370kg (815lbs) with a breaking load of 740kg (1630lbs), providing a significant safety margin for demanding sailing conditions. With a compact length of 3.15 inches and a weight of just over 2.5 ounces, this block is lightweight yet built for strength and longevity.

Features:

• Size 2 single cheek block designed for high load capacity

• Plain bearing sheave made from molded acetal for smooth operation

• Large diameter brass bearing for reduced friction and durability

• Supports rope diameters up to 8mm

• Maximum working load of 370kg (815lbs) and breaking load of 740kg (1630lbs)

• Compact size for easy installation and versatile use

• Constructed by Barton Marine for quality and reliability
