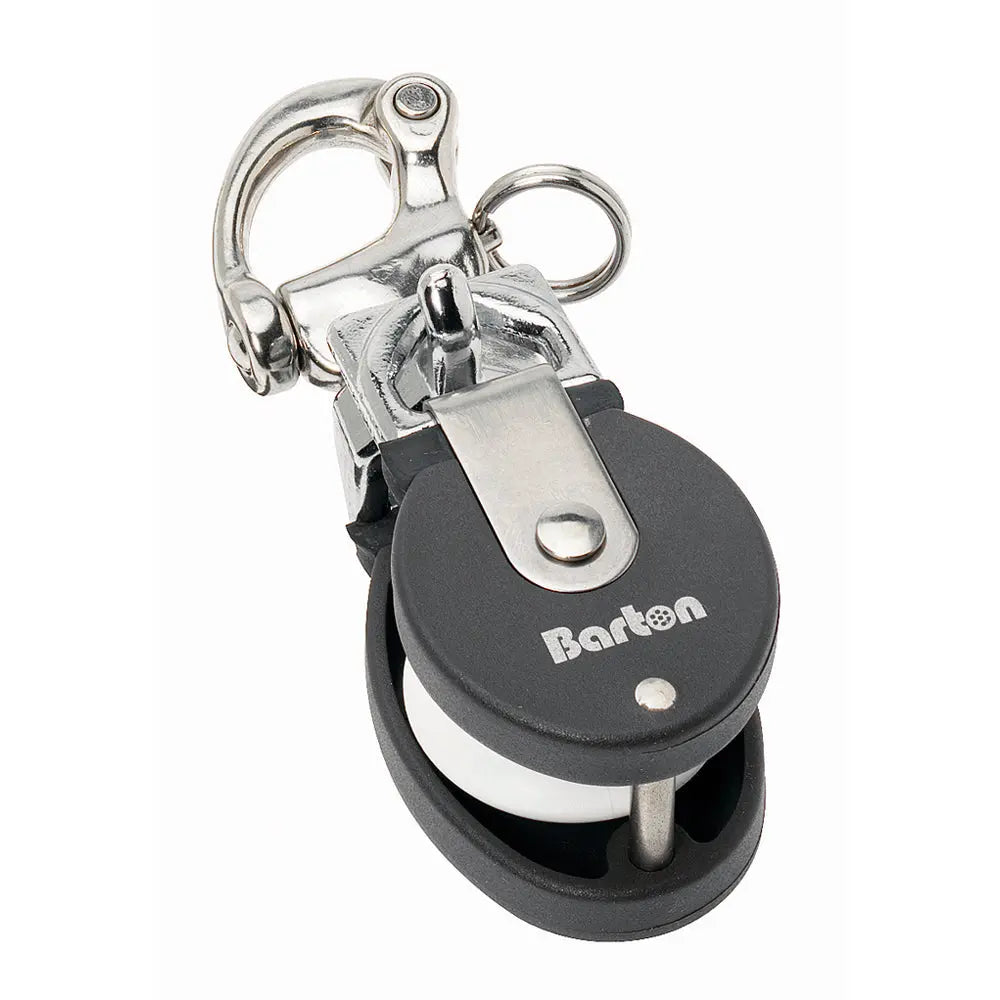

Size 2 Snatch Block with Stainless Snap Shackle - 35mm Sheave

Unique to Barton, these are probably the smallest block of this type available.

Important Note - Snatch Blocks

When using small and medium snatch blocks on a toe rail, a bungee line should be attached to the becket to prevent the block from 'tumbling' and causing damage by snagging.

Features:

• Extremely compact and strong
• A multitude of uses on cruising or racing yachts where a large unit is not required

Specifications:

• Sheave: 35mm (1.38")
• Sheave Width:17mm (0.67")
• Rope: 12mm (0.47")
• Break Load: 800kg (1,763.7lbs)
• SWL: 400kg (881.8lbs)
• Length: 110mm (4.33")
• Weight: 170g (0.37lbs)

The Barton Marine Size 2 Snatch Block with Stainless Snap Shackle is a compact yet robust sailing accessory designed for versatile use on both cruising and racing yachts. Featuring a durable stainless steel snap shackle, this 35mm sheave block offers a reliable solution for managing lines in tight spaces. Its small footprint makes it ideal for applications where space is limited, providing a practical option without sacrificing strength or functionality. The lightweight design ensures ease of handling while maintaining a break load of up to 1,763.7 pounds, giving confidence in heavy-duty use. Constructed for durability, the block’s sheave width is 0.67 inches, suitable for ropes up to 0.47 inches in diameter. The overall length of the unit is approximately 4.33 inches, and it weighs only 0.37 pounds, making it highly portable for onboard use.

Features:

• Compact and strong design suitable for tight spaces on yachts

• Stainless steel snap shackle for secure line attachment

• Sheave size of 35mm (1.38 inches) for versatile line handling

• Maximum rope diameter of 12mm (0.47 inches)

• Break load capacity of 800kg (1,763.7 pounds) for heavy-duty applications

• Safe working load of 400kg (881.8 pounds)

• Lightweight construction at approximately 6 ounces
