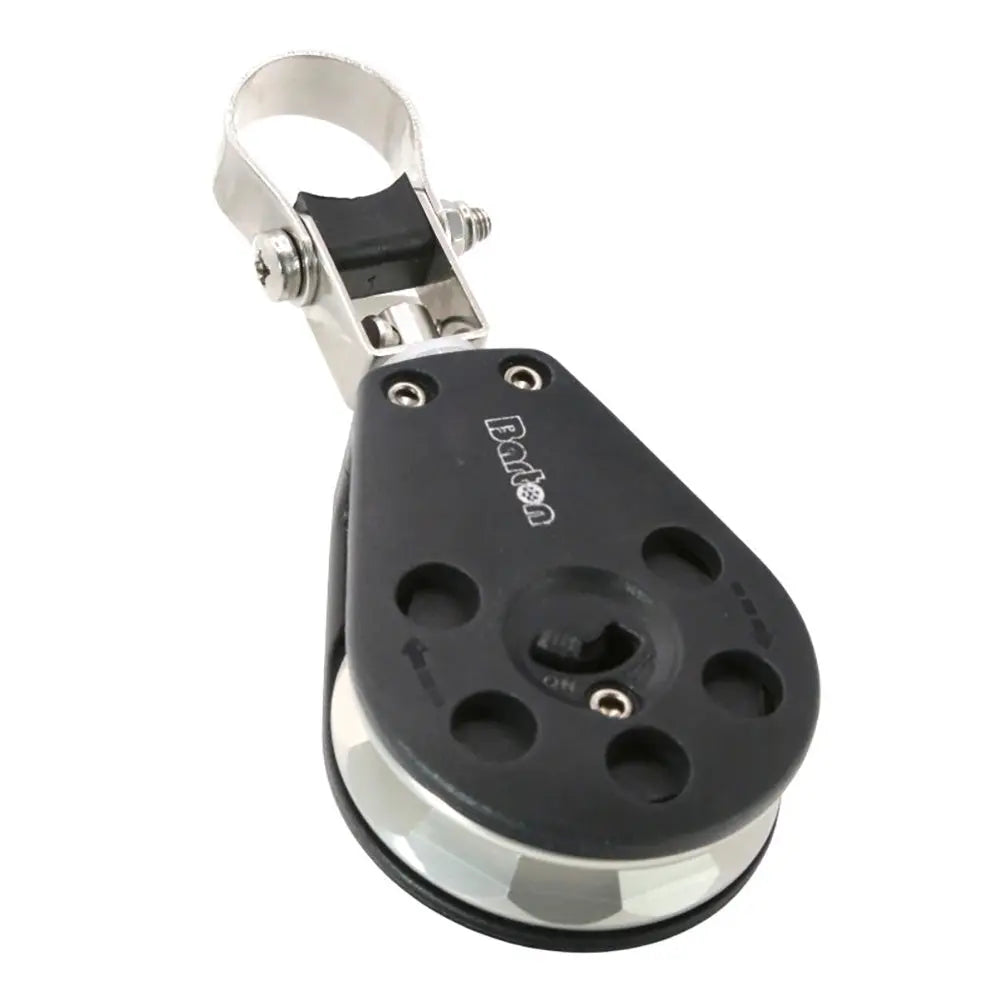

Barton Marine Stanchion Ratchet Block Part Number 60160 for Sailboat Furling Lines

Stanchion Ratchet Block

Controlling the Power in Furling lines!

This Stanchion Ratchet Block is ideal for removing some of the loadings for the crew when furling in the jib. The ratchet means that the sheave can be locked in place in one direction offering a friction brake against the pull of the sail. It is quick and simple to fit onto a standard 25mm (1) guard rail stanchion. Adjustment is easy with the stainless steel clamping ring which allows mounting of the block at any angle.

The Barton ball-bearing Ratchet Block is designed to be used online up to 10mm (3/8). The block is a high-performance 55mm (2 3/16) ratchet block and features a stainless-steel lever that locks the swivel head if desired.

Designed with ball bearings for low friction and longevity in harsh marine environments, the Ratchet Block body is manufactured from a composite of high-density nylon and glass fiber reinforced polymer with a high level of UV protection. Internal components are of marine grade 316 stainless steel and the 12-faced aluminum sheave is anodized in gunmetal silver.

Specifications:

• Length: 120mm/4-3/4
• Maximum Line: 10mm/3/8
• Width: 55mm/2-3/16
• Tube Size: 25mm/1

The Barton Marine Stanchion Ratchet Block is a high-performance marine accessory designed to ease the load during furling operations on sailboats. Crafted for durability and efficiency, this ratchet block allows sailors to control the tension on furling lines with minimal effort. Its robust construction and innovative features make it ideal for demanding marine environments, providing both safety and reliability during sail management.

Constructed with a lightweight body made from high-density nylon and glass fiber reinforced polymer, the block offers excellent resistance to UV rays and harsh weather conditions. The internal components are of marine-grade 316 stainless steel, ensuring longevity and corrosion resistance. The 12-faced aluminum sheave, anodized in gunmetal silver, not only adds to the aesthetic appeal but also enhances durability. Designed with ball bearings, the block provides low friction operation, facilitating smooth and efficient line handling. The stainless steel lever allows the user to lock the swivel head in place, giving additional control when needed.

This ratchet block is suitable for lines up to 10mm (3/8 inch) in diameter and features a 55mm (2 3/16 inch) sheave width. Its compact size and easy mounting system make it compatible with standard 25mm (1 inch) guard rail stanchions. The adjustable stainless steel clamping ring ensures quick and secure installation at any angle, providing versatility for various boat configurations. Whether used on cruising or racing yachts, the Barton Stanchion Ratchet Block enhances line control, reduces crew fatigue, and improves overall sail handling efficiency.

Designed to withstand the rigors of marine use, this ratchet block combines durability, ease of use, and reliable performance, making it an essential component for sailors looking to optimize their furling system and enhance safety onboard.

Features:

• High-strength composite body with UV protection for durability in marine environments

• Ball bearings for low friction and smooth operation

• Stainless steel lever for locking the swivel head in place

• Suitable for lines up to 10mm (3/8 inch)

• Designed to fit standard 25mm (1 inch) stanchion guard rails

• Adjustable stainless steel clamping ring for versatile mounting angles

• 12-faced anodized aluminum sheave for enhanced durability

• Corrosion-resistant internal components of marine-grade 316 stainless steel

• Compact design measuring approximately 4-3/4 inches in length

• Easy to install and operate, ideal for furling line control
