SKU:106997

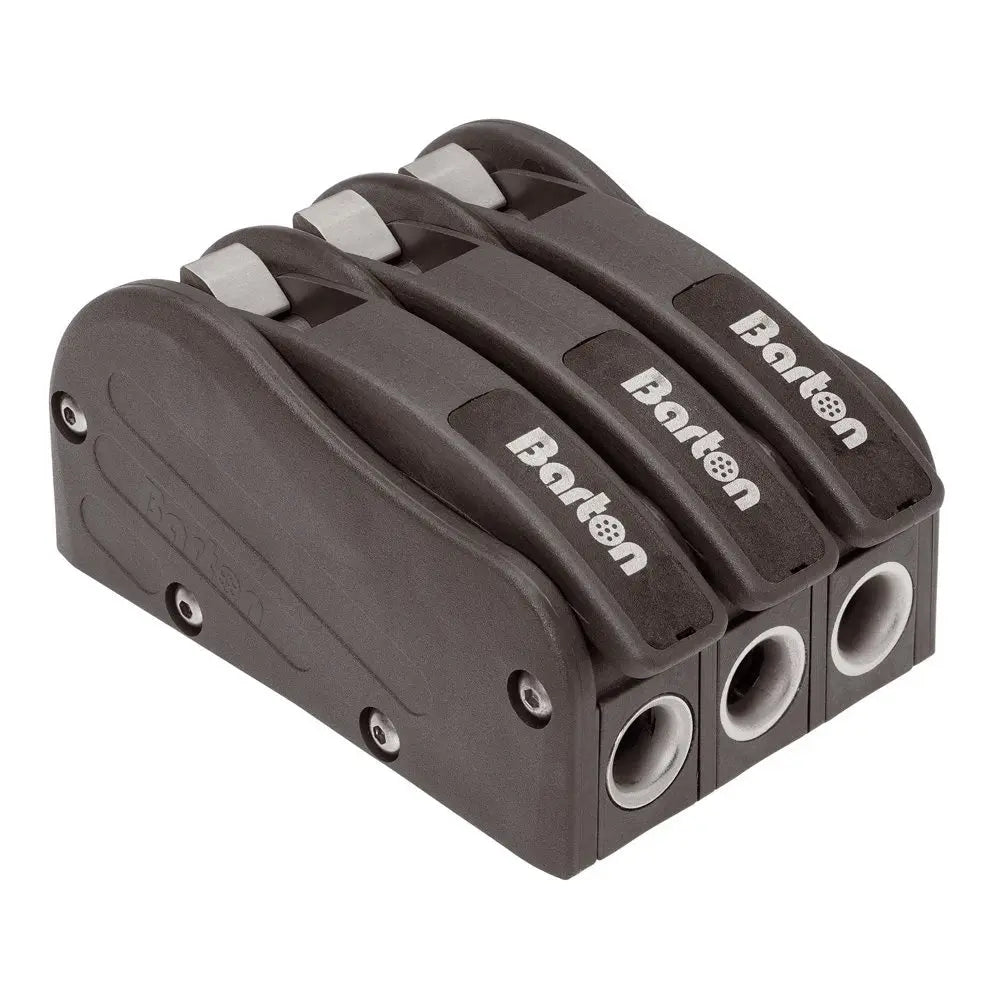

Triple DO 550 Rope Clutch
Modern, high-performance materials. Manufactured from modern lightweight materials, the DO 550 molded parts are from high-grade plastics that are strong, light, and impact-resistant. Cams and bases are from marine grade aluminum, anodized for long life in the harsh marine environment.
True clutch mechanism
This true clutch mechanism allows lines to be adjusted through the unit in the closed, locked position with minimal slippage. Release under load is positive and requires little effort. The mechanisms opening and closing action is precise and easy to operate, even with cold, wet hands. A positive handle lock in the closed position is also featured.
Kind to lines
The clutchs cam and base, manufactured from high grade extruded aluminium, feature a specially tempered tooth design which allows for maximum grip with minimal slippage, whilst being kind to your lines.Stainless steel rope fairleads are fitted to both line entry and exit points; a feature which helps to prevent wear to both clutch and lines.
Bolt-together construction for straightforward servicing
The DO 550 clutch range features the advantage of a bolt together construction which allows for ease of servicing and replacement of parts. A full range of components is available from our Barton stockist.
Important fitting notes: rope clutches
When fitting ensure a fair lead straight through the clutch to prevent wear to side plates and/or reducedload capabilities.For best performance site clutch approximately 1ft (300mm) forward of the winch to ensure a fair leadboth vertically and horizontally.Use Barton deck organisers forward of the clutch to gain perfect alignment.Always use a bolt-through fastening with a suitable sealant.A drilling template is provided on our packaging for your convenience.
Ergonomically designed handle
The handle is strong and easy to grip, with a positive smooth lock and unlock action.A unique feature of this new design is the removable insert on the top face of the handle.These inserts are available packaged separately with a selection for both cruising and racing yachts.
The Barton Marine Triple DO 550 Rope Clutch is engineered for high-performance sailing, offering reliable line control with minimal effort. Crafted from lightweight, durable materials, this clutch features high-grade plastics for impact resistance and marine-grade anodized aluminum cams and bases to withstand harsh marine environments. Its robust construction ensures longevity and dependable operation during demanding sailing conditions. The true clutch mechanism allows precise adjustment of lines even when in the locked position, providing sailors with confident control and quick release under load with minimal effort. The ergonomic handle, designed for a secure grip, includes a positive lock feature and a removable insert tailored for cruising or racing, enhancing user comfort and operational efficiency. Stainless steel fairleads at entry and exit points help prevent line wear, extending the clutch's lifespan and maintaining optimal line condition. The bolt-together design facilitates easy servicing and component replacement, supported by a comprehensive range of parts available from Barton Marine. Proper installation is critical; ensure a straight fair lead to avoid wear and position the clutch approximately 12 inches (300mm) ahead of the winch for best performance. Additional deck organizers can assist in achieving perfect alignment. Use a bolt-through fastening with suitable sealant, and utilize the provided drilling template for accurate installation. Overall, the Barton Triple DO 550 Rope Clutch delivers precise, reliable, and user-friendly line management, making it an ideal choice for both cruising and racing yachts seeking durable and efficient hardware.
