BEP 701 Mini Battery Switch 275 Amp Continuous

BEP 701 Mini Battery Switch 275 Amp Continuous

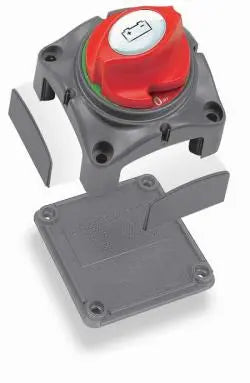

The 701 Contour Battery Master Switch offers a number of unique features. The highlights being the patented contour lock system, allowing it to be a stand alone unit, or locked together with other switches. The 701 also features a control knob which cannot be removed whilst in the ON or OFF position, however, can be removed by switching to an anti-clockwise 45° position. The control knob also features an interchangeable labelling system allowing a full range of applications. The 701 also features removable side plates on 4 sides for access of up to 1/0 cables plus a rear cover insulating the rear terminals against any short circuits. This ensures the switch meets ABYC requirements. The 701 can be either surface or recess mounted.

• Continuous Rating: 275 Amps DC
• Intermittent Rating: 455 Amps DC
• Cranking Rating: 1250 Amps DC
• Voltage Rating: 48 Volts DC
• Operation: On/Off
• Mounting: Recessed or Surface
• Ignition protected
• Termination Stud Size:
  2 x 10 mm (3/8 inch)
• Dimensions: 69 x 69 x 75h mm
  (2.75 x 2.75 x 3h inches)
• Tin plated copper studs and nuts
