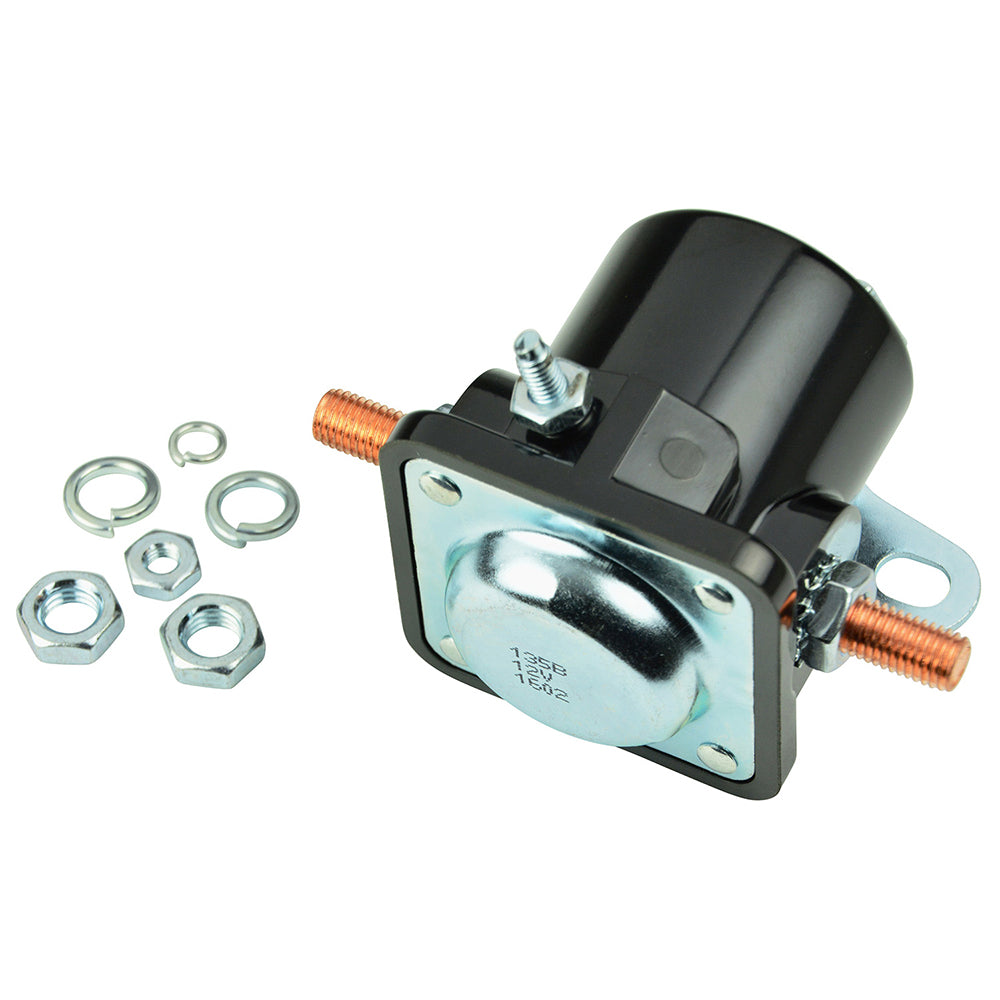

BEP Marine 100A Engine Starting Intermittent Duty Solenoid - Reliable High-Amperage Switching for Marine Engines

100A Engine Starting Intermittent Duty Solenoid

Intermittent switching of high amperage loads with a low amperage on-off switch.

Features:

• Rated at 750A make/100A break, this solenoid is for intermittent use only: 10 seconds ON, 20 minutes OFF (ideal for engine cranking)
• Signal voltage of 12V DC and contact voltage of 6-12V DC
• #10/32 thread signal terminals
• Copper 5/16-24 thread contact terminals
• Bracket mounting holes 5/16 x 19/32, 2-13/64 on center
• Same as Cole Hersee part number M-200

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The BEP Marine Part Number 1002206 is a high-quality 100A engine starting intermittent duty solenoid designed for demanding marine applications. This solenoid allows for the safe and efficient switching of high amperage loads with low amperage control signals, making it ideal for engine cranking and other intermittent high-current operations. Its robust construction ensures reliable performance during short, repetitive activation cycles, with a rated capacity of 750A make and 100A break, suitable for use with engine starters and similar equipment.
Built to operate with a signal voltage of 12V DC and contact voltage between 6-12V DC, this solenoid features #10/32 threaded signal terminals and copper 5/16-24 threaded contact terminals for secure electrical connections. The mounting bracket includes holes measuring 5/16 x 19/32 inches, with a center-to-center distance of approximately 2-13/64 inches, facilitating straightforward installation on a variety of marine engine setups. Its durable construction and precise specifications ensure consistent operation in the challenging marine environment, providing peace of mind during engine startup procedures.
Designed by BEP Marine, this solenoid is a direct replacement for Cole Hersee part number M-200. The product's compact dimensions and rugged build make it suitable for space-constrained applications, while its high current handling capability offers reliable performance during engine start-up processes. Please note that this product contains chemicals such as di(2-ethylhexyl)phthalate (DEHP), which may pose health risks; consult the provided warning and safety information before handling or installation.

Features:

• Rated at 750A make / 100A break, suitable for short-term engine cranking cycles

• Operates with 12V DC signal voltage and contact voltage of 6-12V DC

• Includes #10/32 threaded signal terminals for secure electrical connections

• Copper 5/16-24 threaded contact terminals for high-current reliability

• Bracket mounting holes measuring 5/16 x 19/32 inches, center-to-center spacing approximately 2-13/64 inches

• Designed as a direct replacement for Cole Hersee part number M-200, ensuring compatibility and ease of installation
