The MD range of battery switches allow you to install the battery switch very close to the battery, to remotely manage the increased electrical loads found on today's boats. This reduces cable lengths and sizes, providing significant savings in expense and weight of copper battery cable. They are ideal for remote isolation of bow and stern thrusters. The 720-MDO has been enhanced to offer easy standard installation, or advanced options capable of switching different voltage circuits from the main supply (for example: a 48 volt bow thruster with a 24 volt house supply). The optical sensor uses the same easy connection for standard installation and gives you the ability to control different voltage circuits such as 36 or 48 volts. It can be used to switch positive or negative lines and the main contacts can be isolated from the control circuit allowing operation via another battery source. This optical sensor also has low stand-by current draw (<5mA).
Remote operation
Battery switch can be mounted alongside battery, reducing cable lengths and cable sizes. (Large cost and weight saving in copper cables)
Reduced installation labor due to shorter battery cable runs
Manual override option to meet CE/ABYC requirements
LED status identification for remote control switch
Same capacities/specifications and mounting options as standard BEP battery switches
Uses interchangeable labeling system (Item # 713 or 715)
Specifications: LxWxH: 4" x 4" x 4.33" Rating (A DC) Cont: 500 Rating (A DC) Inter: 700 Rating (A DC) Crank: 2500 Voltage (V DC): 9.5-32 Function: On/Off Stud Size: 2x (1/2"/12mm)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

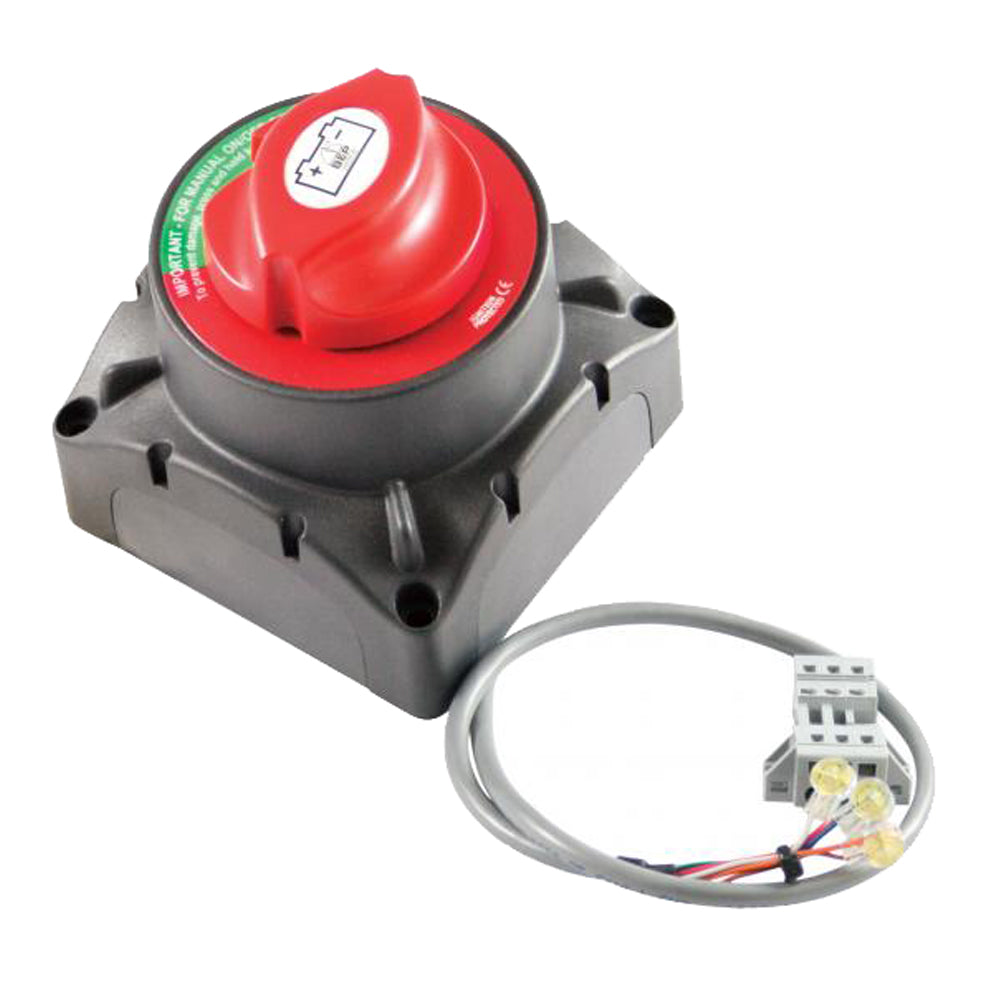

The BEP Marine 720-MDO remote operated battery switch with optical sensor is designed for seamless and efficient management of electrical loads on modern boats. With a rated capacity of 500 amps DC, this switch allows you to remotely control power to critical systems such as bow and stern thrusters, reducing the need for long cable runs and minimizing installation costs. Its compact 4-inch cube design makes it suitable for tight spaces while providing robust performance for both 12V and 24V systems. The switch features a user-friendly LED indicator for status updates and an optional manual override to meet safety standards like CE and ABYC. The optical sensor offers versatile control options, enabling switching of positive or negative lines and compatibility with different voltage circuits such as 36V or 48V, which is ideal for complex marine electrical setups. Its low standby current draw of less than 5mA ensures minimal battery drain during idle periods, enhancing system reliability and longevity. The switch's construction supports easy standard installation or advanced configurations, including switching circuits from different main supplies, making it an adaptable solution for a variety of marine applications. Designed with interchangeable labeling options, the BEP 720-MDO ensures clear identification for easy operation and maintenance. Its durable stud connections and compact form factor make it a practical choice for boatbuilders and marine electricians seeking a reliable, space-saving, and remotely controllable battery switching solution.
Features:
Remote operation for convenient control from a distance
Compact 4-inch cube design for easy installation in tight spaces
High current capacity of 500 amps DC continuous rating
Optical sensor for versatile switching of different voltage circuits
Supports switching of positive or negative lines
Low standby current draw (<5mA) to conserve battery life
Manual override option to meet safety standards
LED status indicators for remote operation monitoring
Compatible with standard BEP mounting options and interchangeable labels
