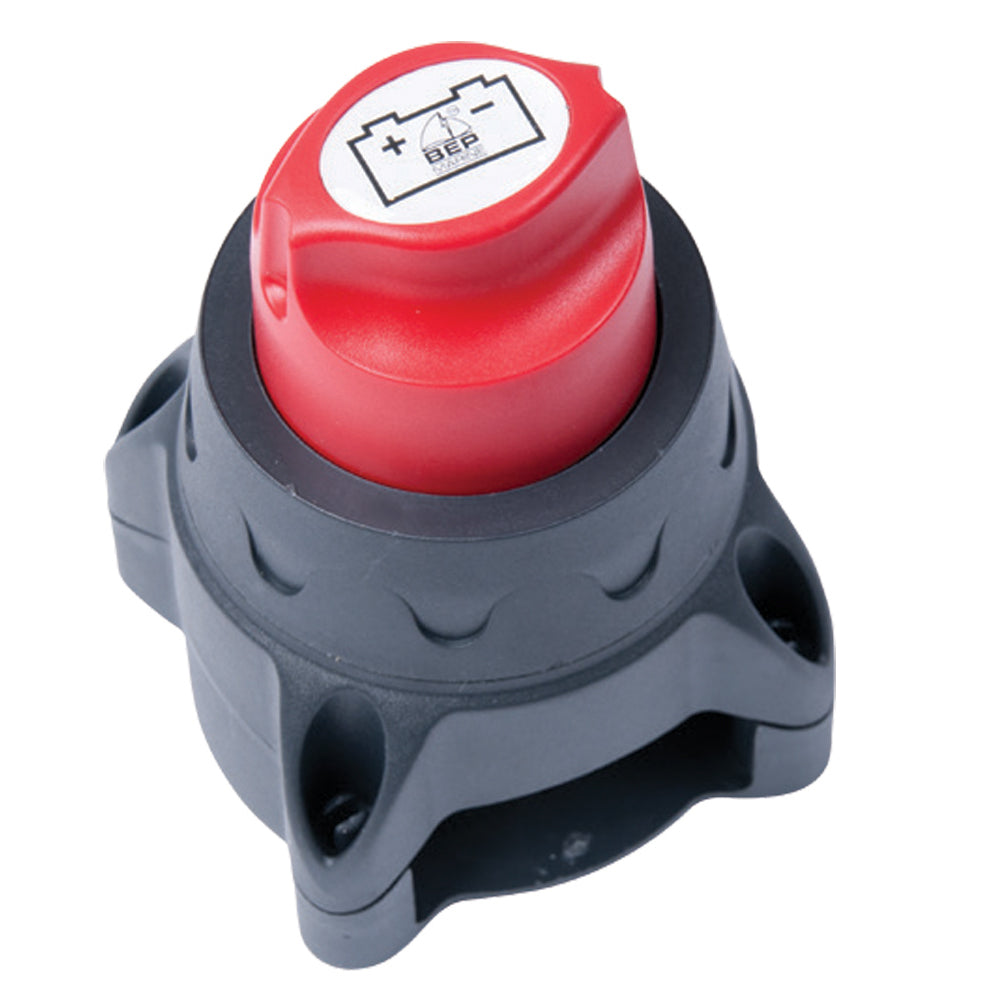

BEP Marine Easy Fit Battery Switch - 275A Continuous

Easy Fit Battery Switch - 275A Continuous

The Easyfit Battery Switch was created for installations where switches need to be recessed through varying thicknesses of panels. It achieves this through an easily removable threaded ring that allows for panel thicknesses up to 3/4" (19 mm). This switch uses the same features as the 701 with the removable key 45 degree past the off position, labeled handle and a removable back cover covering exposed terminals to meet ABYC specifications. It can also be surface mounted offering a unique style compared to other switches available on the market. BEP Marine Battery Switch Test Procedures (UL 1107) Continuous (1 hour), intermittent (5 minutes) and Cranking (engine starting - 10 seconds). The test is to determine the maximum current the switch can handle for the stated time, without the rear terminals exceeding 100 deg C (212 deg F) above the ambient temperature. The continuous and intermittent ratings are tested at 110% of specified ratings. All BEP switches are tested Independently to this specification by a 3rd party laboratory.

Features:

• Can easily be retro-fitted in place of most European post and lever type switches

• Molded in high temperature, fiber reinforced plastics

• Tin-plated copper studs and nuts

• Ignition-protected

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The BEP Marine Easy Fit Battery Switch (Part Number: 700) offers a reliable and versatile solution for marine electrical systems requiring a high-capacity switch. Designed for easy installation, this switch features a removable threaded ring that accommodates panel thicknesses up to 3/4 inch (19 mm), allowing seamless integration into various vessel configurations. Its recessed design ensures a clean appearance while providing durability in demanding marine environments. This switch shares features with the popular 701 model, including a removable key that passes 45 degrees past the off position, a clearly labeled handle, and a removable back cover that protects exposed terminals to meet ABYC safety standards. Additionally, it can be surface-mounted, offering flexibility for different installation preferences. The switch has undergone rigorous testing in accordance with UL 1107 standards, including continuous, intermittent, and cranking test procedures, to verify its capacity to handle high current loads safely without overheating or failure. The ratings are tested at 110% of the specified current, ensuring robust performance under demanding conditions. Constructed from high-temperature, fiber-reinforced plastics, the switch is molded for enhanced durability and resistance to harsh marine environments. The tin-plated copper studs and nuts facilitate secure connections, while the ignition-protected design adds an extra layer of safety during operation. Suitable for a variety of applications, the BEP Marine Easy Fit Battery Switch combines ease of installation, safety, and durability to meet the needs of boat owners and marine technicians alike. Note that this product has been independently tested to meet stringent safety standards, ensuring reliable performance during critical operations.

Features:

• Can easily be retro-fitted in place of most European post and lever type switches

• Molded in high-temperature, fiber-reinforced plastics

• Tin-plated copper studs and nuts

• Ignition-protected
