SKU:58649

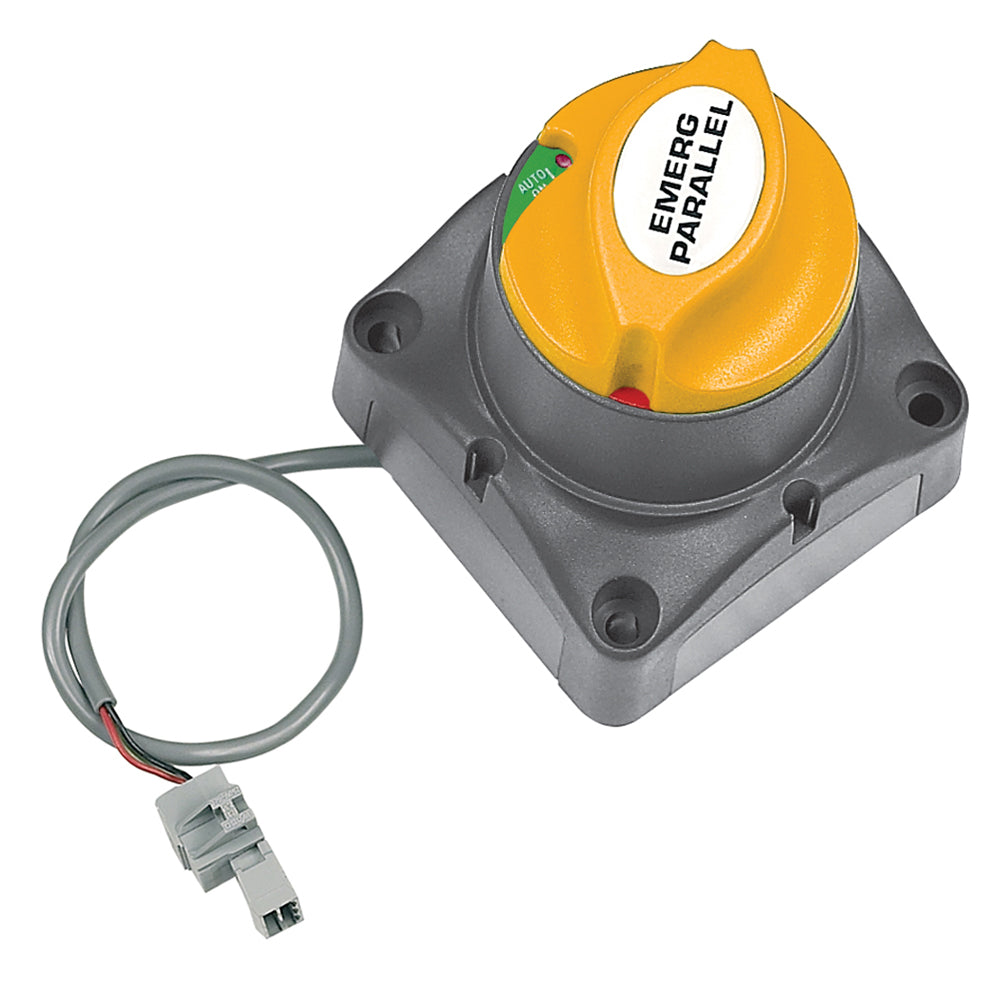

Emergency Parallel Switch - 12/24V - 275A
This Motorized Switch offers remotely activated, high current, emergency parallel connection suitable for emergency starting of large engines (up to 2500A for 10 seconds).
The emergency parallel functionality is conveniently operated via a momentary button on the dash, which when activated, will parallel the batteries for 10 minutes. Once the 10 minutes has passed, the switch turns off, removing the risk of start batteries becoming flattened following a parallel switch being inadvertently left on.
Designed and constructed for the harsh marine environment, utilizing tinned copper conductors, stainless steel nuts, and high temperature, fiber reinforced plastics to ensure longevity. The units are ignition protected, provide On/Off switching operation, and may be recessed or surface mounted.
Features:
Technical Specifications:
In the Box:
*Sold as an Individual
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The BEP Marine Emergency Parallel Switch part number 80-701-0018-00 is a robust solution designed for marine applications requiring high-current emergency battery connections. This motorized switch allows for remotely activating a parallel connection between two battery banks operating at 12 or 24 volts, provided both banks are of the same voltage. With a current rating of 275 amps, it is suitable for emergency starting large engines, capable of delivering up to 2500 amps for 10 seconds. This feature ensures reliable engine starts in critical situations, enhancing safety and operational efficiency on boats and marine vessels.
Constructed to withstand the demanding marine environment, the BEP Emergency Parallel Switch utilizes tinned copper conductors, stainless steel nuts, and high-temperature fiber-reinforced plastics, ensuring durability and corrosion resistance. The switch is ignition protected and offers flexible mounting options, including recessed or surface mounting, making installation adaptable to various vessel configurations. Its design includes an On/Off switch for manual operation, providing redundancy and additional control during emergency procedures. The device's operation is straightforward, activated via a momentary button on the dashboard, which engages the batteries in parallel for a set duration of 10 minutes. After this period, the switch automatically turns off, preventing accidental battery drain and ensuring safety.
Ideal for marine environments where safety and reliability are paramount, this switch's compact dimensions make it easy to install in tight spaces. It includes a comprehensive instruction manual and is sold as an individual unit. Please note, this product contains chemicals known to cause reproductive harm, and proper handling precautions are advised. The BEP Marine Emergency Parallel Switch provides a dependable, high-current solution for emergency battery management, ensuring your vessel is prepared for critical situations with minimal hassle and maximum safety.
Features:
