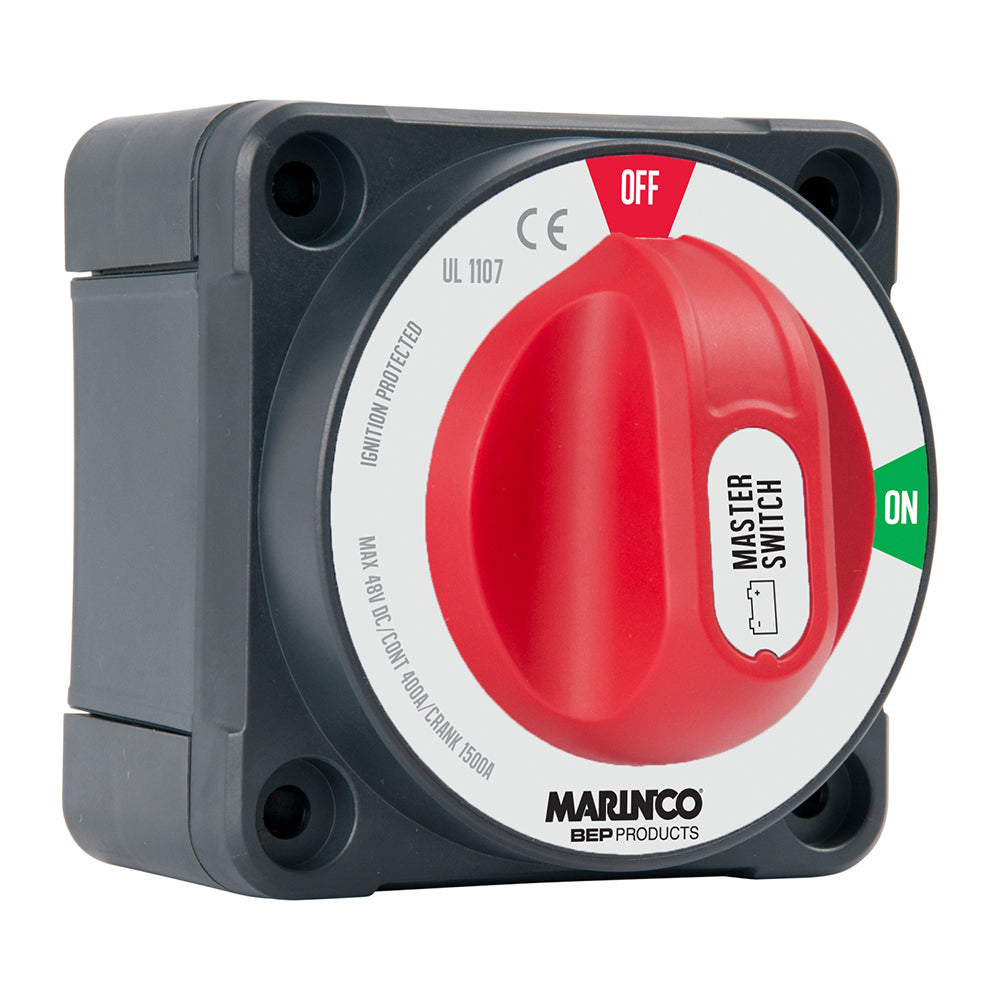

BEP Marine Pro Installer 400A Double Pole Battery Switch MC10 for Marine and RV Applications

Pro Installer 400A Double Pole Battery Switch - MC10

A powerful new generation battery switch with outstanding performance and features for both the installer and end user. Three mounting options: surface, rear panel, and front panel mounting, plus optimized cable access makes installation a breeze. Pro Installer switches set the new benchmark with outstanding ergonomics, intuitive look/feel, and are engineered from the finest materials to withstand the harsh marine environment. Same industry standard mounting with On/Off operation. Used where positive and negative supplies must be isolated at the same time. SAFETY NOTE: BEP does not recommend this for switching house and start battery systems at the same time, for safety reasons. You may need to isolate your engine battery in an emergency, but not your house battery which typically powers the communications

Specifications
Mounting: Surface, Rear or Front
Voltage: 48v DC (for 12-48v systems)
Rating: 400 Cont / 600 Inter / 1500 Crank
Dims: 3.85" x 3.85" x 3.62"
Operation: On/Off
Stud: 4x 10 mm (3.8")

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The BEP Marine Pro Installer 400A Double Pole Battery Switch MC10 is a high-performance switching solution designed for demanding marine and RV environments. Crafted from durable materials, this switch offers reliable performance with three versatile mounting options: surface, rear panel, and front panel, along with optimized cable access for straightforward installation. Its ergonomic design ensures intuitive operation, featuring industry-standard On/Off functionality to safely isolate both positive and negative power supplies simultaneously. Suitable for systems up to 48V DC, the MC10 switch is rated for 400 continuous amps, 600 intermittent amps, and 1500 cranking amps, making it an ideal choice for engine and battery management where secure disconnection is essential. The device's compact dimensions facilitate installation in tight spaces without compromising performance or accessibility, with four 10 mm studs providing robust terminal connections. The switch's engineering emphasizes safety and durability, capable of withstanding harsh marine conditions while maintaining consistent operation. Please note, BEP does not recommend using this switch to simultaneously switch house and start batteries for safety reasons, but it is suitable for emergency engine battery isolation. For detailed installation and safety instructions, consult the owner's manual available online.

Features:

• Multiple mounting options: surface, rear panel, and front panel for flexible installation

• Optimized cable access for easy wiring and maintenance

• Industry-standard On/Off operation for positive and negative terminals

• High current ratings: 400A continuous, 600A intermittent, 1500A cranking

• Designed to withstand harsh marine environments with durable construction

• Compact size with four 10 mm terminal studs for secure connections

• Suitable for systems up to 48V DC, ideal for marine and RV applications

• Certified safety with clear warning regarding chemical exposure
