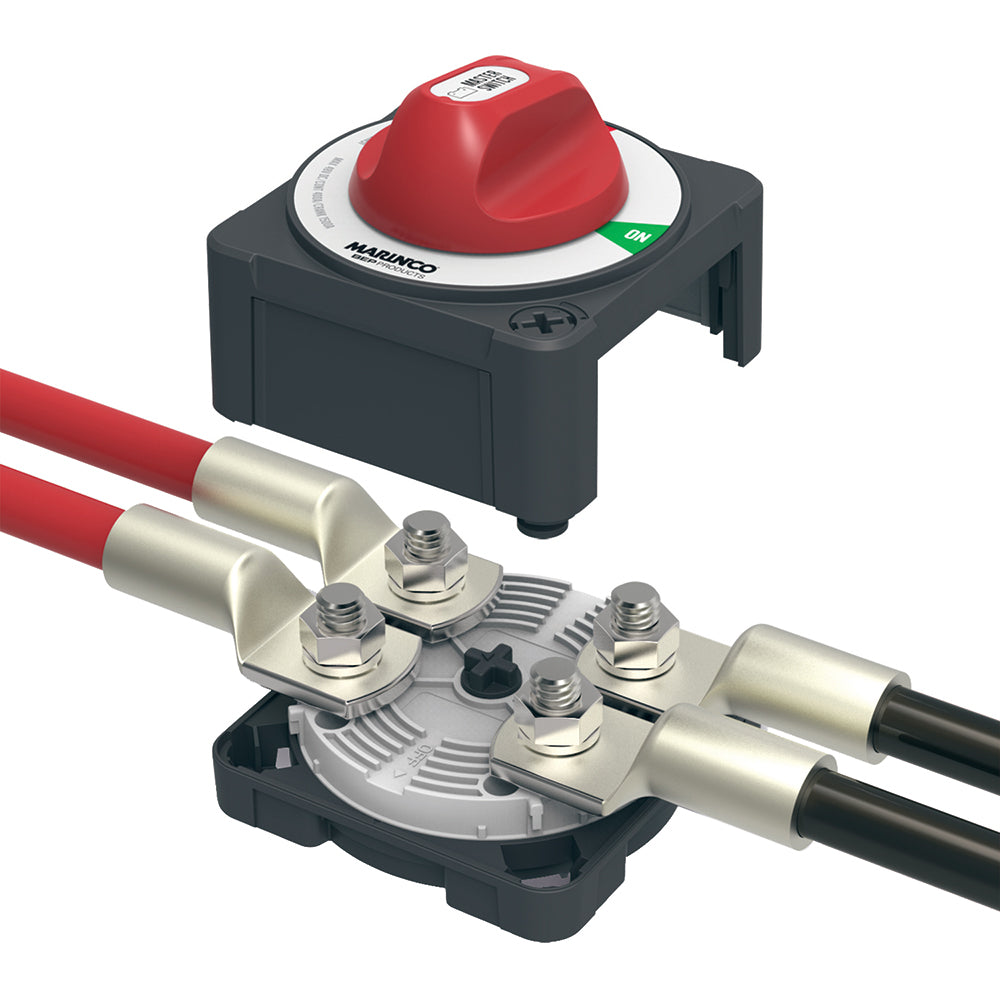

Pro Installer 400A EZ-Mount Double Pole Battery Switch - MC10An addition to our multi award winning Pro Installer EZ Mount range, this battery switch provides Double Pole On/Off functionality so that both positive and negative battery terminals can be isolated. Most commonly used on metal hulled craft, full isolation ensures there is no risk of stray currents that may cause galvanic corrosion, and also guarantees optimum safety during servicing or mishap, for example with mining equipment. As easy as 1, 2, 3, these revolutionary battery switches allow you to wire from the front for the easiest surface mounting. With their shared interconnection height, EZ-Mount battery switches "cluster" directly with the Pro Installer Busbar Range, resulting in the fastest, most compact installations. Optimized cable access makes installation a breeze.
Features:
- Tested to UL1107 ignition protection, CE
- Tinned copper 10 mm (3/8 in) studs
- Stainless steel washers and nuts
- Fiber reinforced plastics
- 400A Continuous / 600A 5 minutes Intermittent / 1500A 10 seconds Cranking
- (cable size to achieve ratings 120mm}, 4/0, smaller cable size will reduce
- the Amp rating)
- Waterproof to IP67
- Same interconnection height as Pro Installer
- Removable knob allows isolation during servicing

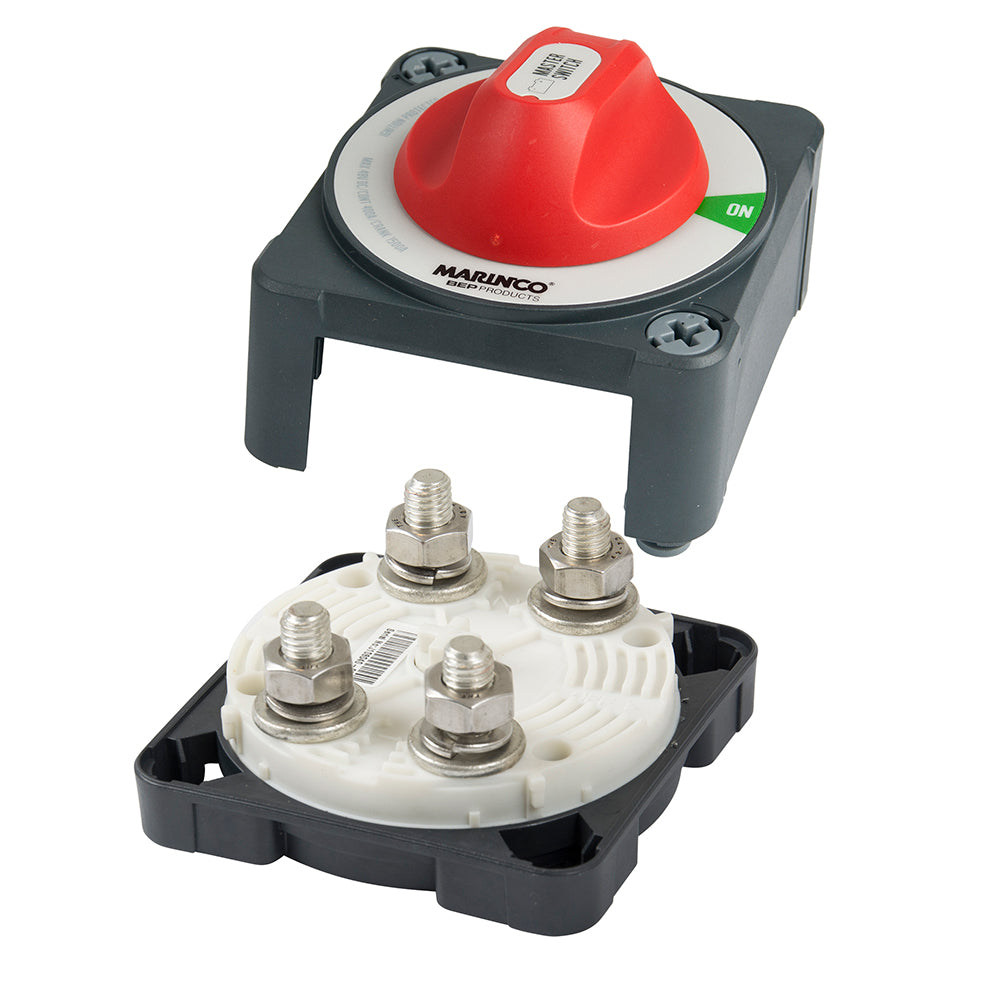

- 3 removable side plates for protection
- Industry standard 3.85 x 3.85 inch footprint
- Surface mount only
- Each Pro Installer battery switch is fully tested for pressure sealing,
- Rotation force and electrically load tested
SpecificationsMounting: Surface Only
Voltage: 48v DC (for 12-48v systems)
Rating: 400 Cont / 600 Inter / 1500 Crank
Dims: 3.85" x 3.85" x 3.62"
Operation: On/Off
Stud: 4x 10 mm (3.8")
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The BEP Marine Pro Installer MC10 is a high-performance double pole battery switch designed for reliable isolation in marine and industrial applications. This switch features a user-friendly surface mount design that allows for quick and easy installation, making it ideal for metal-hulled boats, mining equipment, and other demanding environments. Its innovative EZ-Mount system ensures that wiring from the front is straightforward, and the shared interconnection height allows the switch to cluster seamlessly with the BEP Pro Installer Busbar Range for a compact, efficient setup. Constructed with durable fiber-reinforced plastics and stainless steel hardware, the MC10 is built to withstand harsh conditions while providing optimal safety during maintenance or emergency situations.
Features:
- UL1107 ignition protection tested for enhanced safety
- Tinned copper studs measuring 10 mm (3/8 inch) for secure connections
- Includes stainless steel washers and nuts for corrosion resistance
- Waterproof design rated IP67 for reliable operation in wet environments
- Handles continuous current of 400A, with 600A for 5-minute intermittent and 1500A for 10 seconds cranking
- Designed for 48V DC systems, suitable for 12-48V applications
- Removable knob allows for isolation during servicing
- Three removable side plates provide additional protection
- Industry-standard footprint of 3.85 x 3.85 inches for compatibility
- Pressure-sealed, electrically load tested, and tested for rotation force for durability
