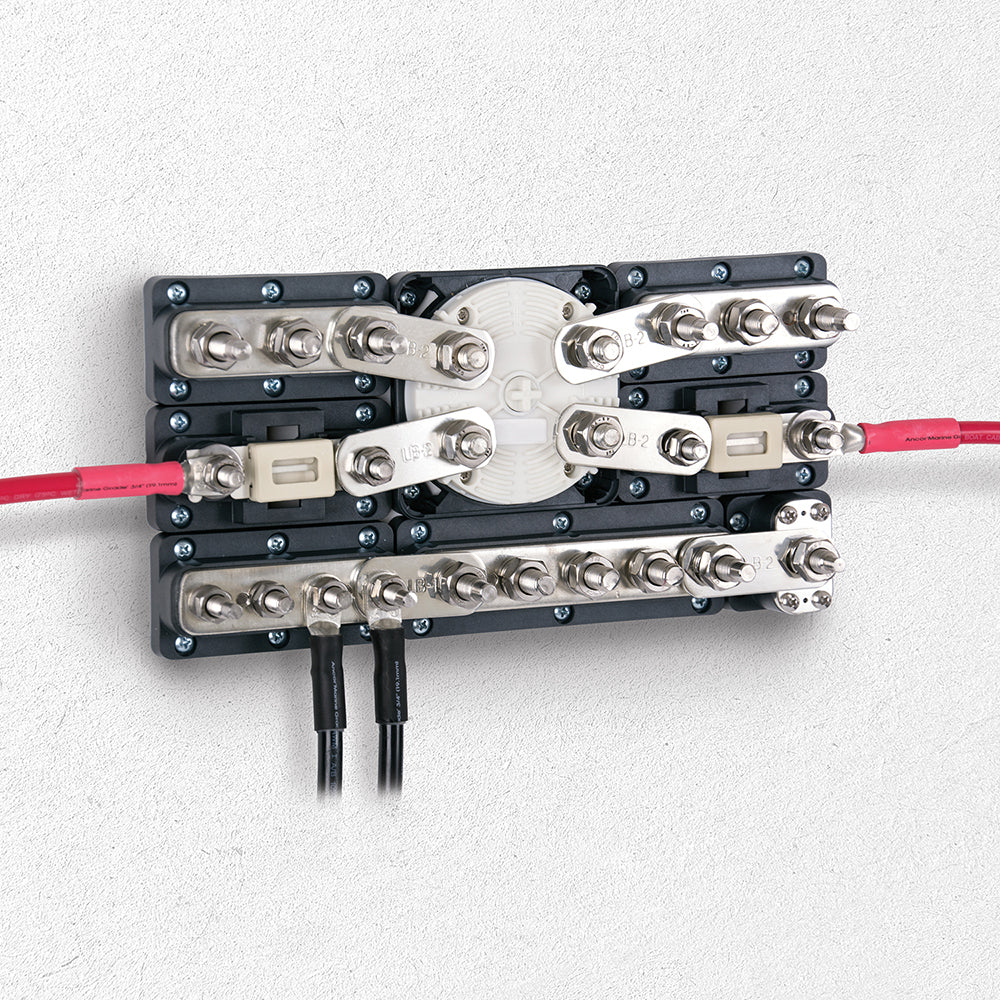

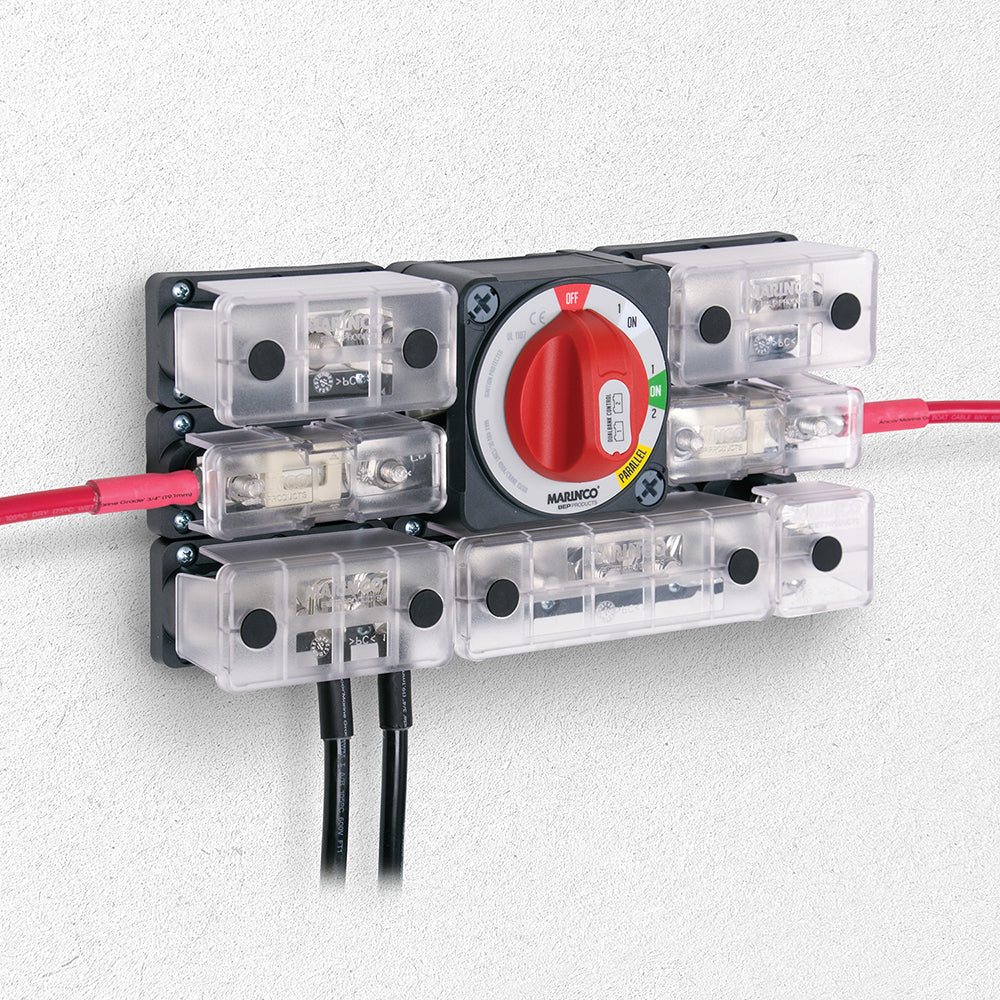

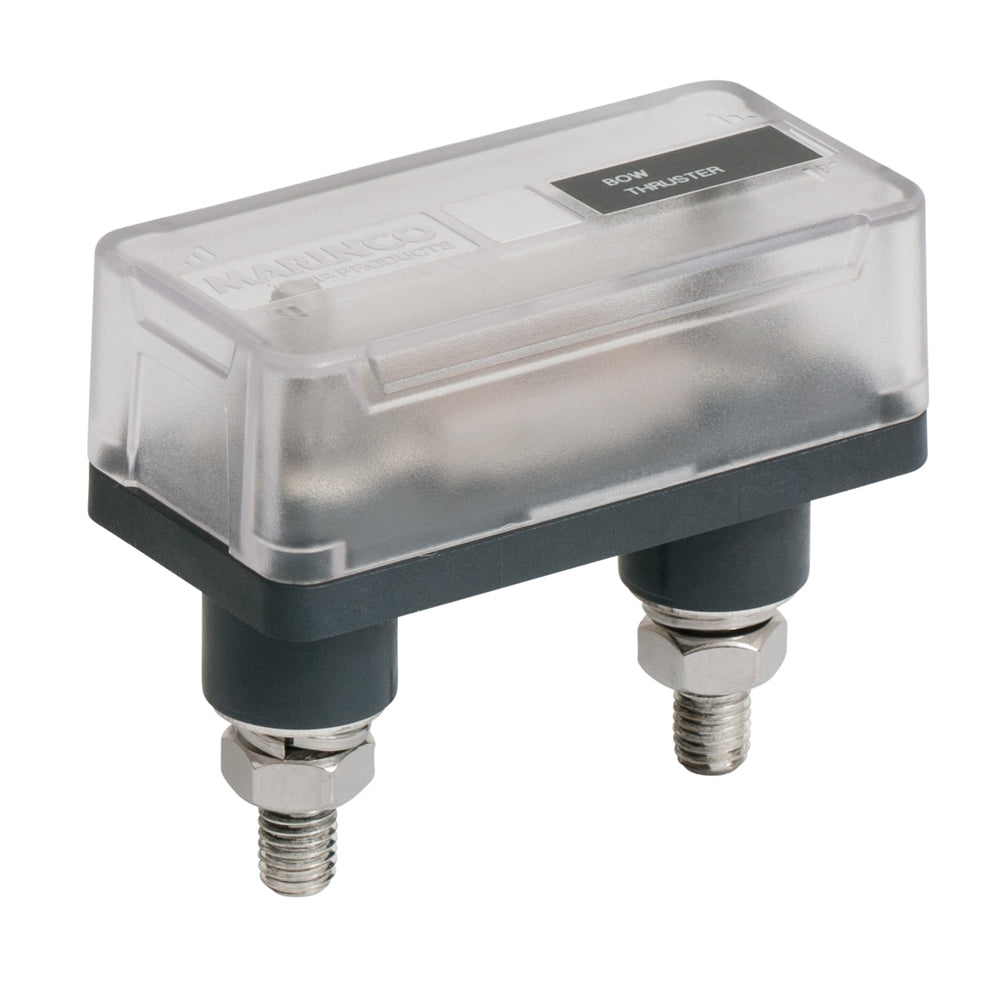

ANL Through Panel Fuse Holder, 500AThis innovative, through-panel mounting fuse holder (Patent Pending) offers the user easy visual inspection of fuse state, and easy/safe access to change fuses if blown. It provides high-capacity fusing, fast response, high interrupt ratings (up to 3,000 Amps DC), and is ideal for protecting today's demanding onboard power electronics technology including inverters and battery chargers. It can also protect wiring from short circuits, for example as a main fuse to protect house circuits, protection for digital switching main feed circuits, or heavy duty loads.
- Convenient fuse inspection and replacement
- Compact footprint saves space
- Radiused connection points improve cable routing options (back-to-back lugs fit at any angle -90' to +90')
- Innovative clear cover provides insulation/protection
- Fuse viewing "window" in cover aids visual inspection of fuse state
- Label recess on cover allows fitting up to +" width (12.7mm) printed labels from handheld label printers
- Insert moulded studs offer superior mechanical strength
- Designed for the harsh marine environment
- Studs have anti-seize lubrication applied to prevent thread galling
- Cable connection studs: 10mm (3/8")
- Fuse mounting studs: 8mm (5/16"). Also allows 10mm (3/8") fuses to be used
- Fuse type: ANL or ANN (very fast acting)
- Amperage: 35-500A
- 50 VDC, or determined by fuse fitted (if lower)
- High temperature, fibre reinforced plastic base provides strength and chemical resistance
- Clear polycarbonate cover
- Tinned CDA260 highly conductive brass for improved strength on integral studs, stainless steel nuts and washers for longevity in the marine environment
- All threads are metric
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The BEP Marine Pro Installer ANL Through Panel Fuse Holder (Part Number: 778-ANLTP) is designed for high-capacity electrical protection in demanding marine and industrial applications. With a maximum current rating of 500 amps, this fuse holder provides reliable, fast-acting circuit protection for onboard power electronics such as inverters, battery chargers, and other high-current devices. Its innovative through-panel mounting design ensures easy visual inspection of fuse status, enabling quick assessments and safe fuse replacements without dismantling equipment.
Constructed from high-temperature, fiber-reinforced plastic, the fuse holder offers excellent strength and chemical resistance, making it suitable for harsh marine environments. The clear polycarbonate cover not only insulates but also provides protection against accidental contact, while the fuse viewing window allows for simple visual checks. The integrated label recess accommodates up to 0.5-inch labels, facilitating clear identification of circuits or fuse ratings.
The fuse holder features radiused connection points that improve cable routing flexibility, with back-to-back lugs that fit at any angle from -90° to +90°. The tinned CDA260 brass studs ensure optimal conductivity and mechanical strength, with stainless steel nuts and washers designed for longevity in corrosive environments. The device supports fuse types ANL or ANN, with a voltage rating of 50 VDC or lower depending on the fuse used. Its compact footprint makes it suitable for space-constrained applications, and the metric threads ensure compatibility with a wide range of wiring standards.
Overall, the BEP Marine ANL Through Panel Fuse Holder combines high performance, durability, and ease of use, making it an essential component for protecting high-current circuits in marine, RV, and industrial systems.
Features:
- Convenient fuse inspection and replacement with a viewing window
- Compact design saves valuable space in panel installations
- Radiused connection points enhance cable routing flexibility
- Clear polycarbonate cover provides insulation and protection
- Label recess supports up to 0.5-inch printed labels for easy identification
- Insert molded studs offer superior mechanical strength and durability
- Designed for harsh marine environments with corrosion-resistant materials
- Studs are lubricated with anti-seize to prevent thread galling
- Cable connection studs are 10mm (3/8 inch), fuse mounting studs are 8mm (5/16 inch), supports up to 10mm fuses
- Supports ANL or ANN fuse types, with amperage ratings from 35 to 500 amps
- Voltage rating of 50 VDC or lower depending on fuse specifications
- High-temperature fiber-reinforced plastic base provides strength and chemical resistance
- Tinned CDA260 brass studs for improved conductivity and mechanical strength
- Stainless steel nuts and washers ensure longevity in corrosive environments
- Designed with metric threads for compatibility with standard wiring systems
