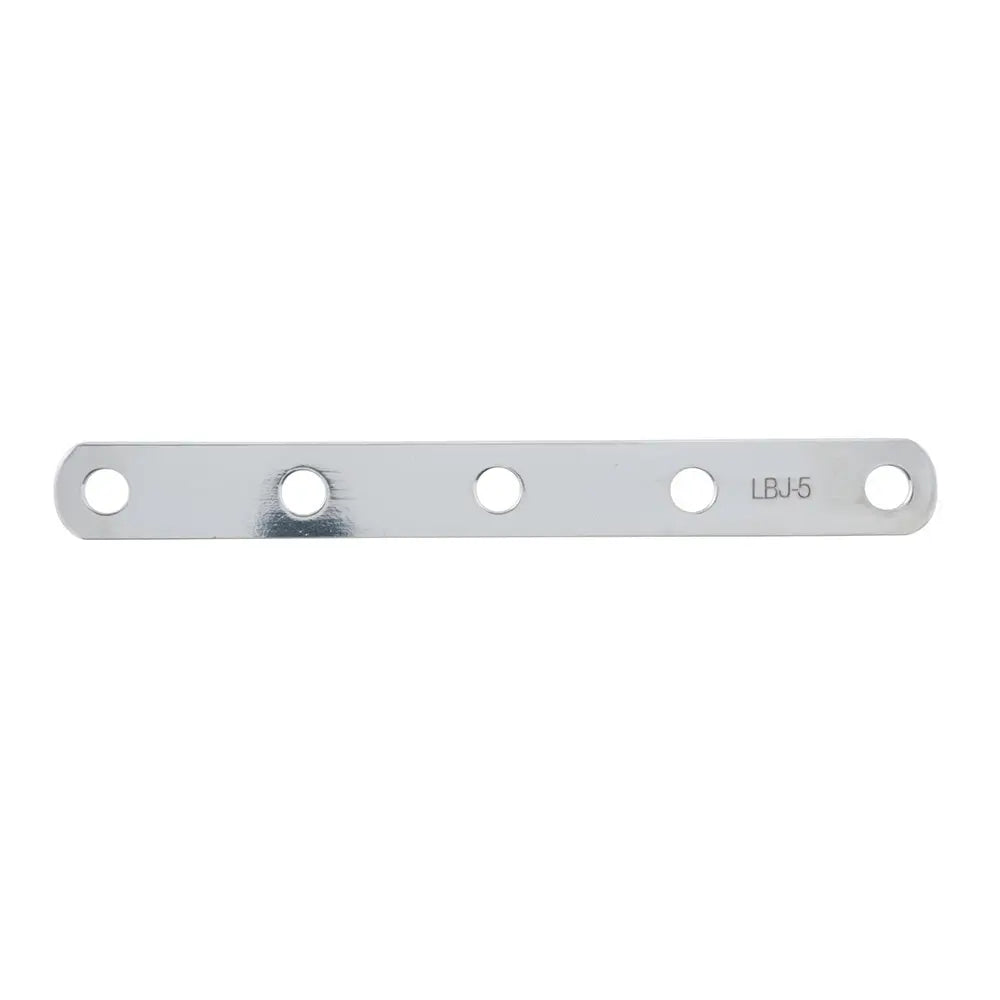

BEP Marine Pro Installer Link Joiner 5-Way for High-Amperage DC Connections

Pro Installer Link Joiner 5-Way

This tin-plated bus bar can be used to link 5 adjacent DC products together. The rating varies from 400-650 Amps, depending on how this busbar is wired. Made from tin-plated high-purity copper, this bar is intended for use with the BEP Pro Installer system, but it has universal applications anywhere a high amperage link bus is needed. Pro Installer link bars provide the fastest and most economical way of connecting the Pro Installer line of products to save space and allow for the most compact installations. The common interconnection height of Pro Installer components allows link bars to quickly and easily convert a group of different products into a functional cluster. Links can be doubled to accommodate higher loads.

Features:

• Tin-plated high-purity copper for maximum conductivity and corrosion resistance
• 650 AMP continuous rating between two adjacent positions
• 400 AMP continuous rating across all positions
• Bars can be doubled up for additional amperage
• This link bar is intended to be used with 3/8 studs
• Hole spacing is 2
• Overall dimensions 8.8 x 1

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The BEP Marine Pro Installer Link Joiner 5-Way is engineered for reliable high-current connections in DC systems. Crafted from tin-plated high-purity copper, this bus bar offers excellent conductivity and corrosion resistance to ensure long-term performance. Designed to link five adjacent DC products, it provides a seamless and efficient method to expand your power distribution setup. The link bar supports continuous ratings up to 650 amps between two connected positions and 400 amps across all five positions, making it suitable for demanding electrical configurations. Its universal design allows for versatile applications beyond the BEP Pro Installer system, accommodating any high-amperage linking needs in marine or industrial environments. The link bars are easy to install, featuring 3/8-inch studs and a hole spacing of 2 inches, enabling quick assembly and adaptation to various layouts. Doubling up bars can increase the amperage capacity, providing flexibility for higher load requirements. Overall, this compact and robust link bar simplifies complex wiring arrangements, saving space and streamlining your electrical system integration. Whether you're upgrading existing setups or designing new systems, the BEP Marine Pro Installer Link Joiner 5-Way offers a safe, efficient, and durable solution for high-current DC connections in demanding applications.

Features:

• Tin-plated high-purity copper for maximum conductivity and corrosion resistance

• 650 Amp continuous rating between two adjacent positions

• 400 Amp continuous rating across all positions

• Bars can be doubled up for additional amperage

• Intended for use with 3/8-inch studs

• Hole spacing of 2 inches

• Compact overall dimensions for space-saving installations
